ABS (Anti-Lock Brake System)

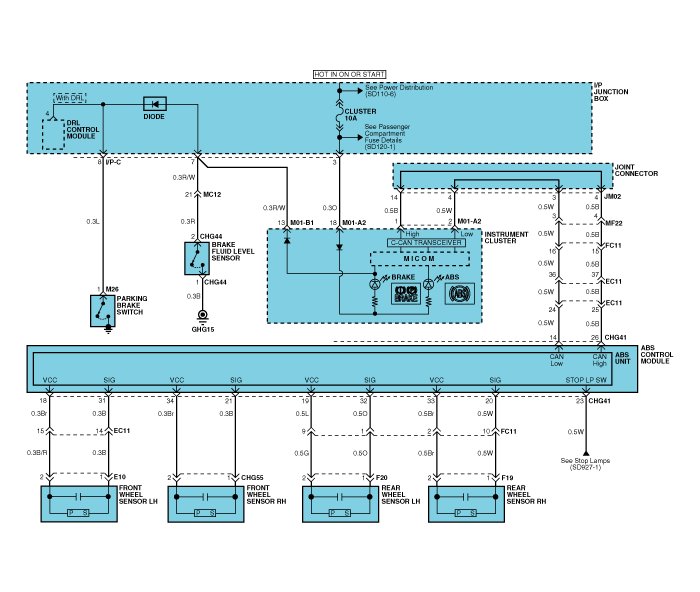

Circuit Diagram - ABS(1)

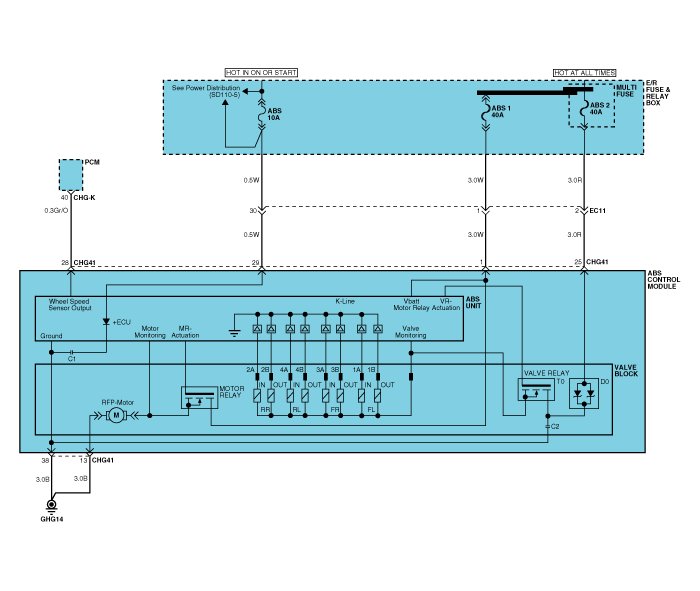

Circuit Diagram - ABS(2)





ABS connector input/output
