Home >> Kia >> 2011 >> Sorento Base, Standard >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 4 (Automatic Transaxle Control System - 2.4L) >> Shift Lever >> Components and Components Location >> Components

Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

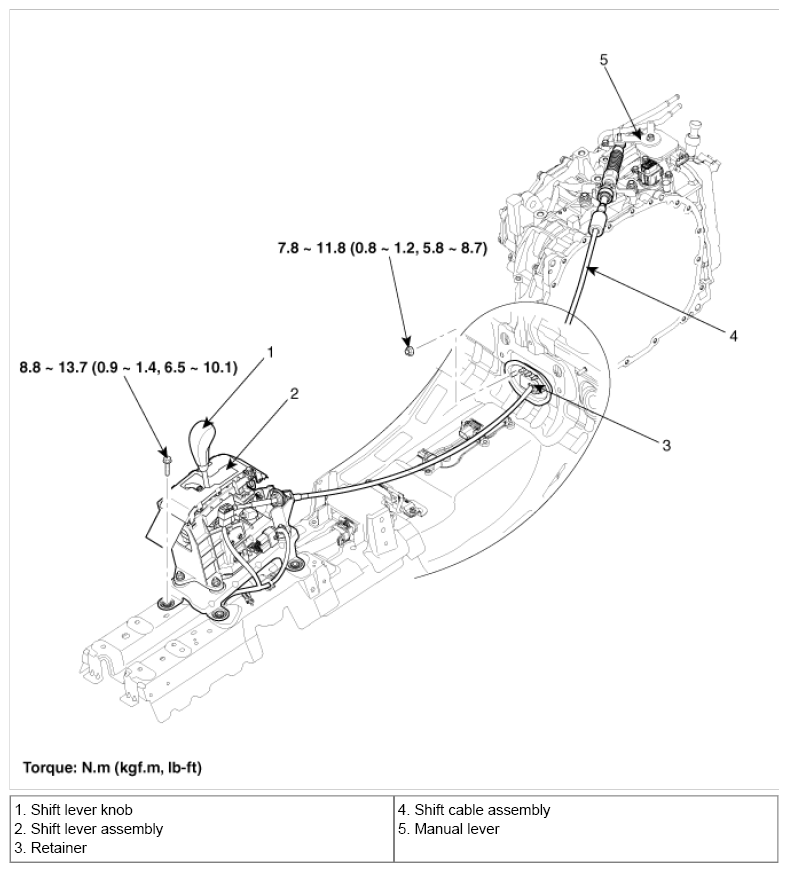

Fig 1: Exploded View Of Shift Lever With Torque Specifications
G07415623Courtesy of KIA MOTORS AMERICA, INC.
