Repair procedures: Installation

CAUTION: After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.

Power steering fluid replacement and air bleeding (Refer to "GENERAL INFORMATION " in ST group.)
Adding automatic transaxle fluid. (Refer to "SERVICE ADJUSTMENT PROCEDURE " in this group.)

NOTE:

When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.

[Condition]

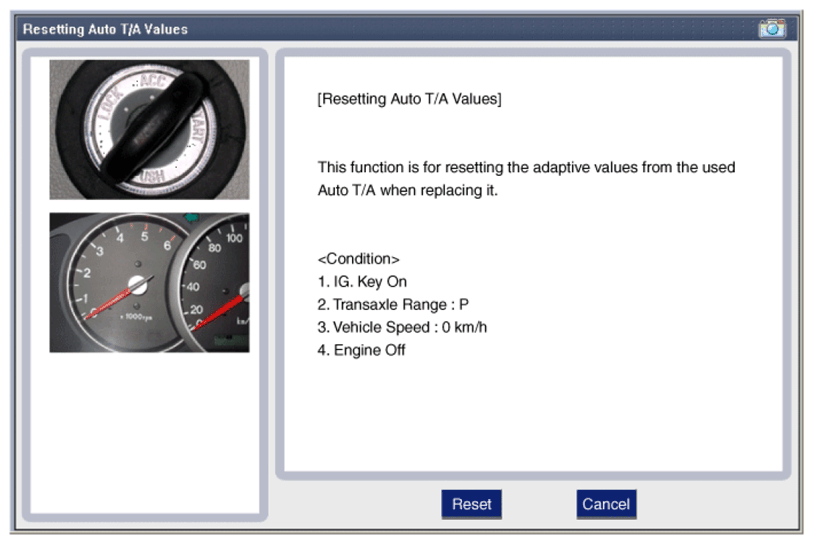

Fig 1: Screen Display - Resetting Auto T/A Values

Courtesy of KIA MOTORS AMERICA, INC.

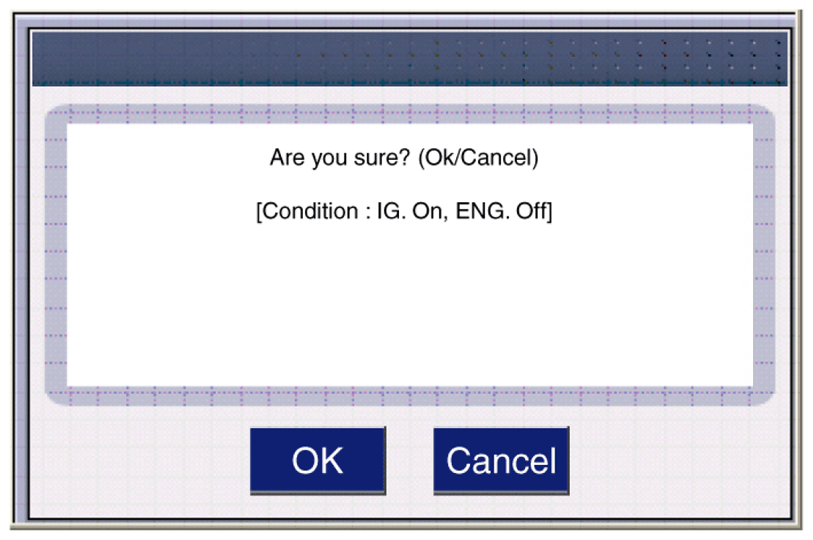

Fig 2: Screen Display - Resetting Auto T/A Values

Courtesy of KIA MOTORS AMERICA, INC.

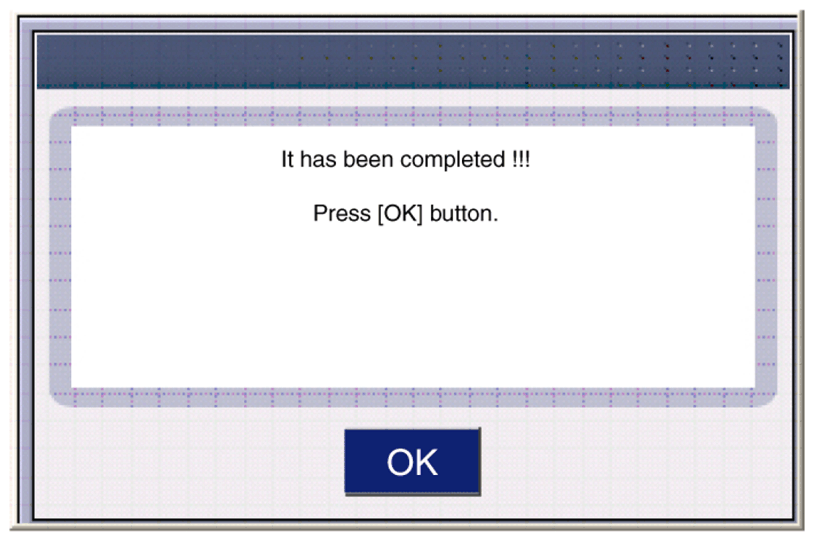

Fig 3: Screen Display - Resetting Completed

Courtesy of KIA MOTORS AMERICA, INC.
