ICM (Integrated Circuit Module) Relay Box





Description

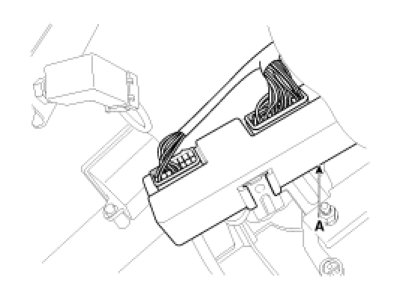

The ICM relay is united with rear wiper relay, seat heater relay(front/rear), head lamp washer relay and rear A/C relay which installed inside the lower crash pad.
