Home >> Kia >> 2011 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor Position Sensor >> Passenger Reclining Limit Switch

Passenger Reclining Limit Switch

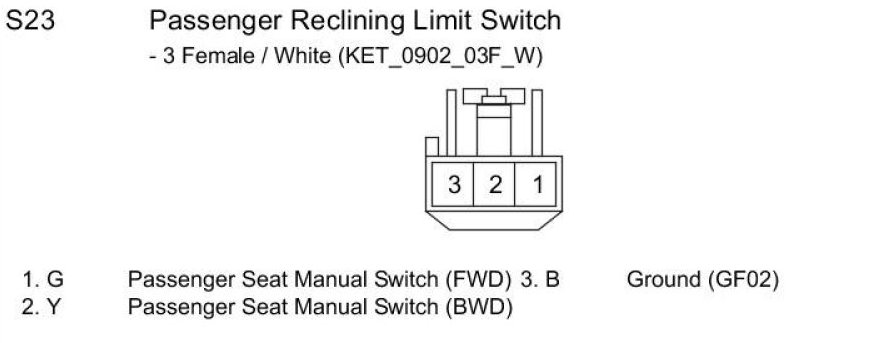

S23 Passenger Reclining Limit Switch:
