NVLD (Natural Vacuum Leakage Detection): Troubleshooting: Waveform

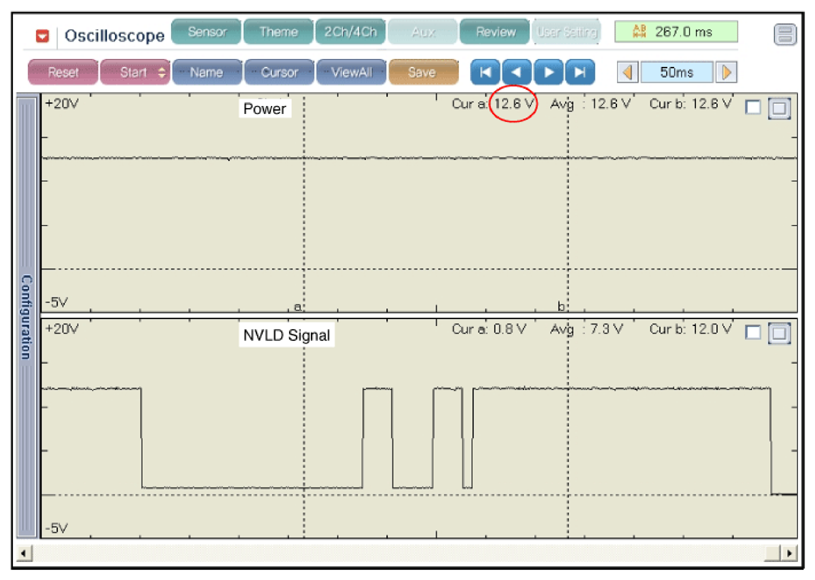

Fig 1: Power And NVLD Signal Waveform

G08312887

Courtesy of KIA MOTORS AMERICA, INC.
