Cylinder Head

NOTE: Head Bolts are reusable.

Cylinder Head

Install cylinder head bolts.

A. Apply a light coat if engine oil on the threads and under the heads of the cylinder head bolts.

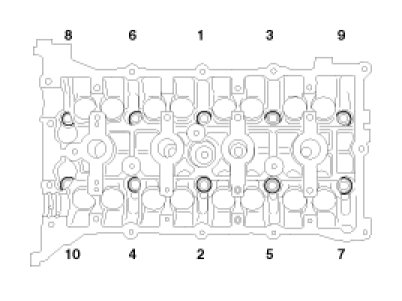

B. Using the SST(09221-4A000), tighten the cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque 32.4 - 36.3 Nm (3.3 - 3.7 kgf.m, 23.9 - 26.8 lb-ft) + (90 - 95°) + (90 - 95°)

CAUTION: Always use new cylinder head bolt.






SURFACE VARIATION - WARPAGE
