Axle Shaft Assembly

SPECIFICATIONS

NOTE:
Inner: On transaxle side
Outer : On tire side

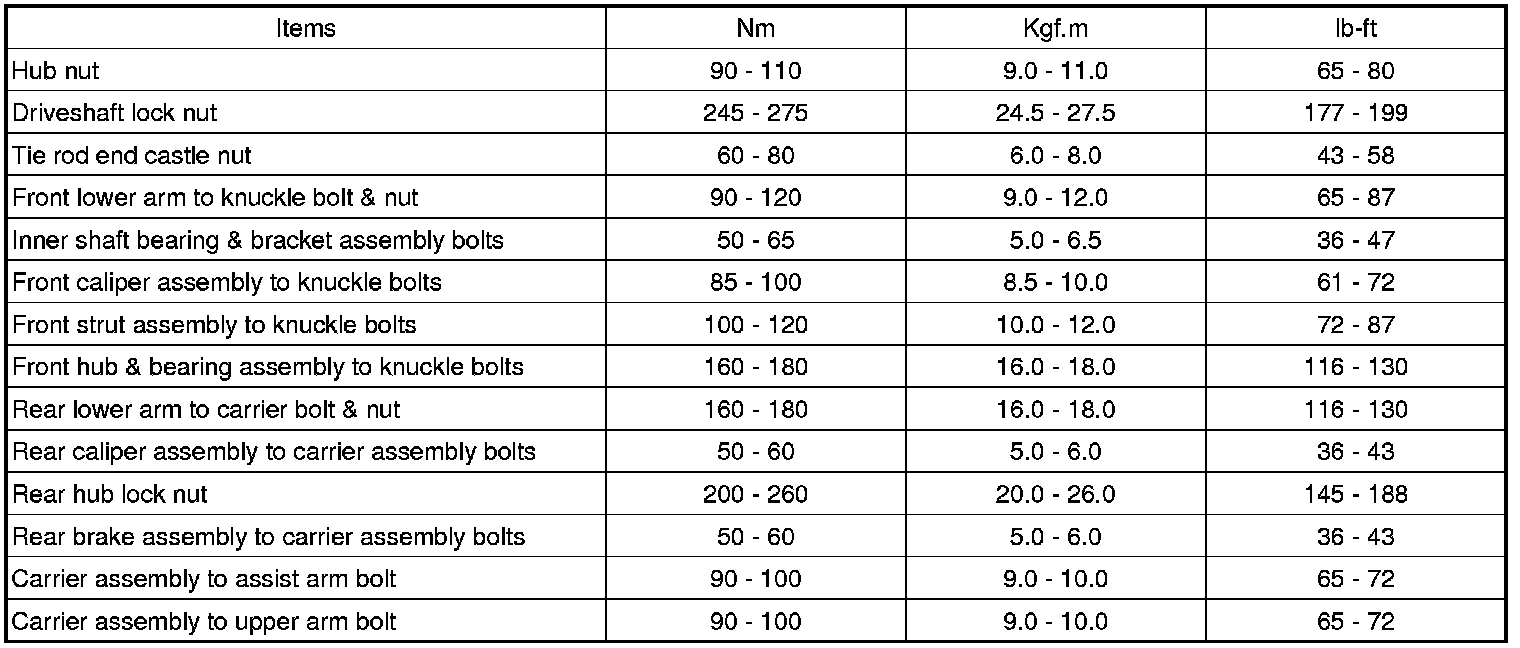

TIGHTENING TORQUE
