Fuse: Locations

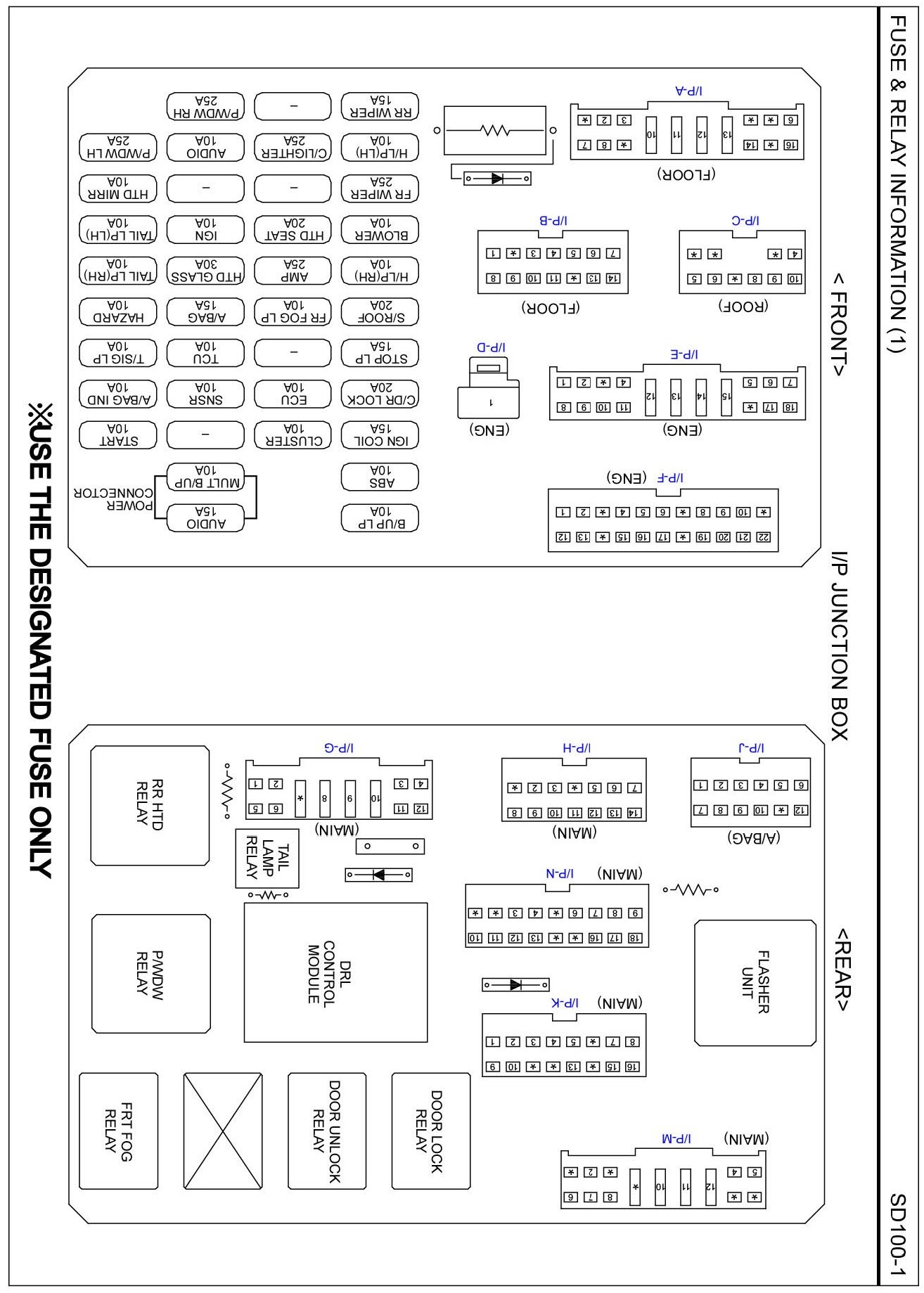

SD100-1 Fuse & Relay Information (1):

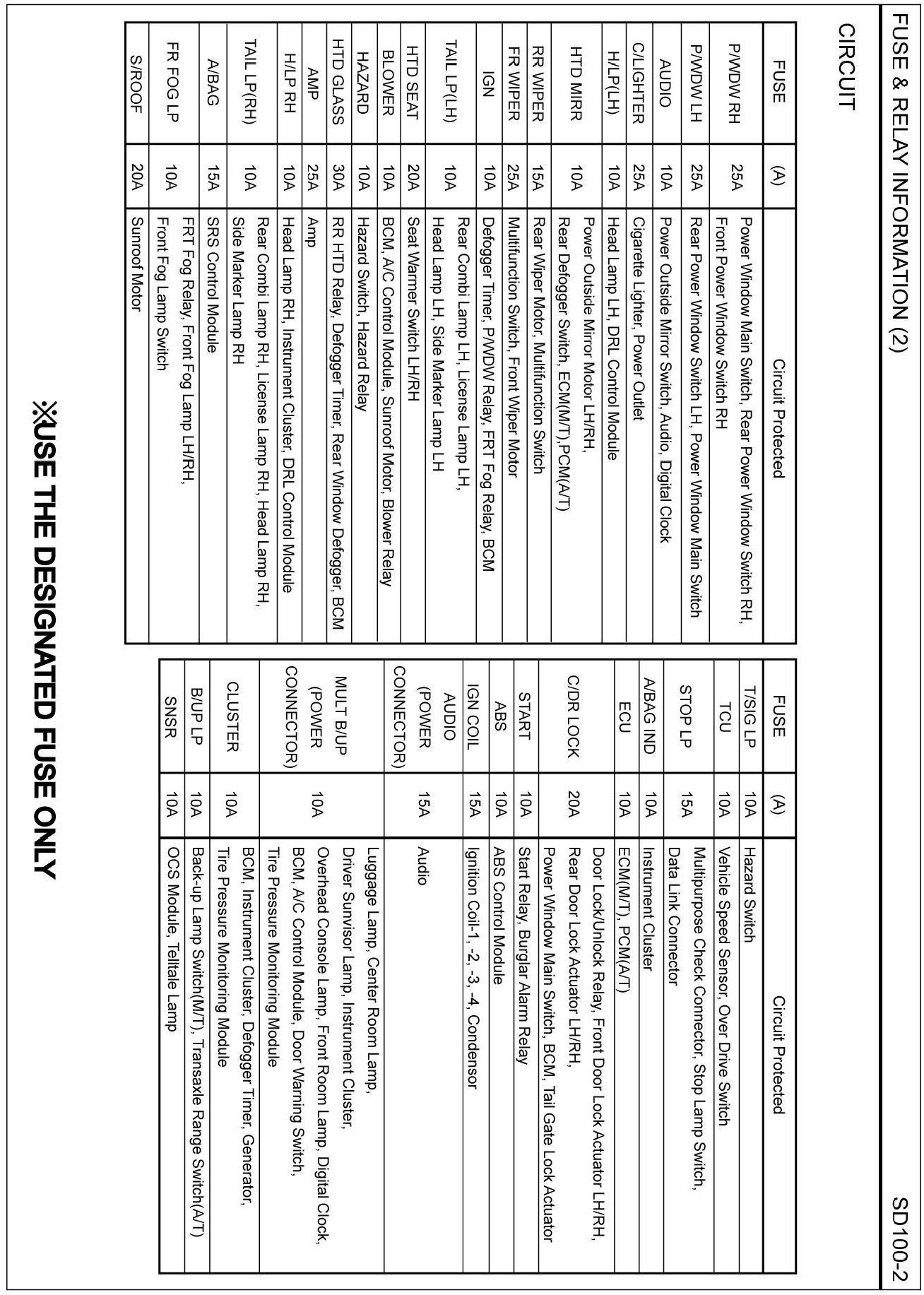

SD100-2 Fuse & Relay Information (2):
SD100-3 Fuse & Relay Information (3):

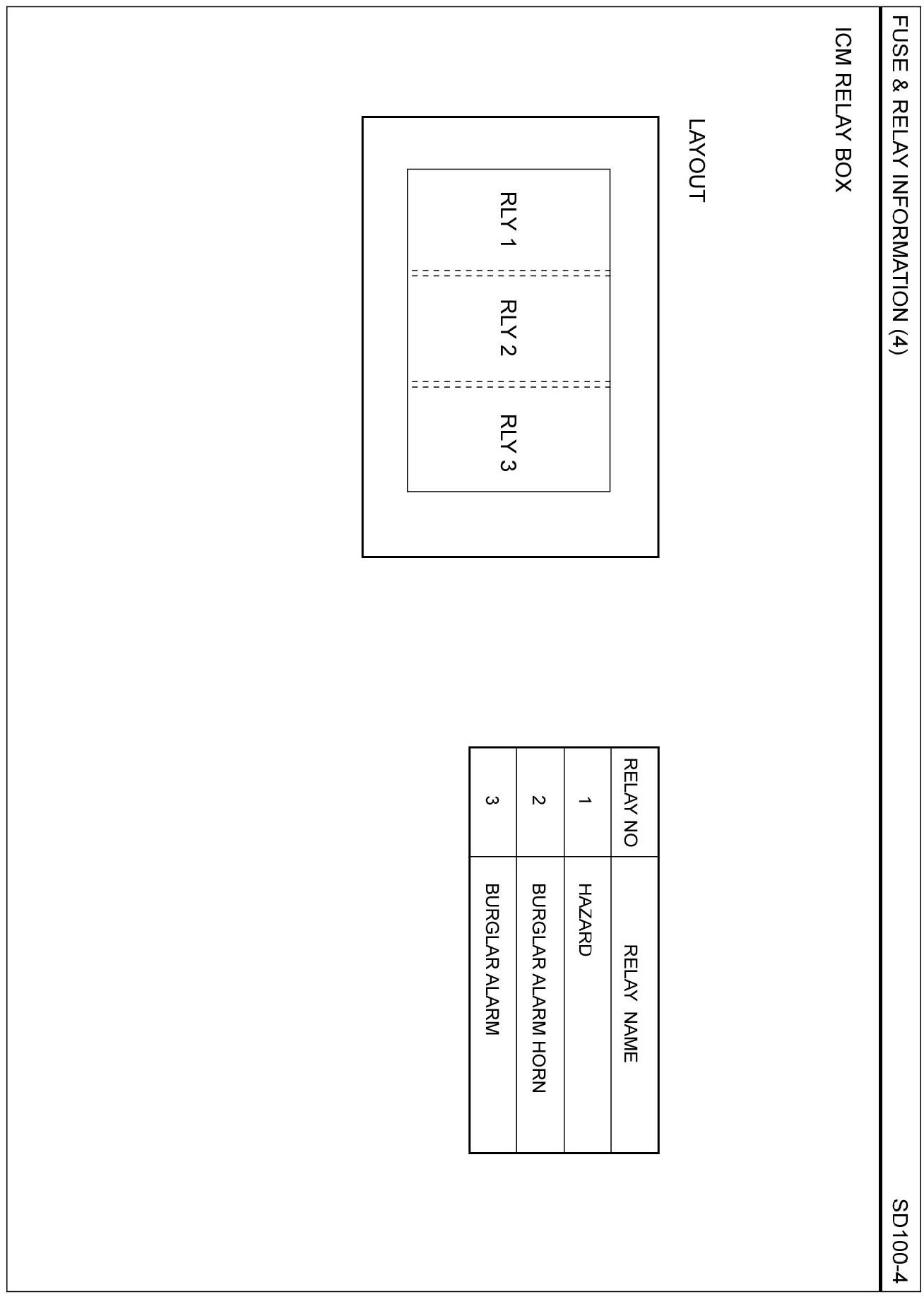

SD100-4 Fuse & Relay Information (4):
