Home >> Kia >> 2010 >> Forte L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Testing and Inspection

Electronic Brake Control Module: Testing and Inspection

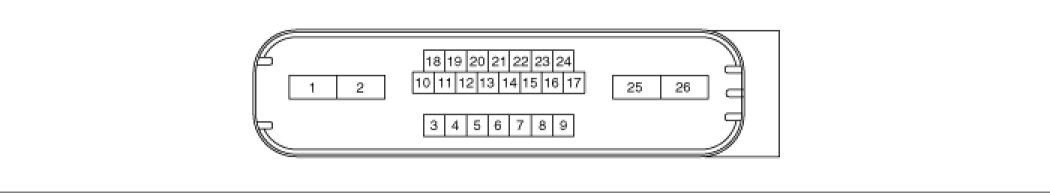

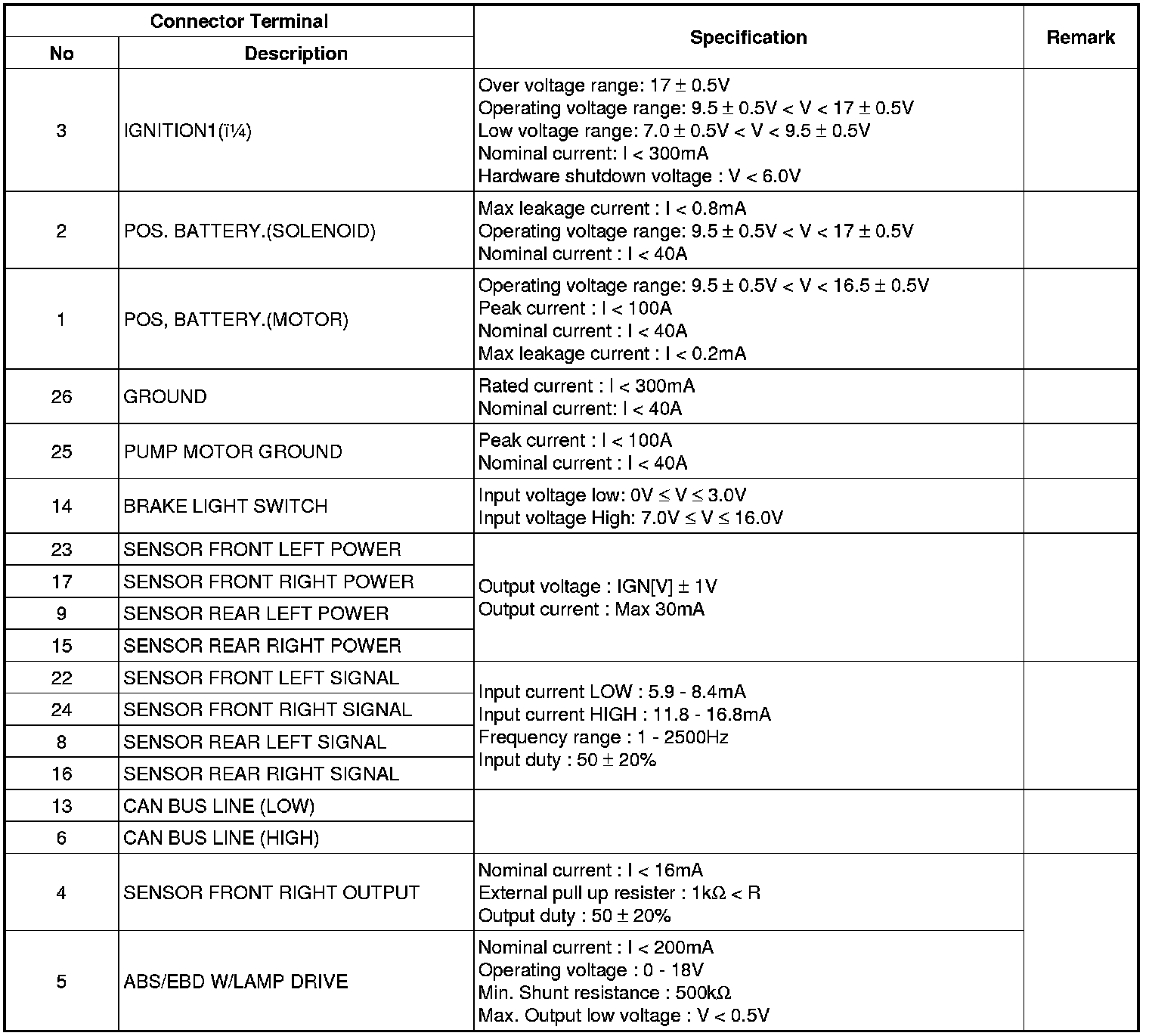

ABS Connector Input / Output
