Evaporator Temperature Sensor / Switch: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower cover(A)

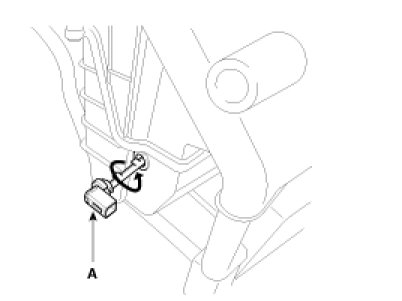

3. Disconnect the evaporator sensor connector (A).





CAUTION:
- Take care that evaporator core pins are not bent.

4. Installation is the reverse order of removal.
