Home
>>
Kia
>>
2010
>>
Forte L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Restraints and Safety Systems
>>
Advanced
Advanced

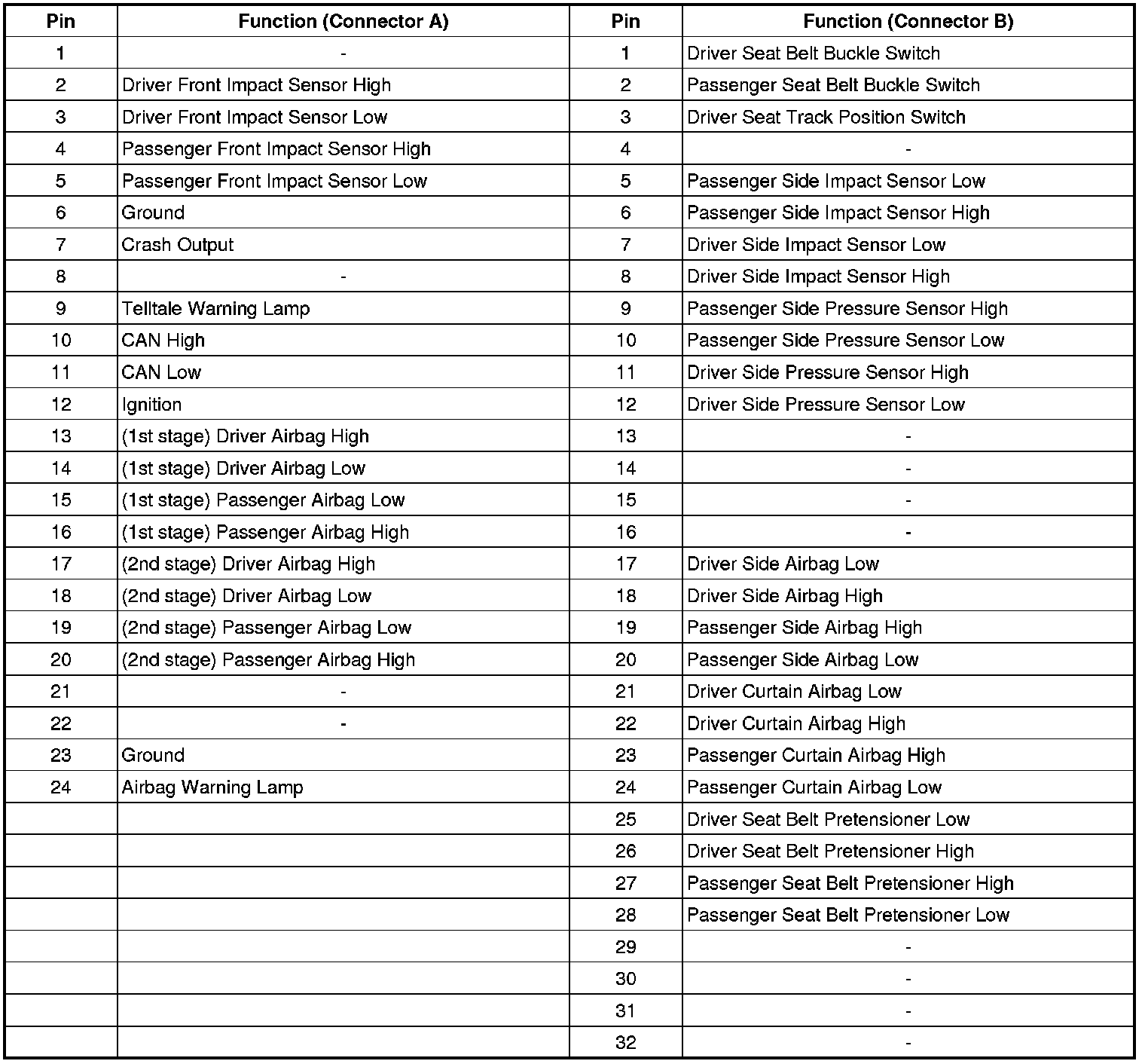

SRSCM Connector Terminal

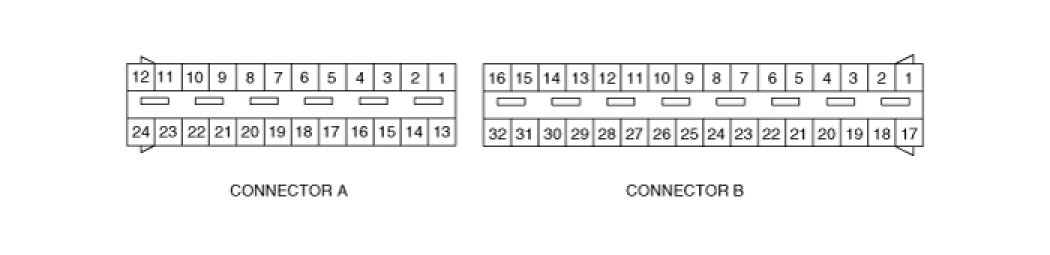

Harness Connector
