Front Door Lock Switch

Front Door Lock Switch
1. Remove the front door trim.

2. Remove the front door module.
.

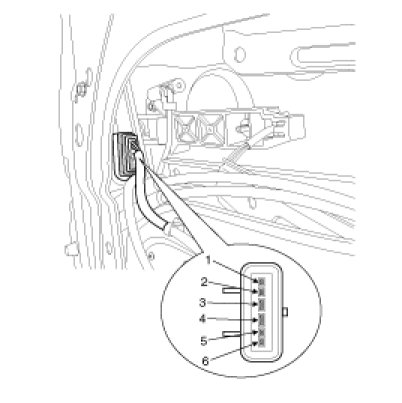

3. Disconnect the connectors from the actuator.

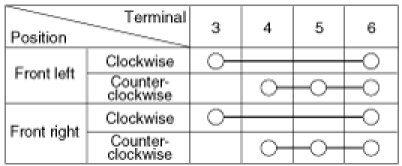

4. Check for continuity between the terminals in each switch position when inserting the key into the door according to the table.
