Condenser Fan Motor Relay: Service and Repair

REPLACEMENT

CONDENSER FAN
1. Disconnect the negative(-) battery terminal.
2. Disconnect the connector of condenser fan.

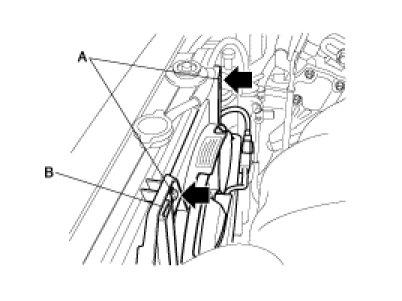

3. Remove the bolts(A), then remove the condenser fan(B) by lifting it up.




4. Install in the reverse order of removal.
