Home >> Kia >> 2009 >> Sorento 2WD V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Manual Controller

Manual Controller

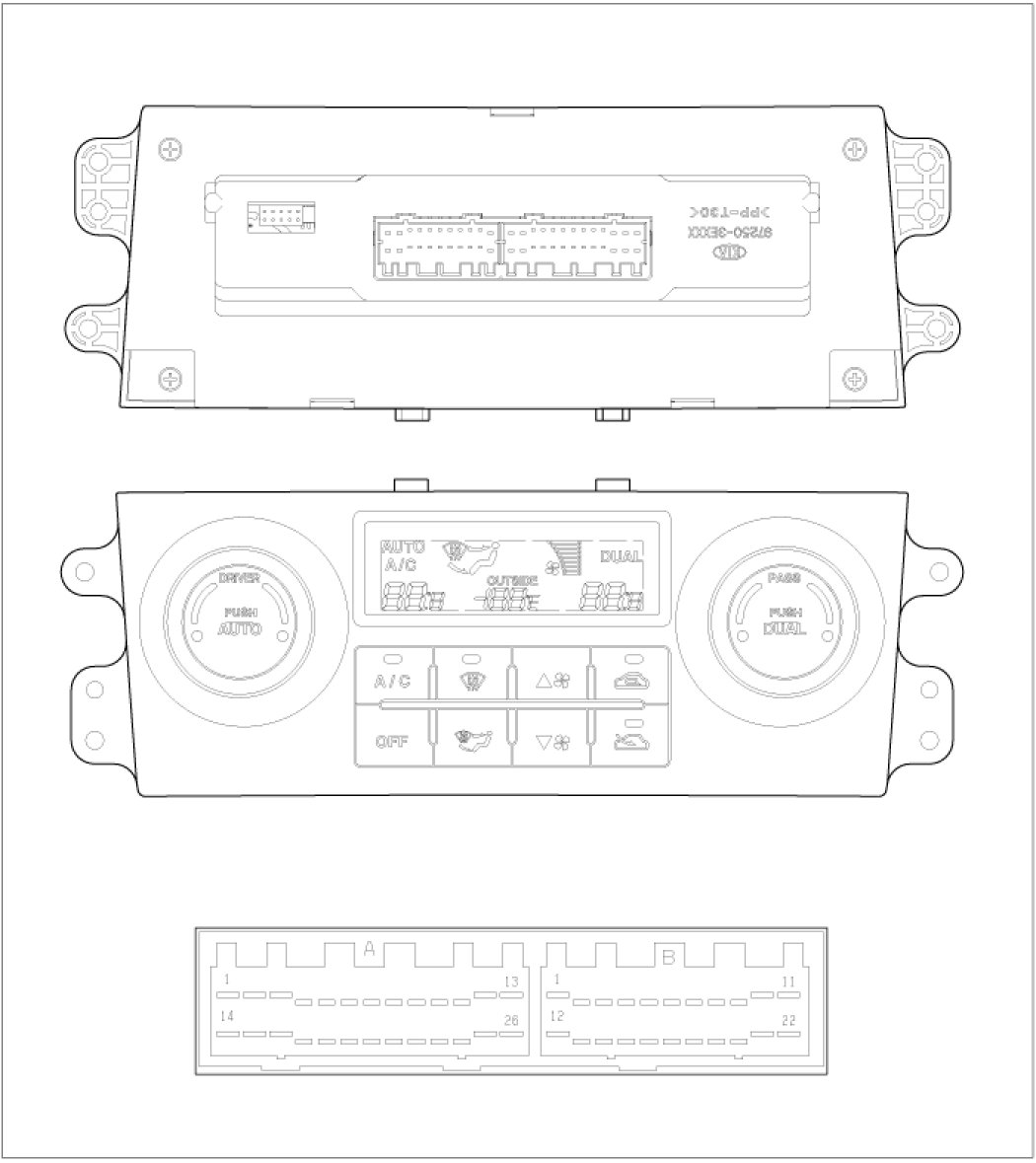

COMPONENT

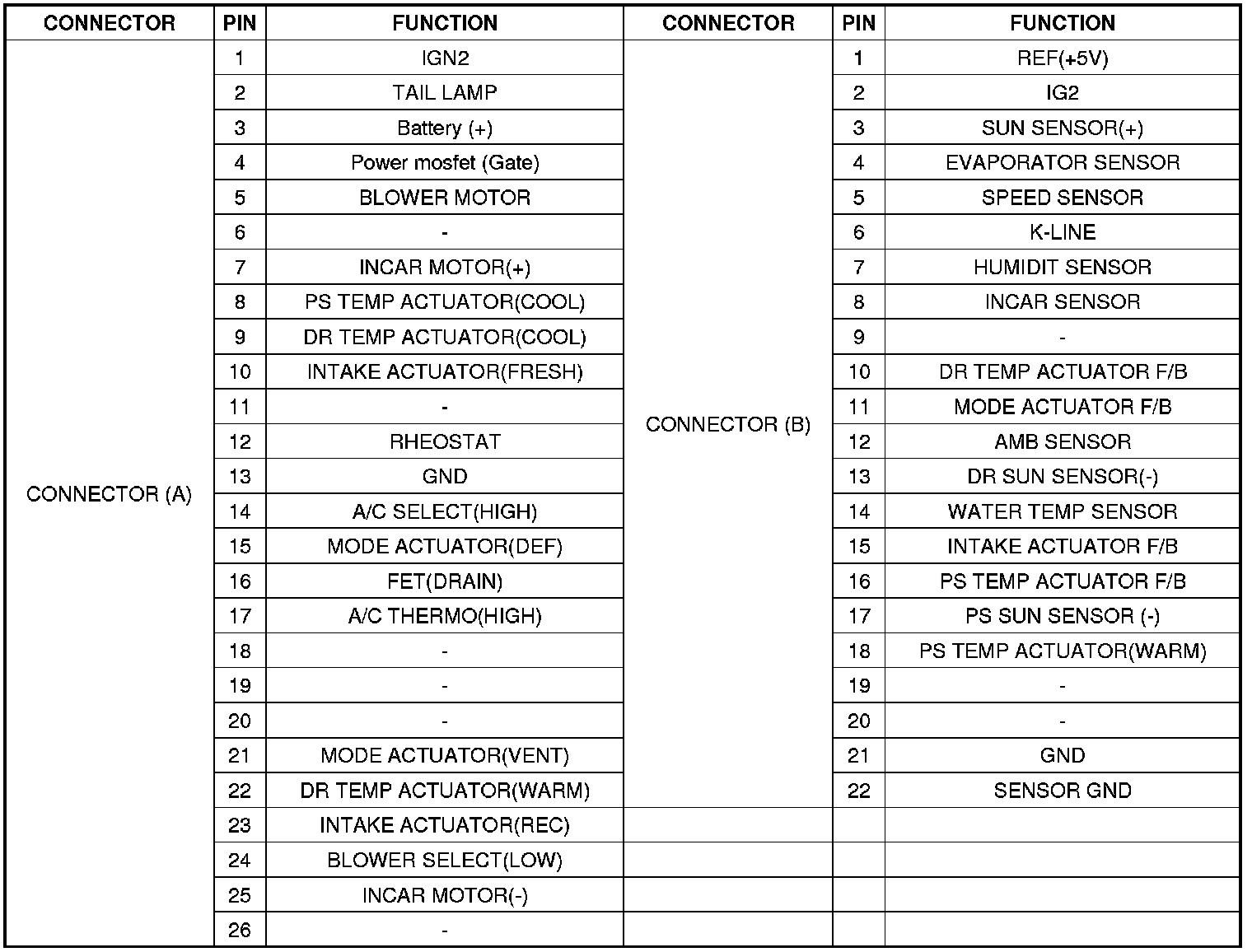

[CONNECTOR PIN FUNCTION]
