Repair Procedures

Replacement

Floor Console Replacement

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
- Put on gloves to protect your hands.

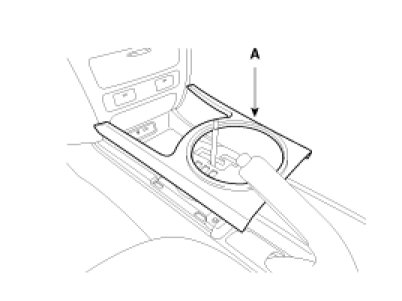

1. Remove the indicator cover (A).




2. Remove the parking brake cover (A).




3. Remove the mat (A).




4. Loosening the console mounting bolt.




5. Loosening the console mounting screws.

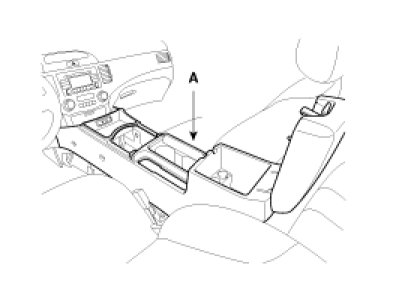

6. Remove the floor console assembly (A).

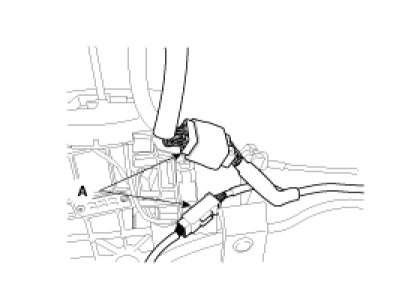

7. Disconnect the connector (A).




8. Installation is the reverse of removal.
