Power Transistor









INSPECTION

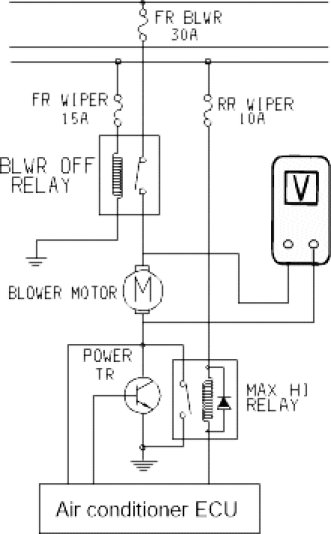

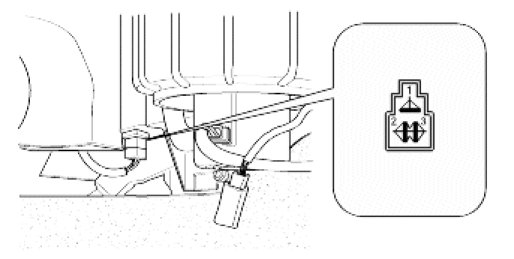

1. Manually operate the control switch and measure the voltage of blower motor between pin 1 and 2.

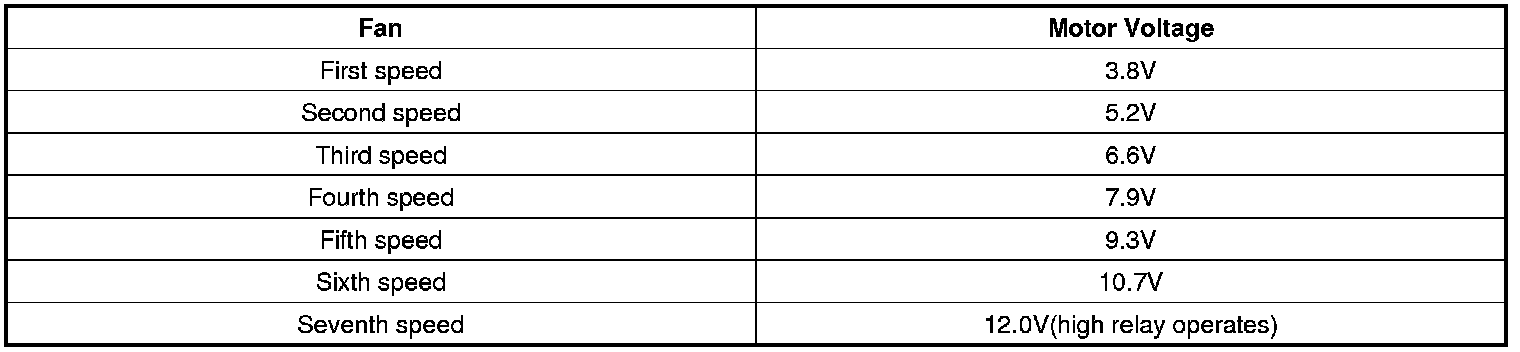

2. Select the control switch to raise voltage until high relay operates.
CHECK
