Switch
BRAKE FLUID LEVEL WARNING SWITCH

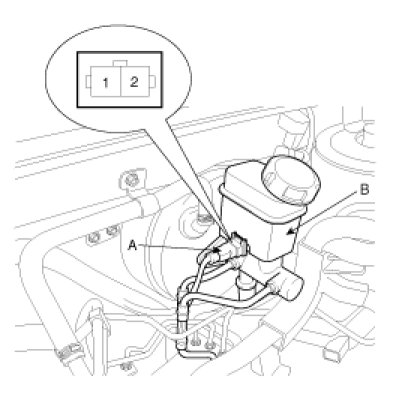

1. Remove the connector(A) from the switch located at the brake fluid reservoir(B).
2. Verify that continuity exists between switch terminals 1 and 2 while pressing the switch (float) down with a rod.
BRAKE FLUID LEVEL WARNING SWITCH
1. Remove the connector(A) from the switch located at the brake fluid reservoir(B).
2. Verify that continuity exists between switch terminals 1 and 2 while pressing the switch (float) down with a rod.
