Anti-Lock Braking System Control Module: Components

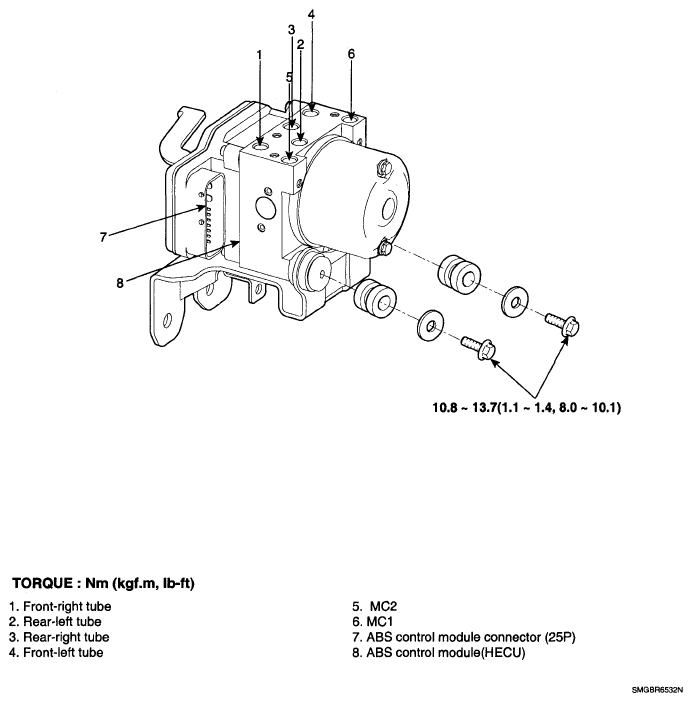

Fig 1: ABS Control Module With Torque Specifications

G04805949

Courtesy of KIA MOTORS AMERICA, INC.
