Differential Assembly

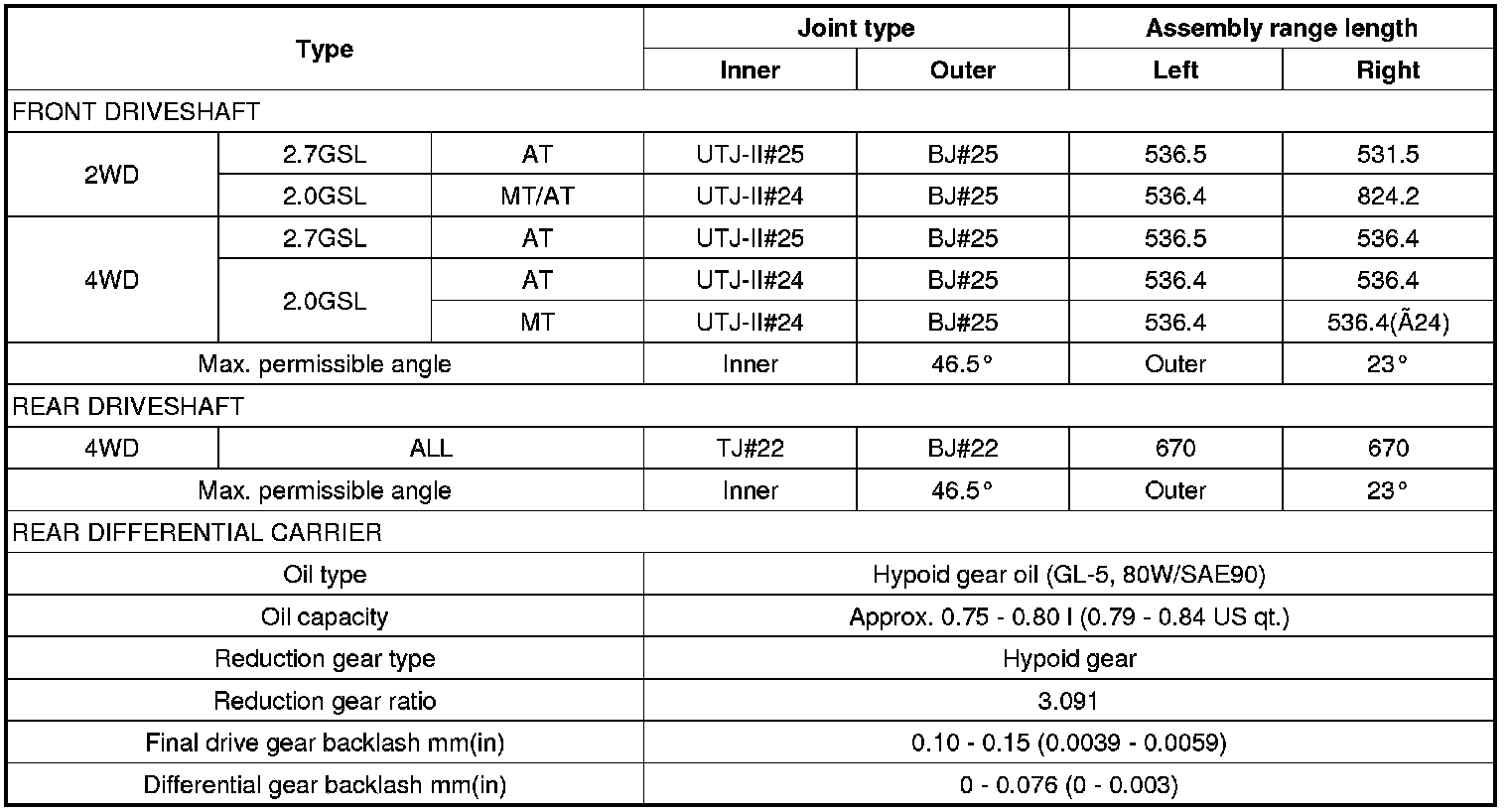

SPECIFICATION

NOTE:
BJ : Birfield Joint
TJ : Tripod Joint
UTJ-II : U-type Tripod Joint
