Component Tests and General Diagnostics

INSPECTION

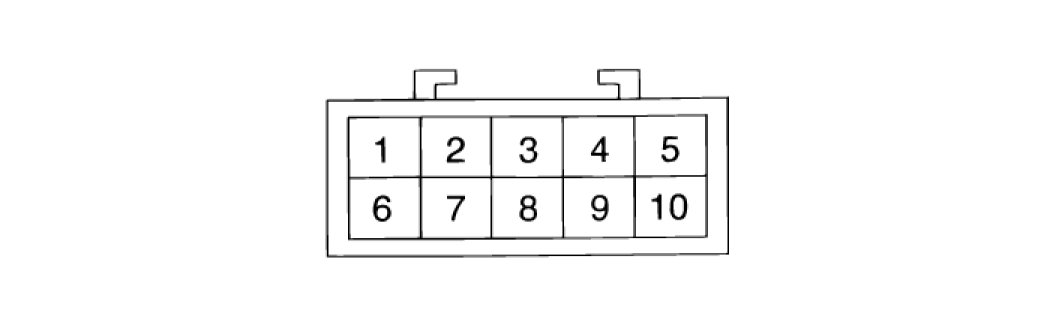

1. Connect a voltmeter between cruise control unit terminals and ground. (Connector Q01 connected)

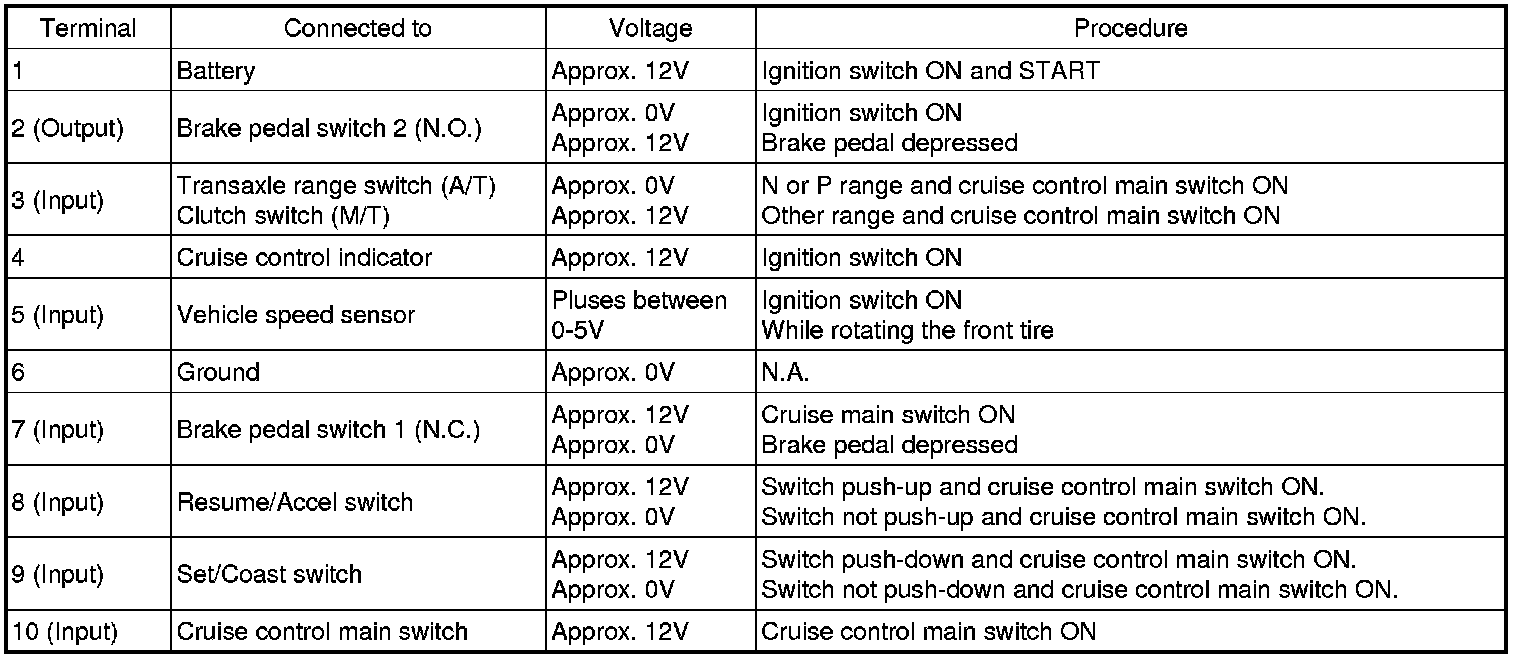

2. Turn ignition switch "ON" and check that terminal voltages are as described on the following page.
