Seat Temperature Switch: Testing and Inspection

INSPECTION

1. Disconnect the negative (-) battery terminal.

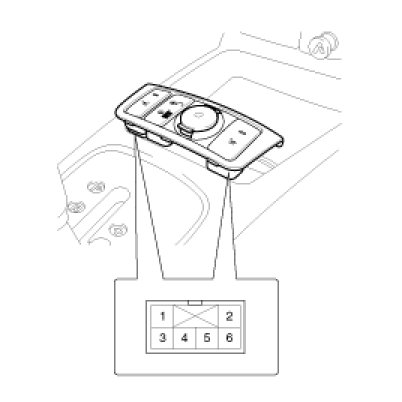

2. Carefully push out the seat warmer switch from behind the floor console upper cover, then disconnect the 6P connector from the switch.




3. Check for continuity between the terminals in each switch position according to the table.
