Power Door Lock Switch: Testing and Inspection

INSPECTION

FRONT DOOR LOCK SWITCH INSPECTION
1. Remove the front door trim panel.

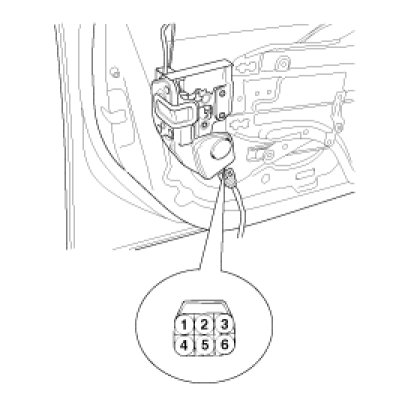

2. Disconnect the 6P connector from the actuator.




3. Check for continuity between the terminals in each switch position according to the table.





REAR DOOR LOCK SWITCH INSPECTION
1. Remove the rear door trim panel.
2. Disconnect the 6P connector from the actuator.




3. Check for continuity between the terminals in each switch position according to the table.
