Fuse: Locations

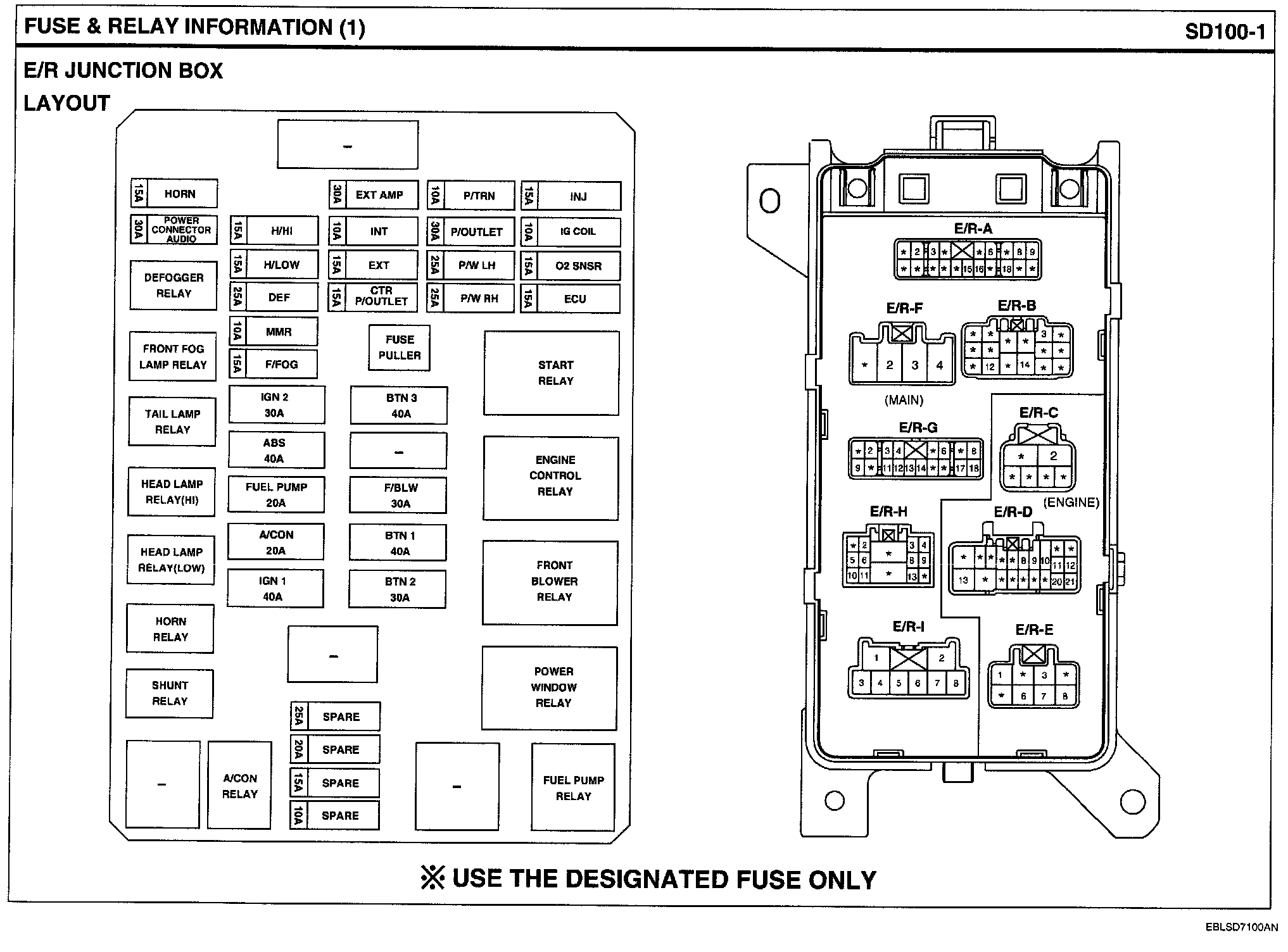

E/J Junction Box View:

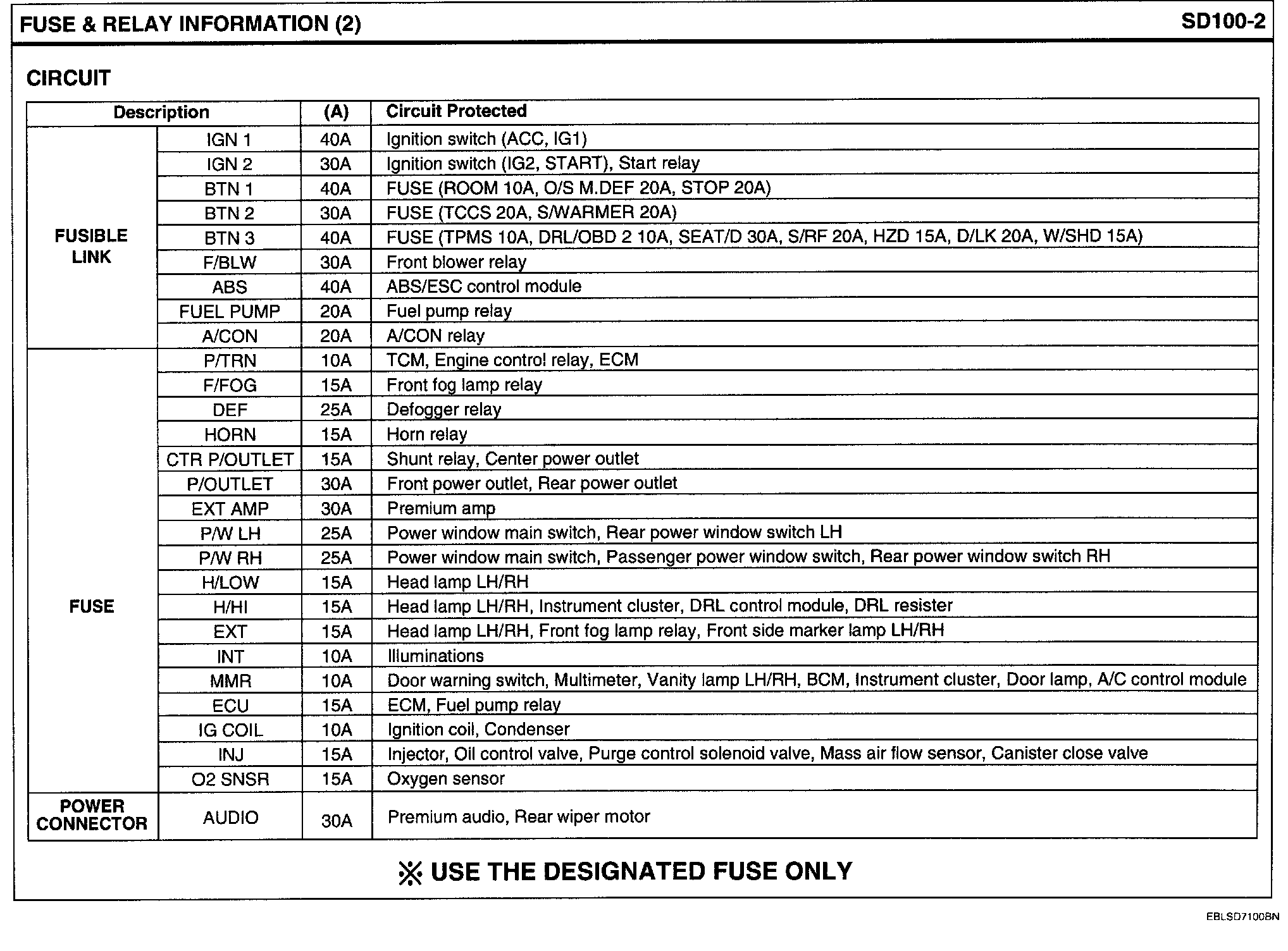

E/J Junction Box Circuit Details:

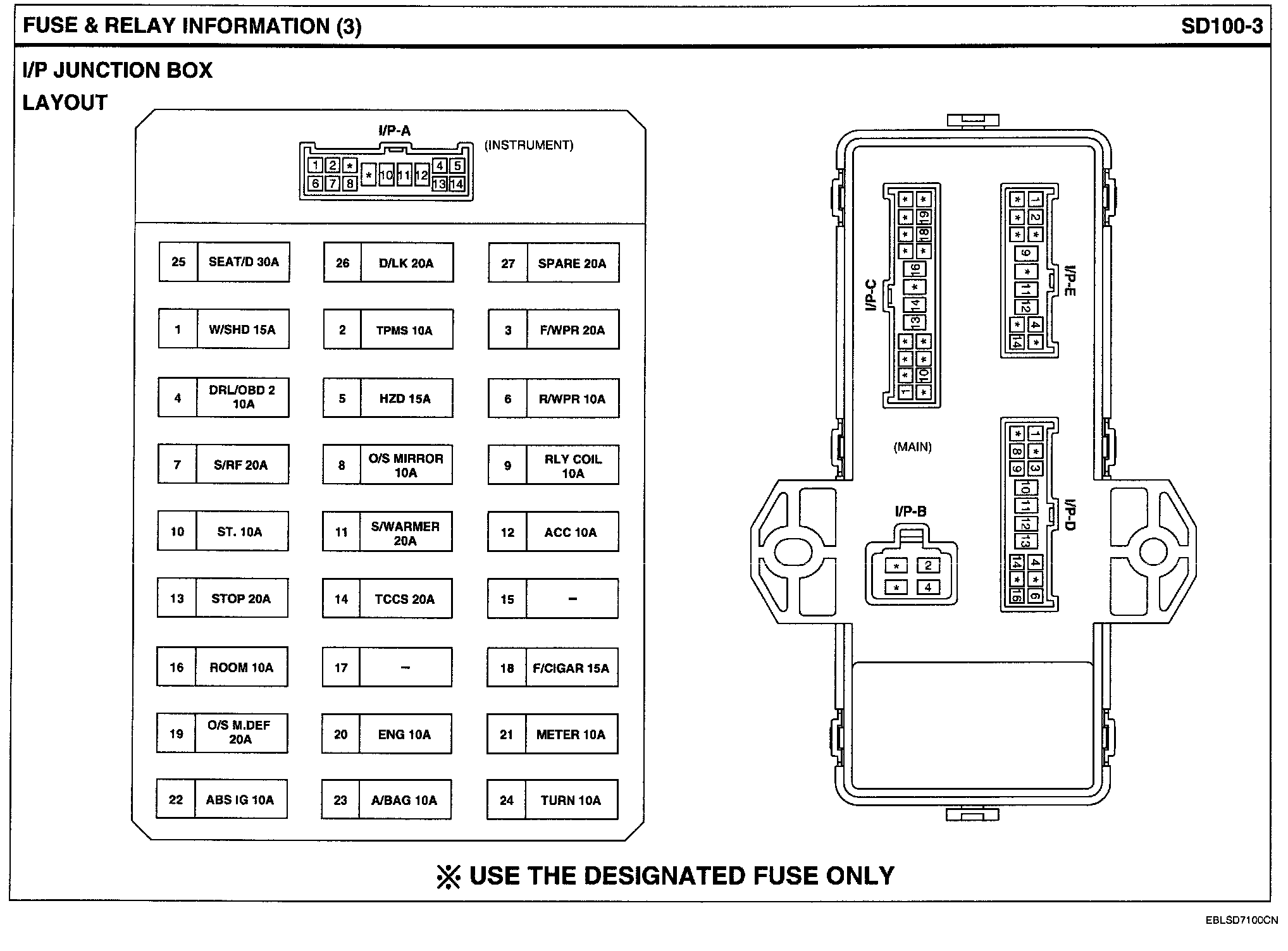

I/P Junction Box View:

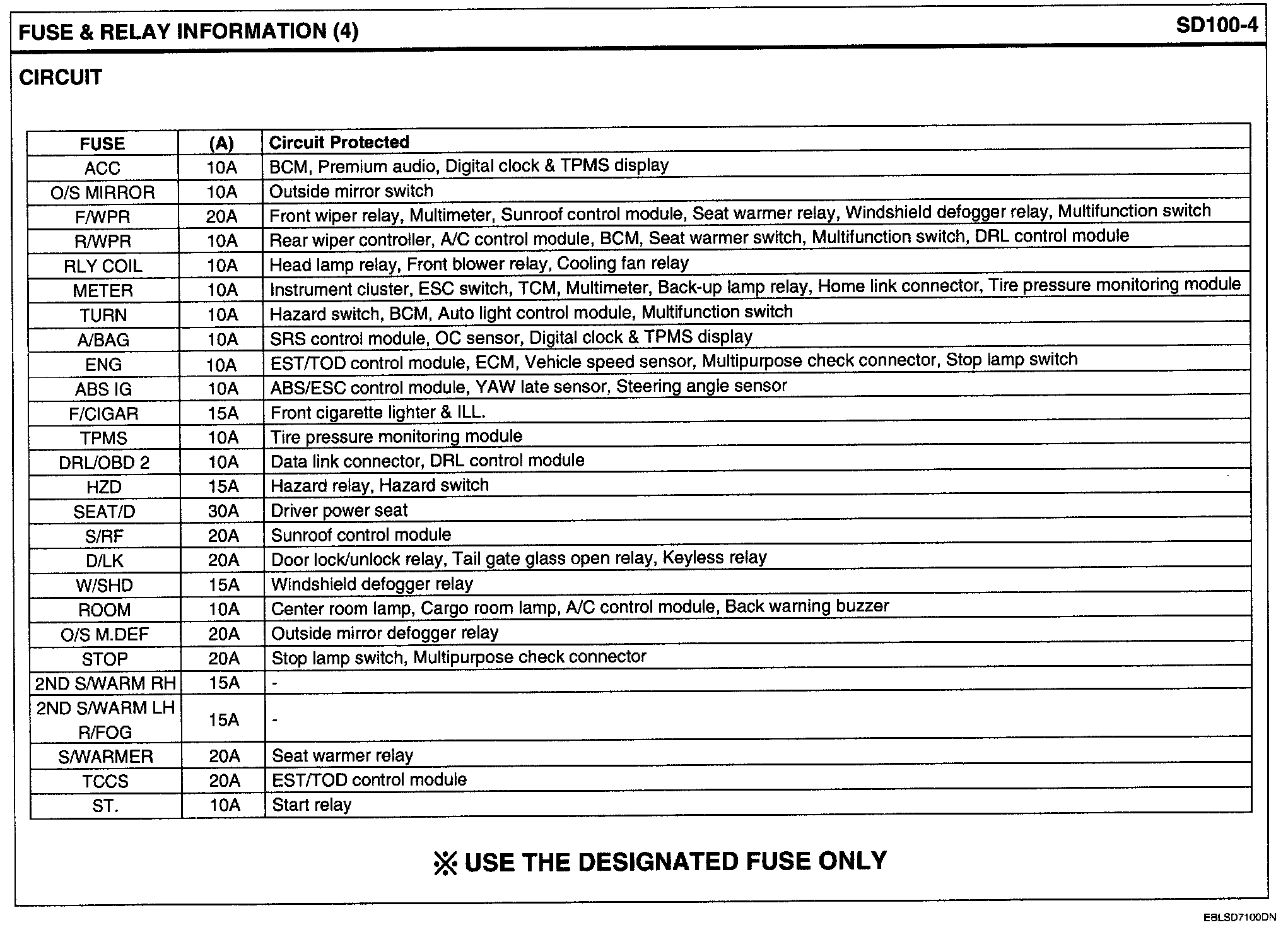

I/P Junction Box Circuit Details:

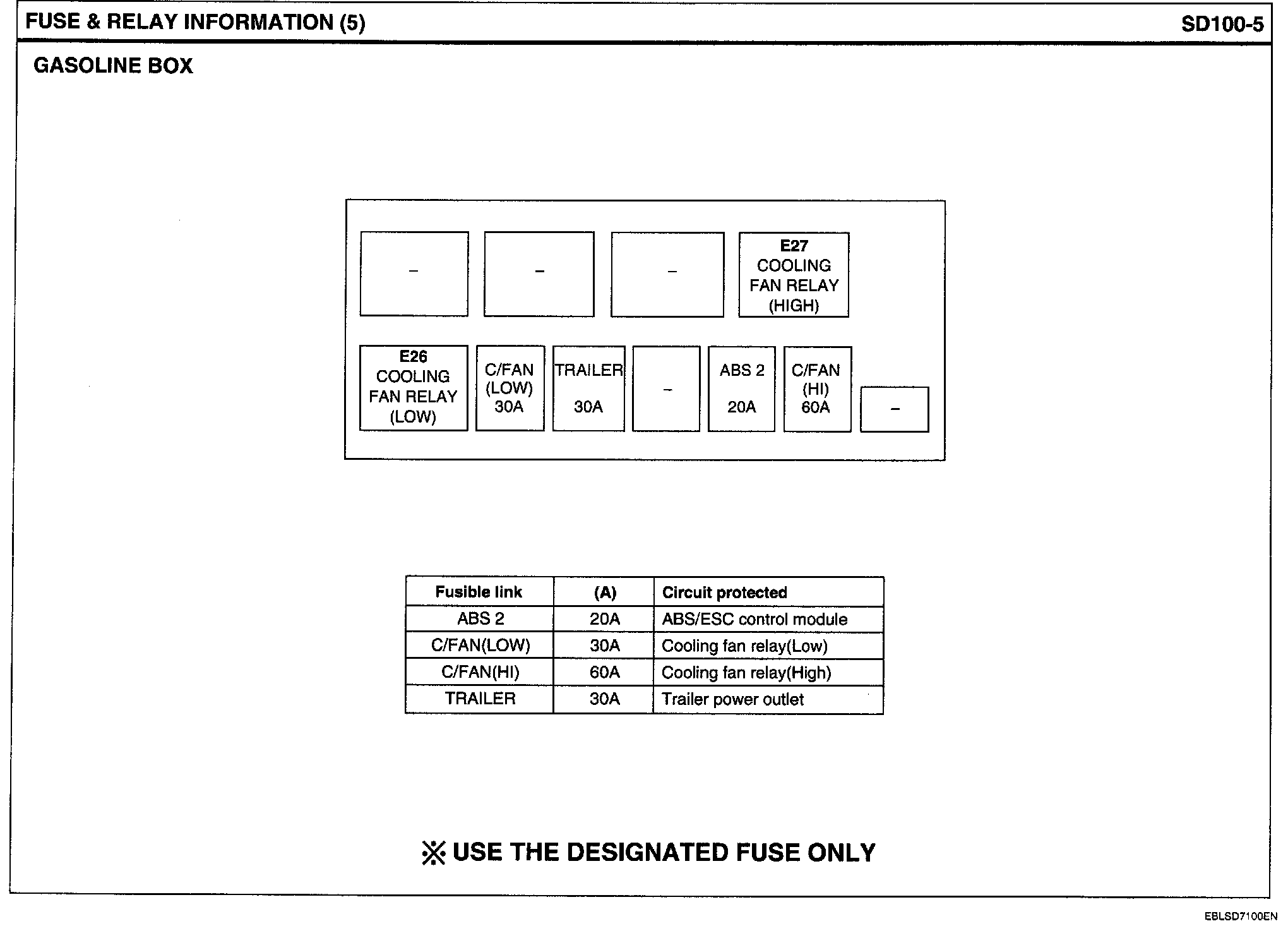

Fuse & Relay Information (5):

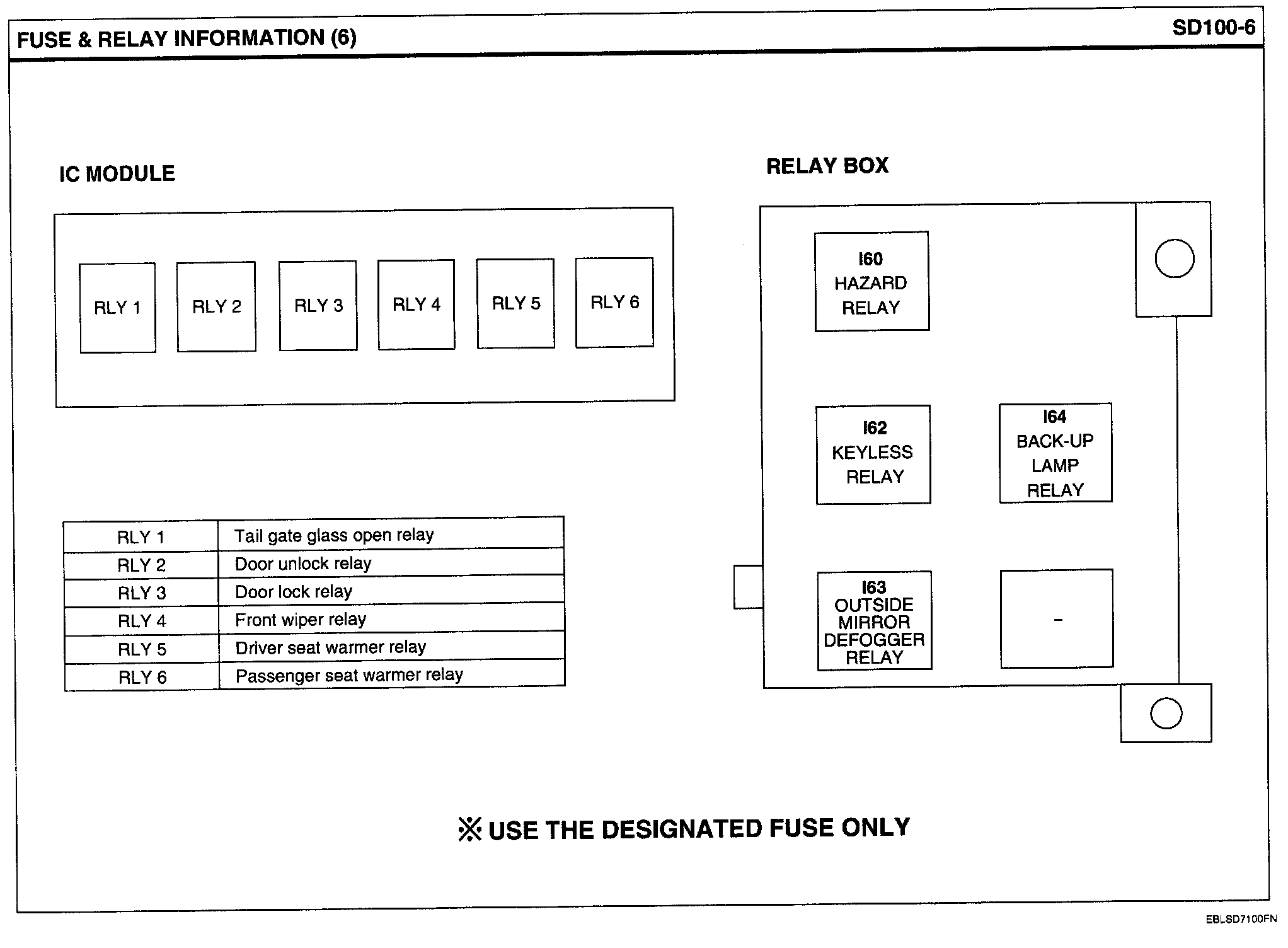

Fuse & Relay Information (6):
