Input Monitoring




INPUT MONITORING

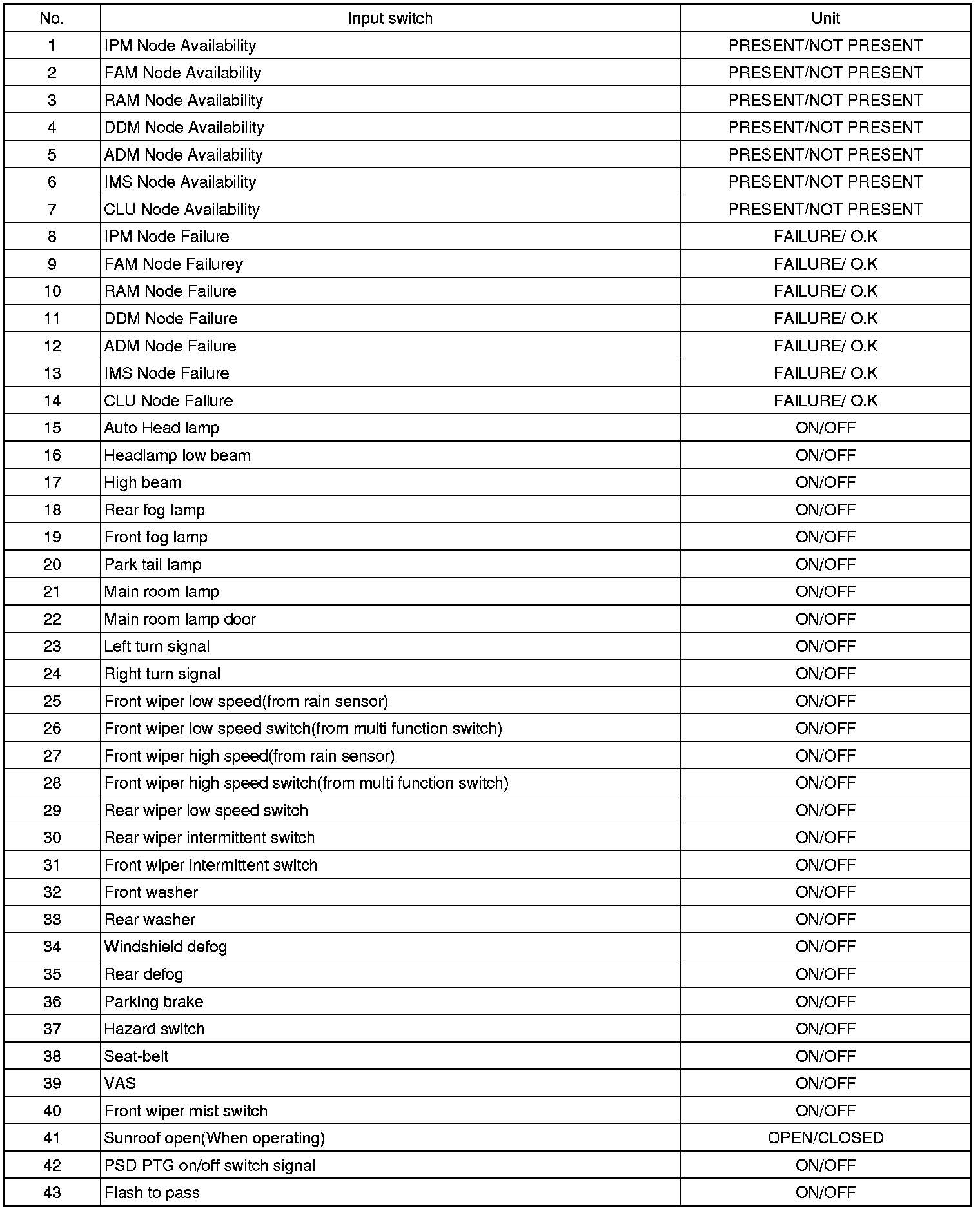

IPM (In-Panel Module)

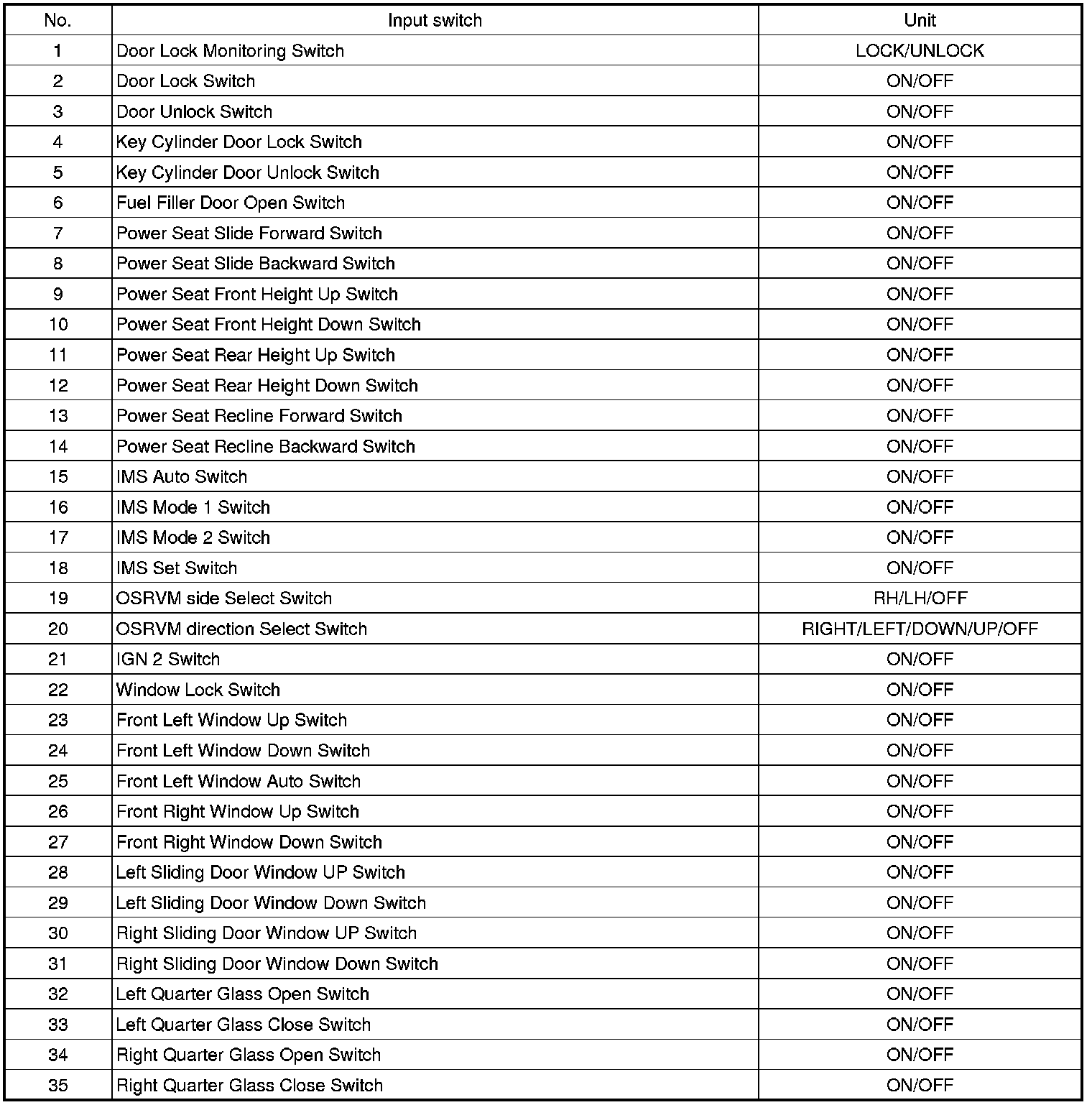

FAM (Front Area Module)

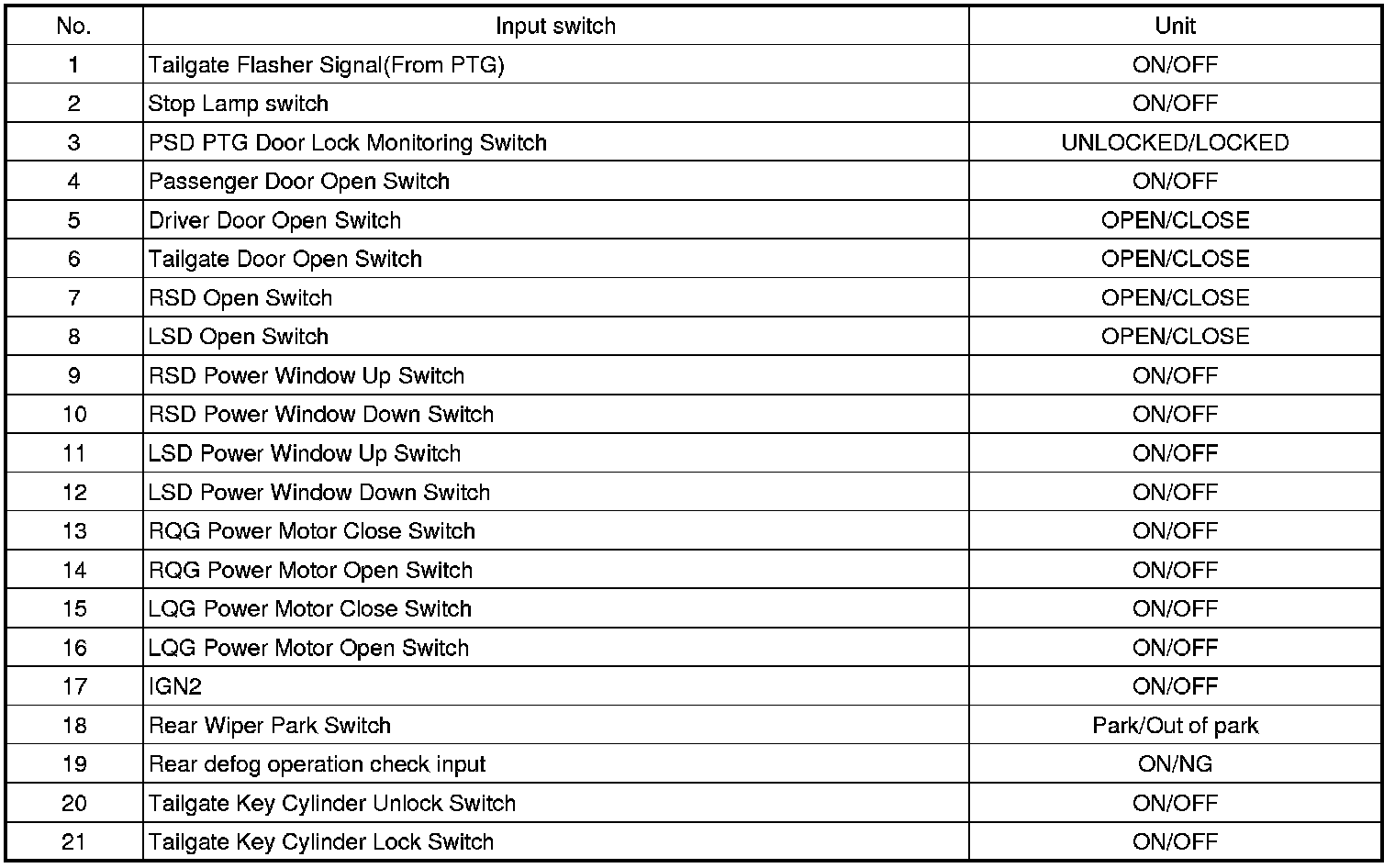

RAM (Rear Area Module)





DDM (Driver door module)





ADM (Assist door module)





IMS Module
