Home >> Kia >> 2007 >> Rondo V6-2.7L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams

Emission Control Systems: Diagrams

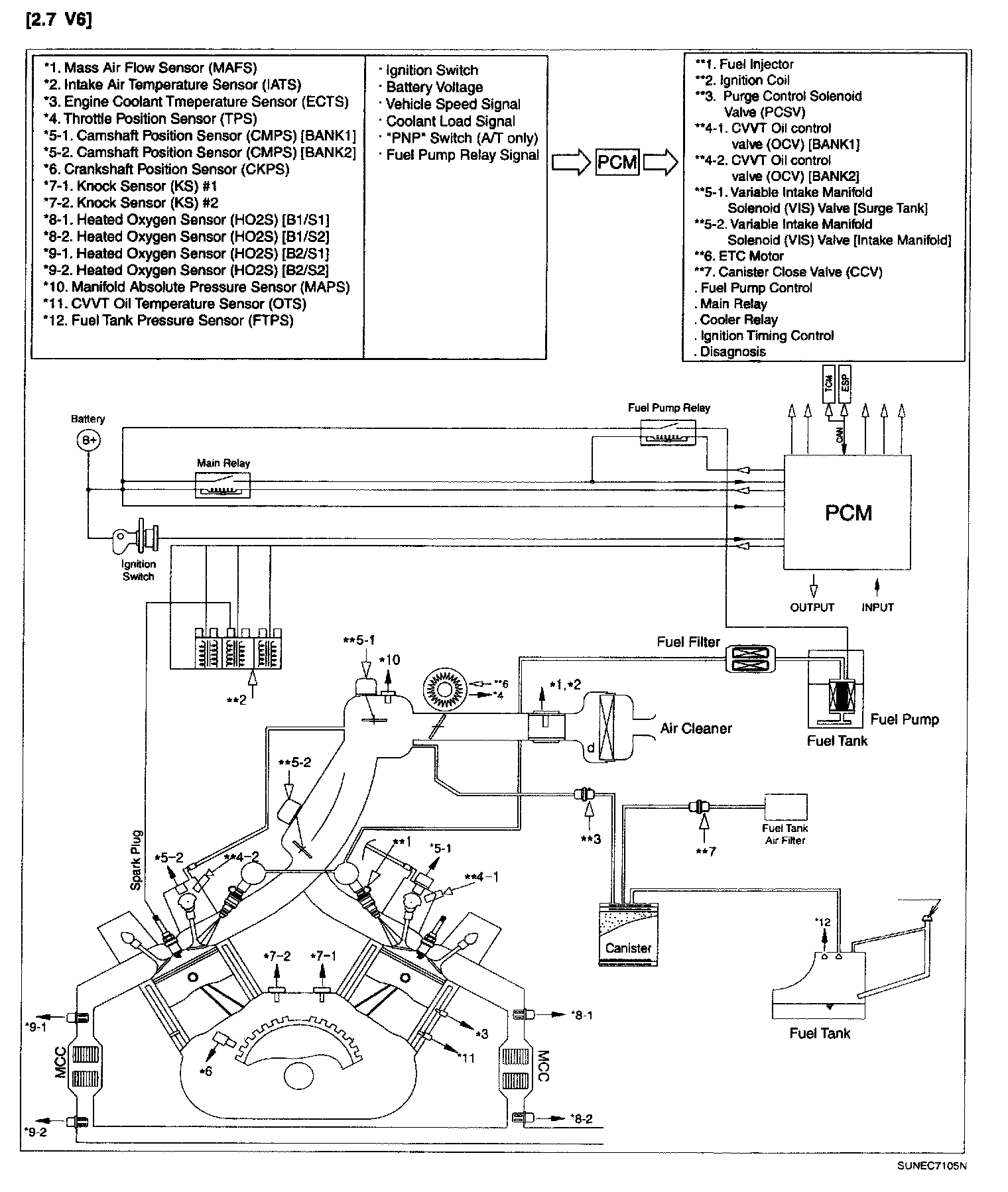

Schematic Diagram:
