Power Transistor HVAC: Service and Repair
POWER MOSFETREPLACEMENT
1. Disconnect the negative (-) battery terminal.

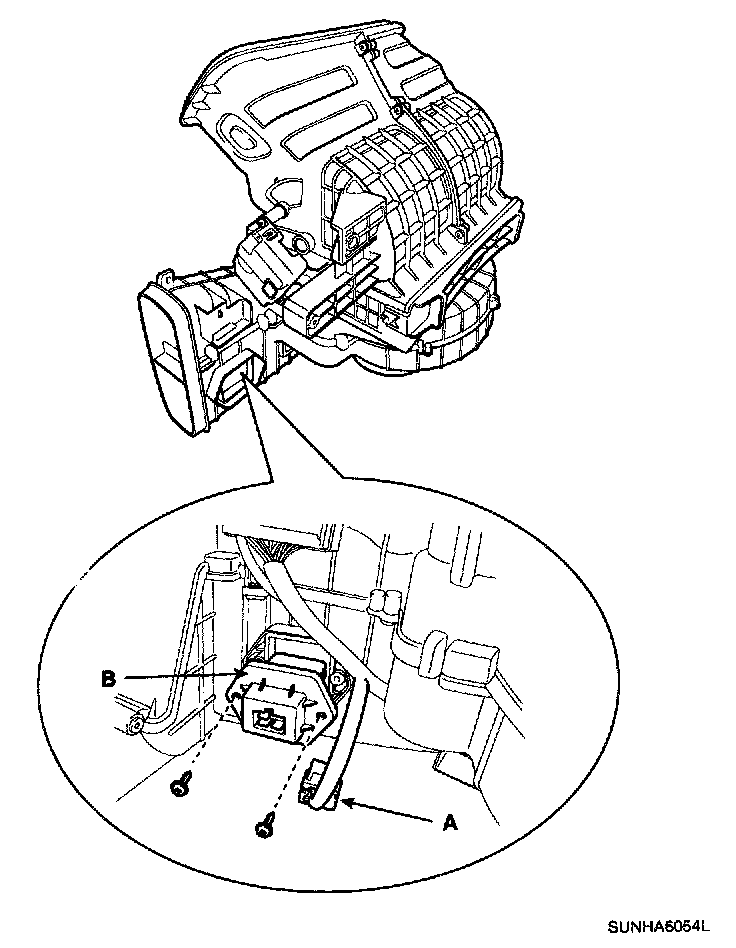

2. Disconnect the power mosfet connector (A) and then, remove the power mosfet (B) after loosening the mounting screws.
3. Installation is the reverse order of removal.
