Front Door Window Regulator: Service and Repair

DOOR MODULE ASSEMBLY REPLACEMENT

1. Remove the following parts.
- Door trim.
- Window glass.
- Outside handle.

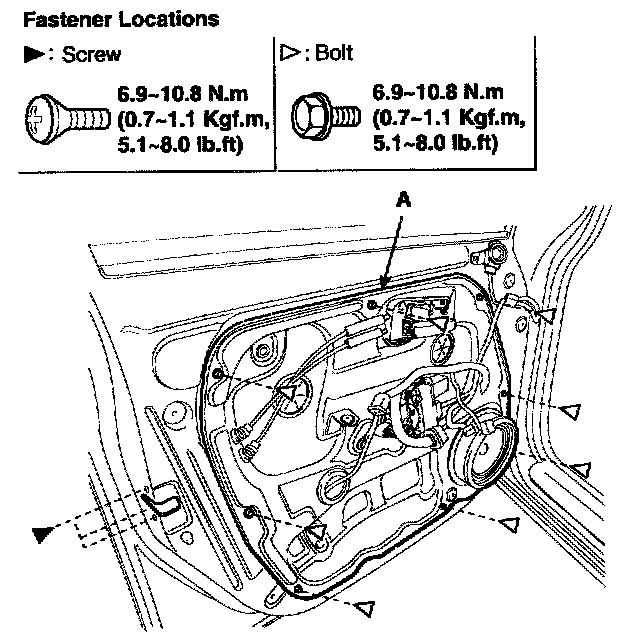

2. Loosen the mounting screw (A).






3. Loosen the door module mounting bolts, then remove the door module (A).






4. Disconnect the connector (C).
5. Disconnect the door module wiring harness (A), then remove the module assembly (B).






6. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly and each rod is connected securely.
- Make sure the door locks and open properly.
