Electronic Brake Control Module: Testing and Inspection

ABS CONNECTOR INPUT/OUTPUT

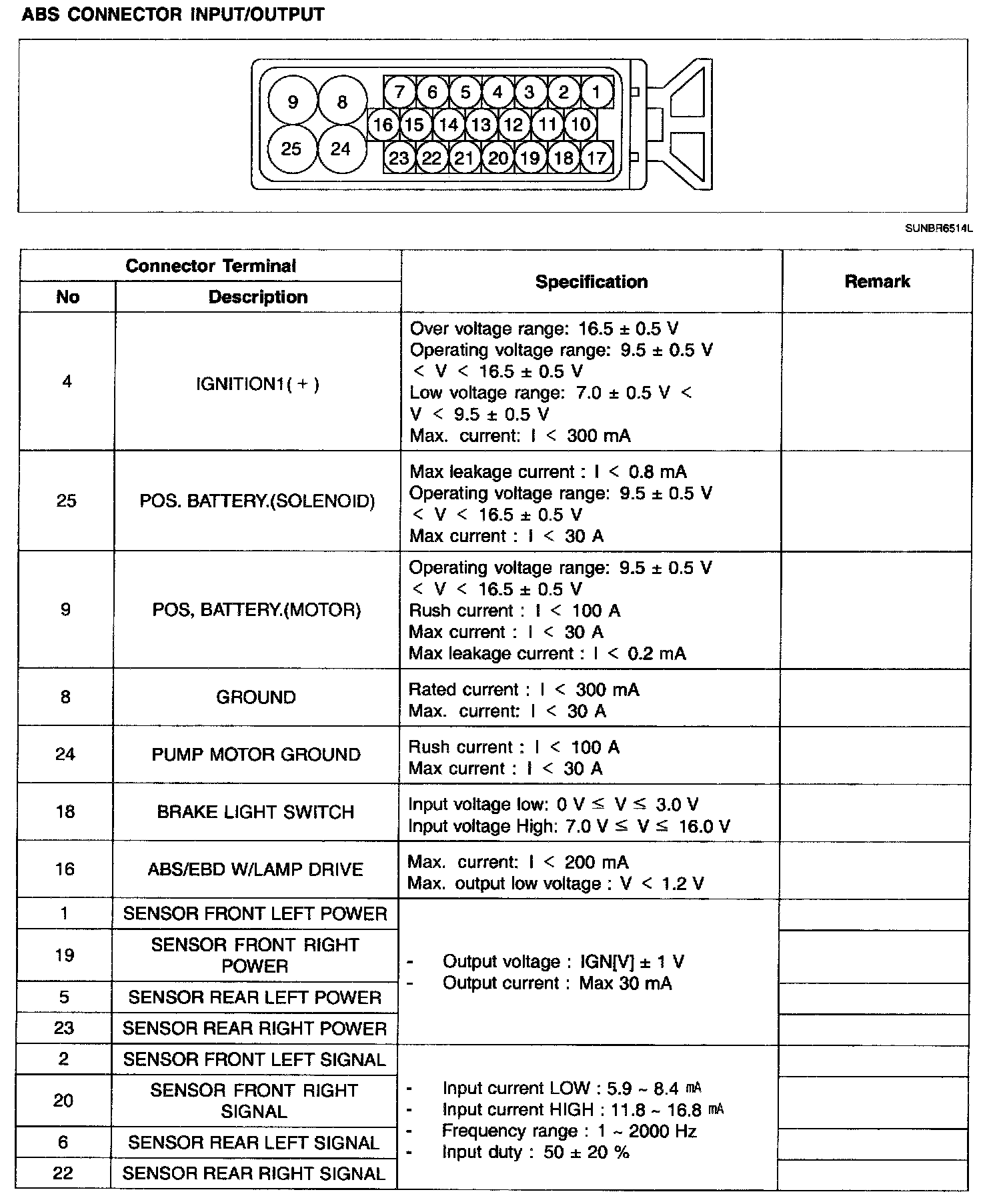

ABS Connector Input/Output (Part 1):




ABS Connector Input/Output (Part 2):
