Fuse: Locations

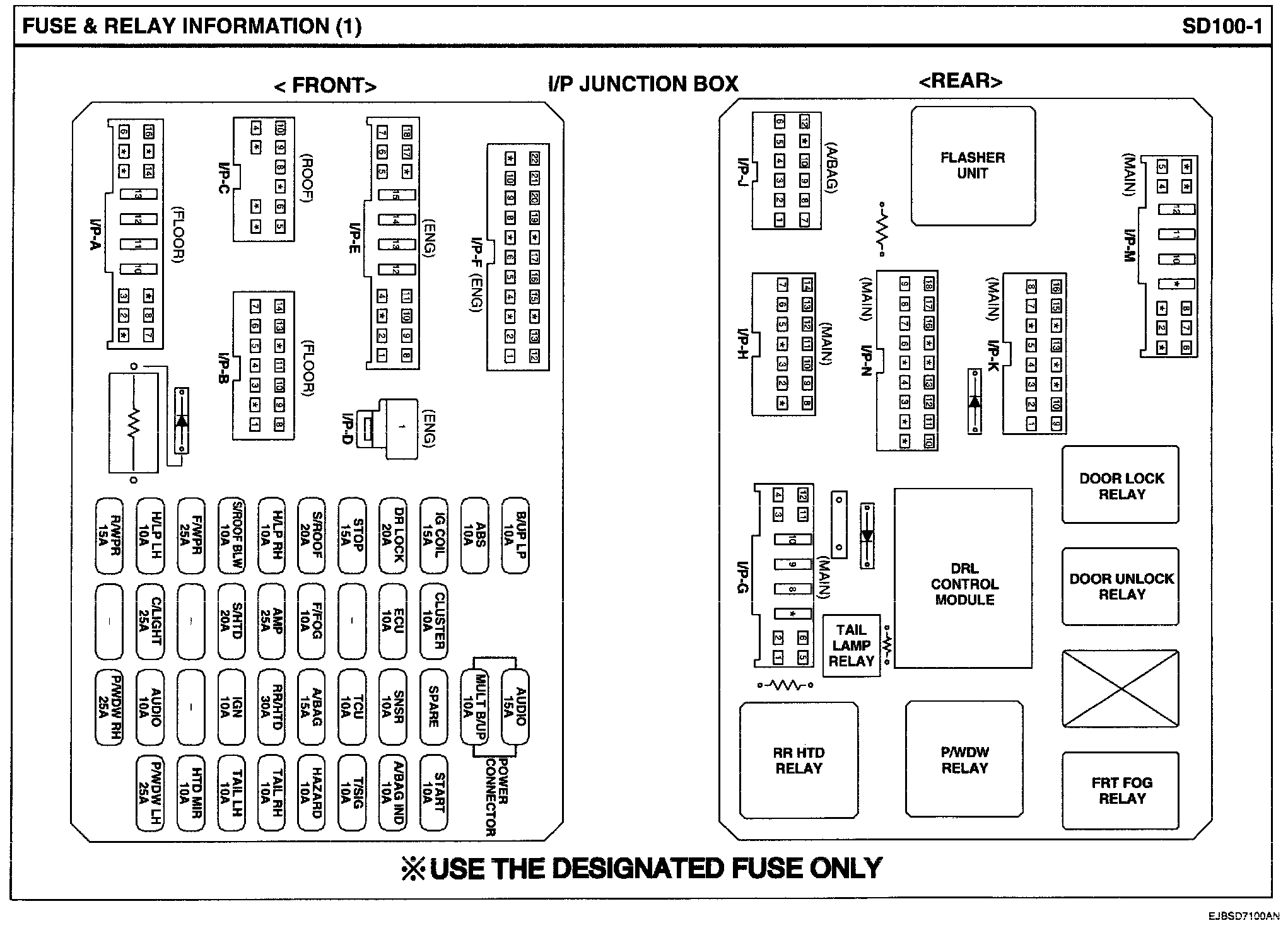

I/P Junction Box View:

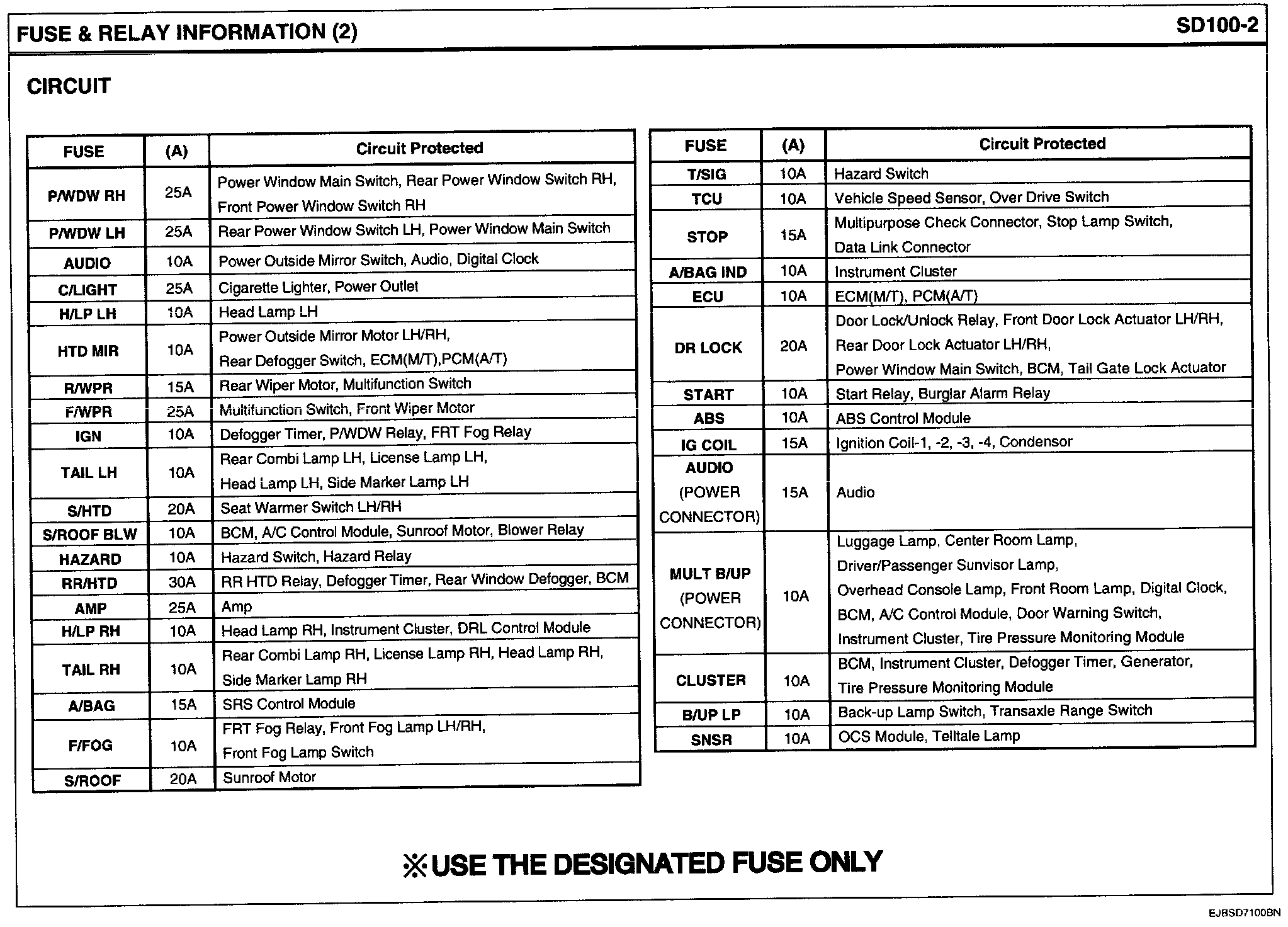

I/P Junction Box Circuit Details:

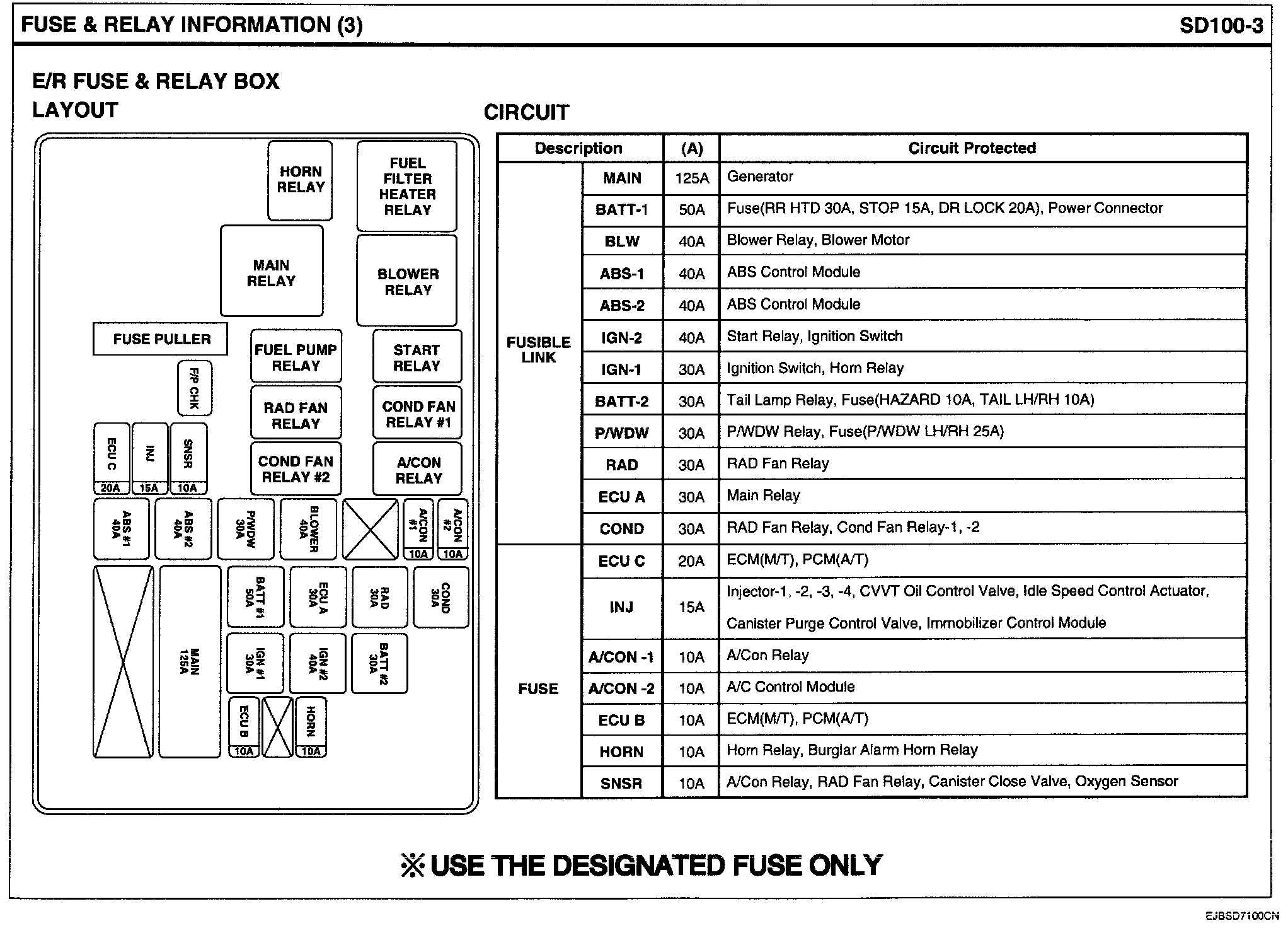

E/R Fuse & Relay Box View & Circuit Details:




ICM Relay Box View & Circuit Details:
