Home >> Kia >> 2007 >> Optima V6-2.7L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Head Assembly

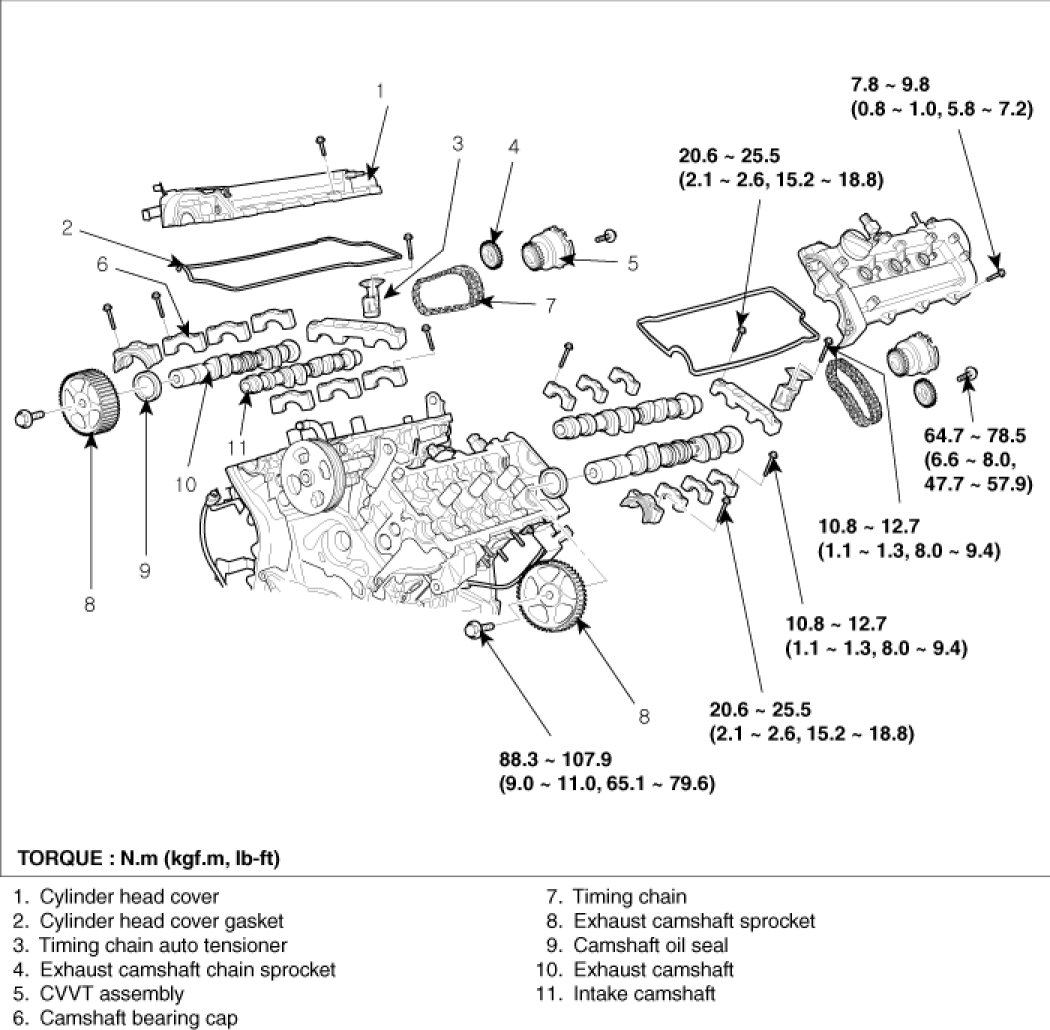

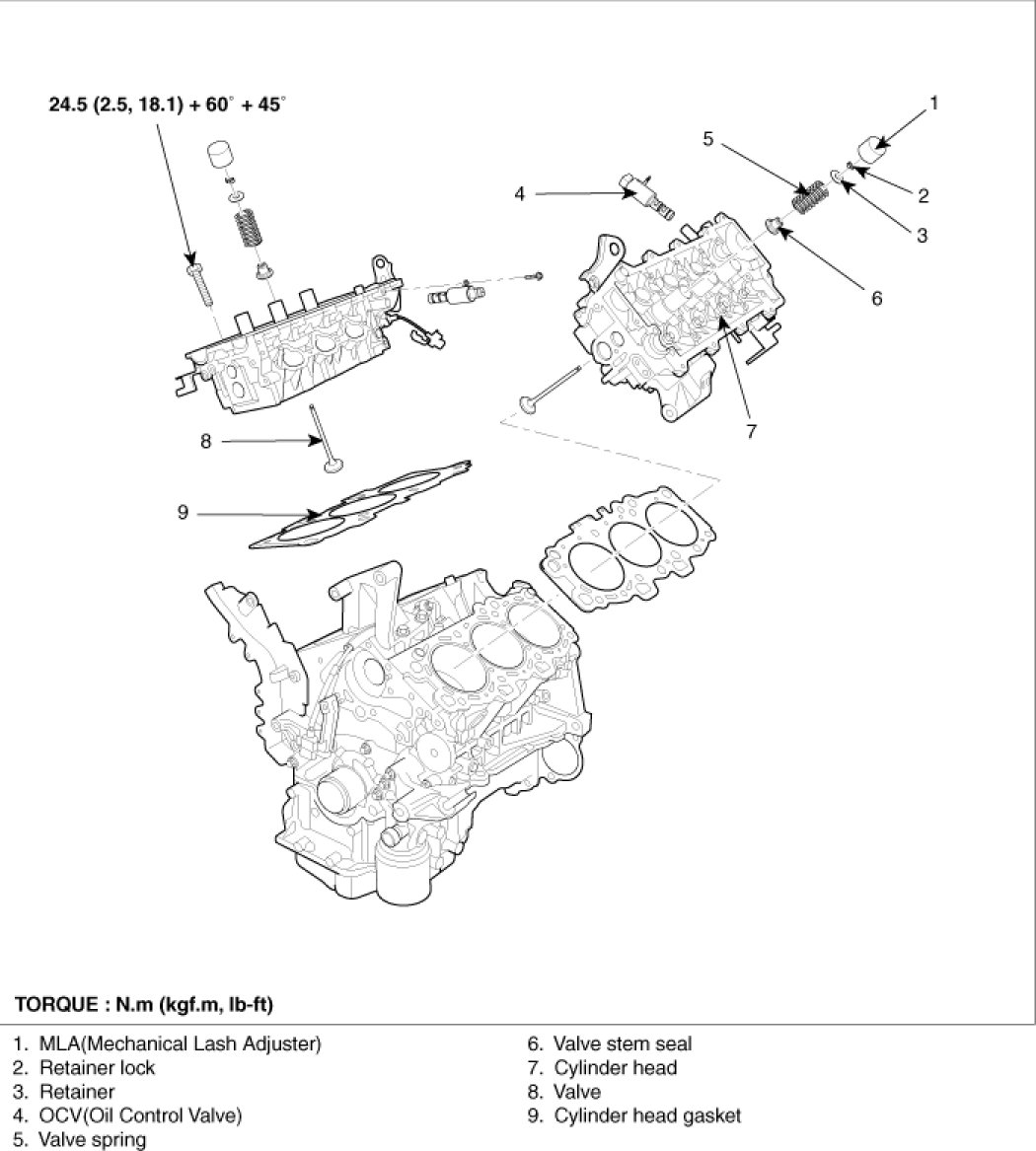

Cylinder Head Assembly




COMPONENTS
