Home >> Kia >> 2006 >> Sportage 2WD L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

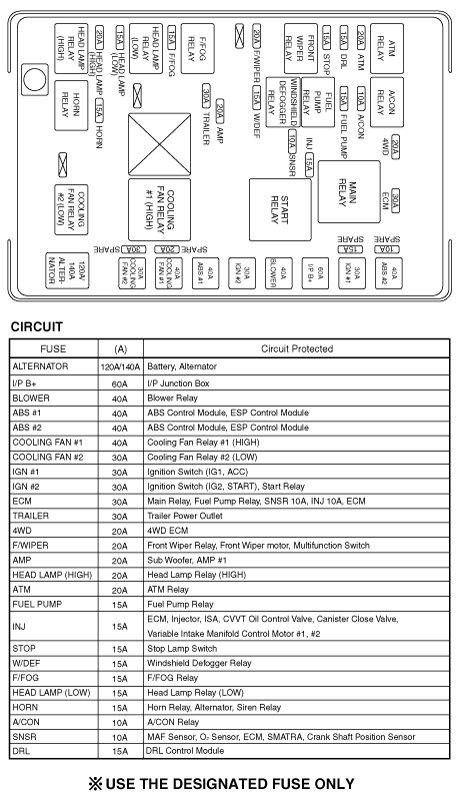

Relay Box (Engine Compartment)

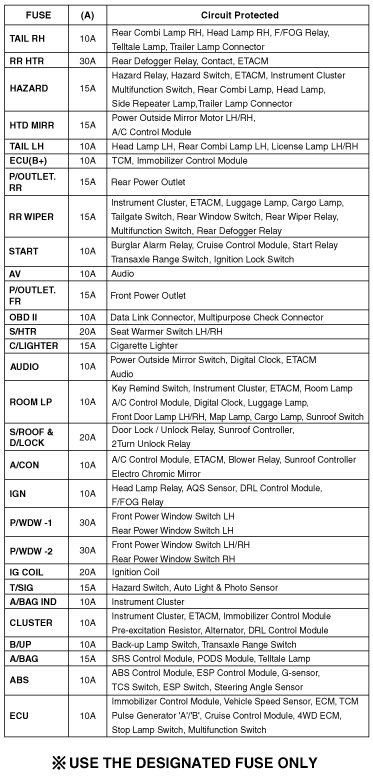

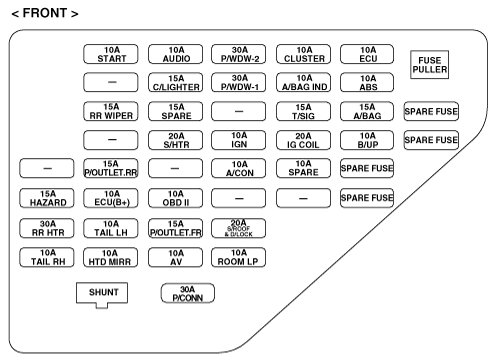

Relay Box (Passenger Compartment)
