Electronic Brake Control Module: Testing and Inspection

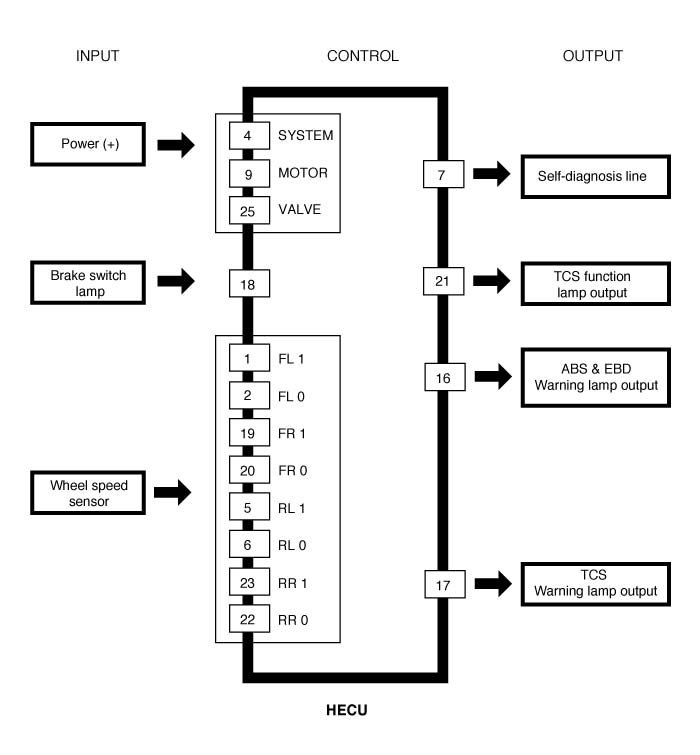

INPUT/OUTPUT DIAGRAM:

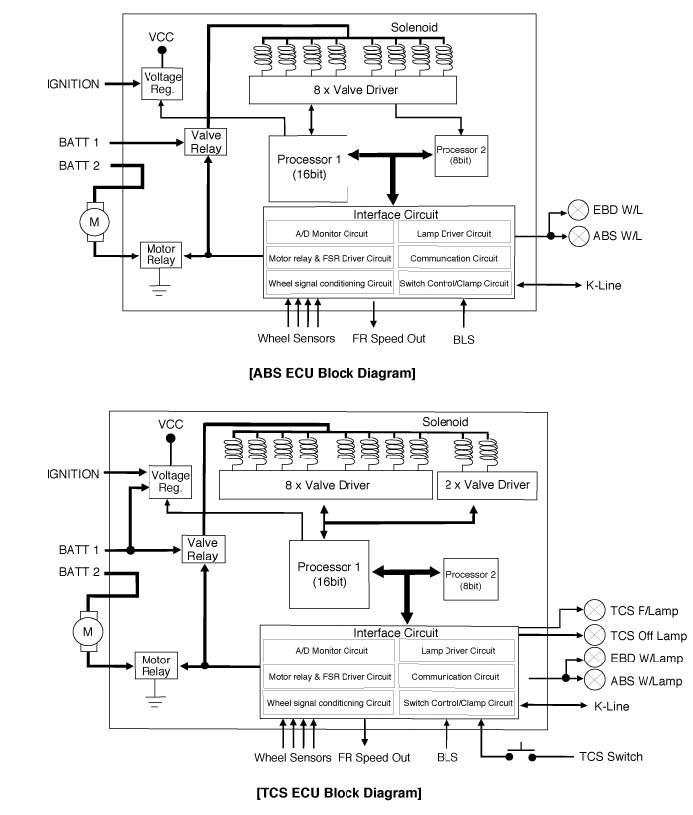

ABS ECU BLOCK DIAGRAM:
