Home >> Kia >> 2006 >> Sedona V6-3.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Heating and Air Conditioning >> System Specifications

System Specifications

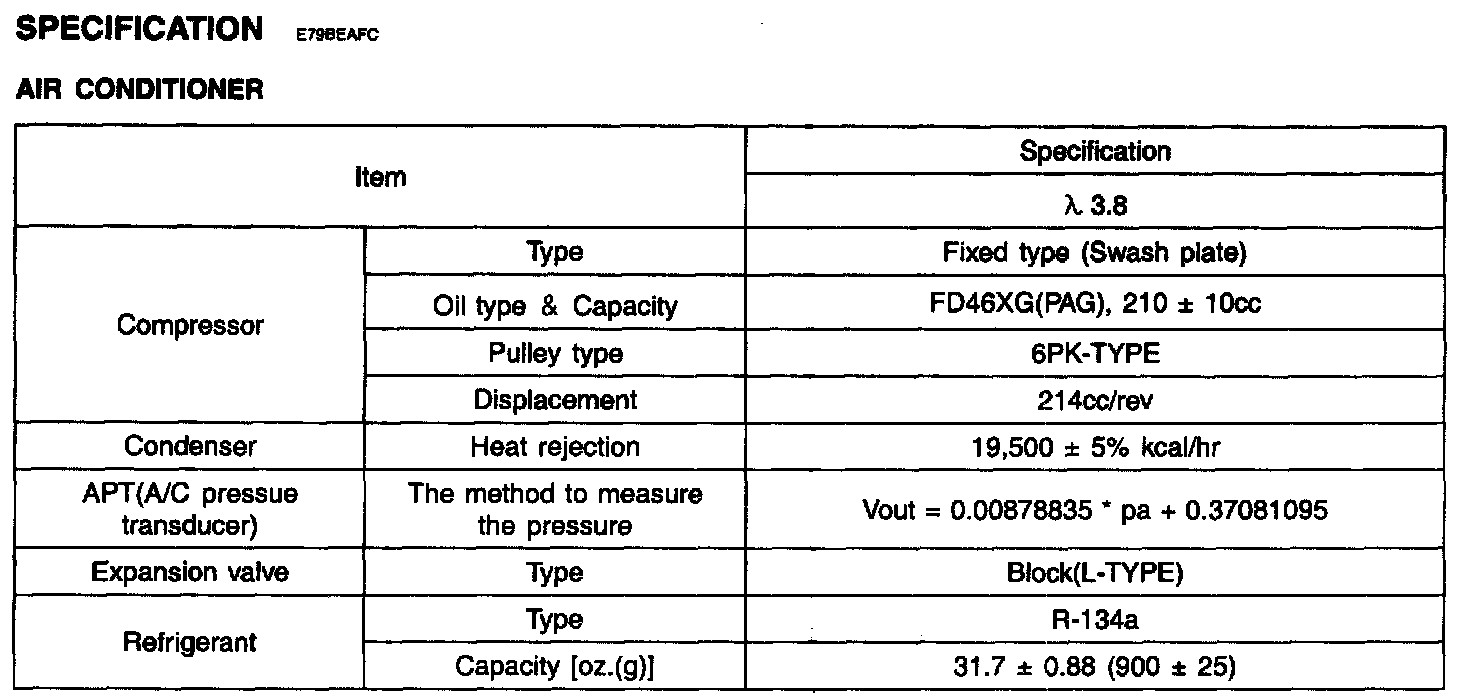

Specification - Air Conditioner:



Specification - Blower Unit:



Specification - Heater And Evaporator Unit:
