Cylinder Head

Cylinder Head
Install cylinder head bolts.
Do not apply engine oil on the threads and under the heads of the cylinder head bolts.

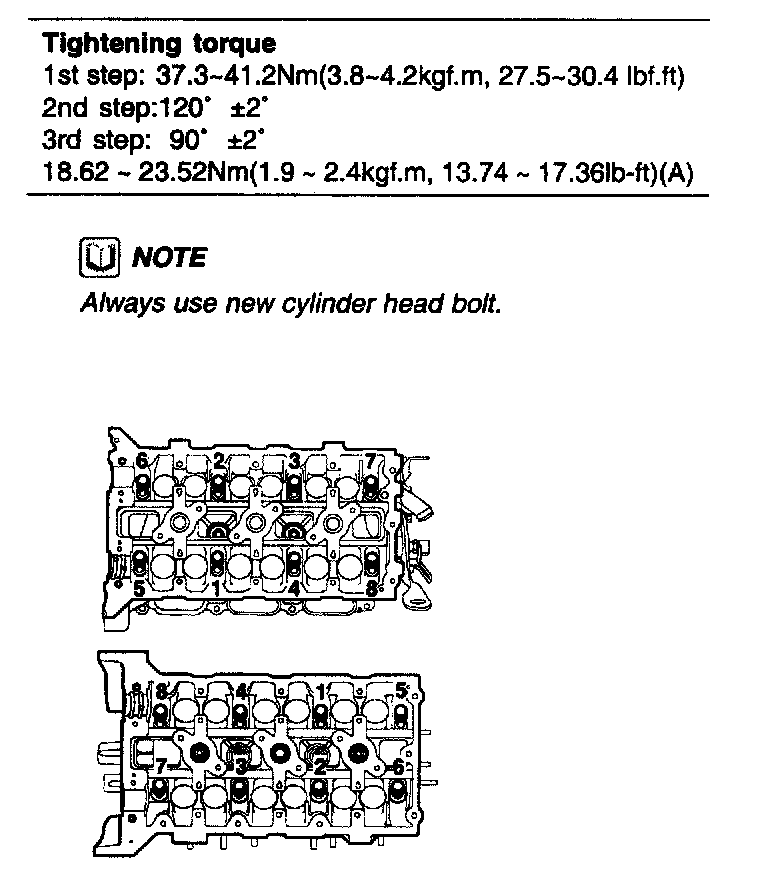

Using SST (09221-4A000), install and tighten the cylinder head bolts and plate washers, in several passes, in the sequence shown.
Tightening torque
1st step 37.3 - 41.2 Nm (3.8 - 4.2 kgf.m, 27.5 - 30.4 ft. lbs.)
2nd step 120° ± 2°
3rd step 90° ± 2°

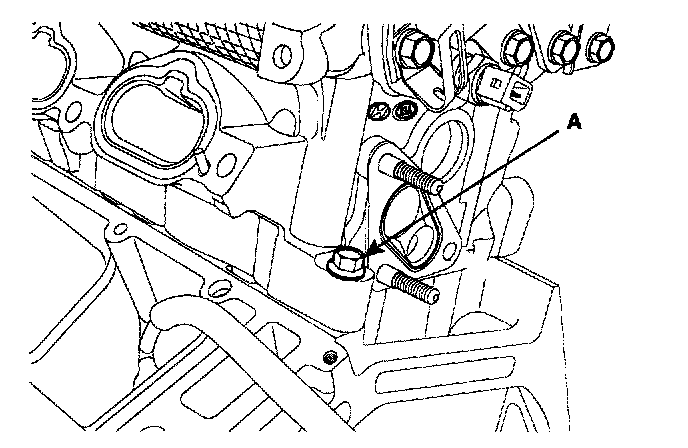

18.62 - 23.52 Nm (1.9 - 2.4 kgf.m, 13.74 - 17.36 ft. lbs.) (A)

NOTE: Always use new cylinder head bolt.
