Input/Output Monitoring

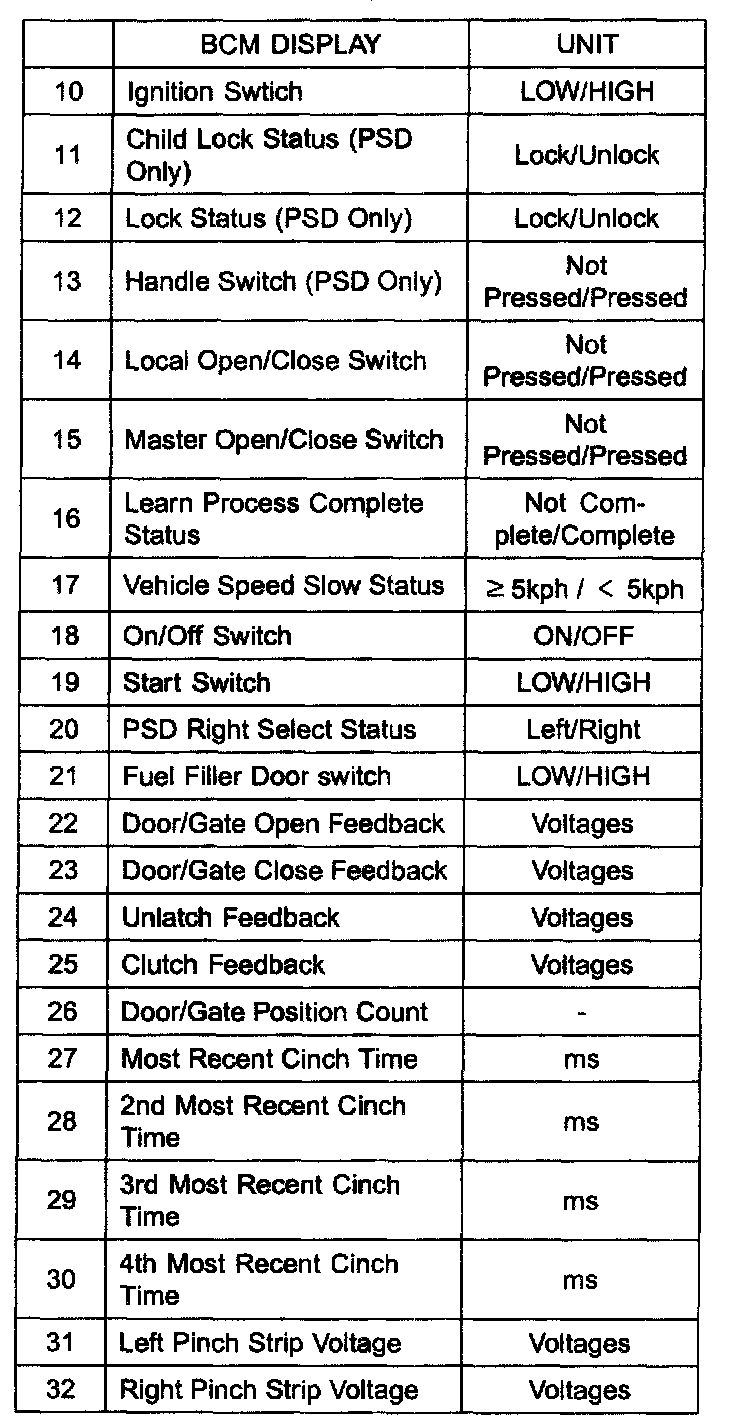

Input/Output Monitoring (Part 1):




Input/Output Monitoring (Part 2):




INPUT/OUTPUT MONITORING
