Home >> Kia >> 2006 >> Sedona V6-3.8L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Door Module >> Locations

Door Module: Locations

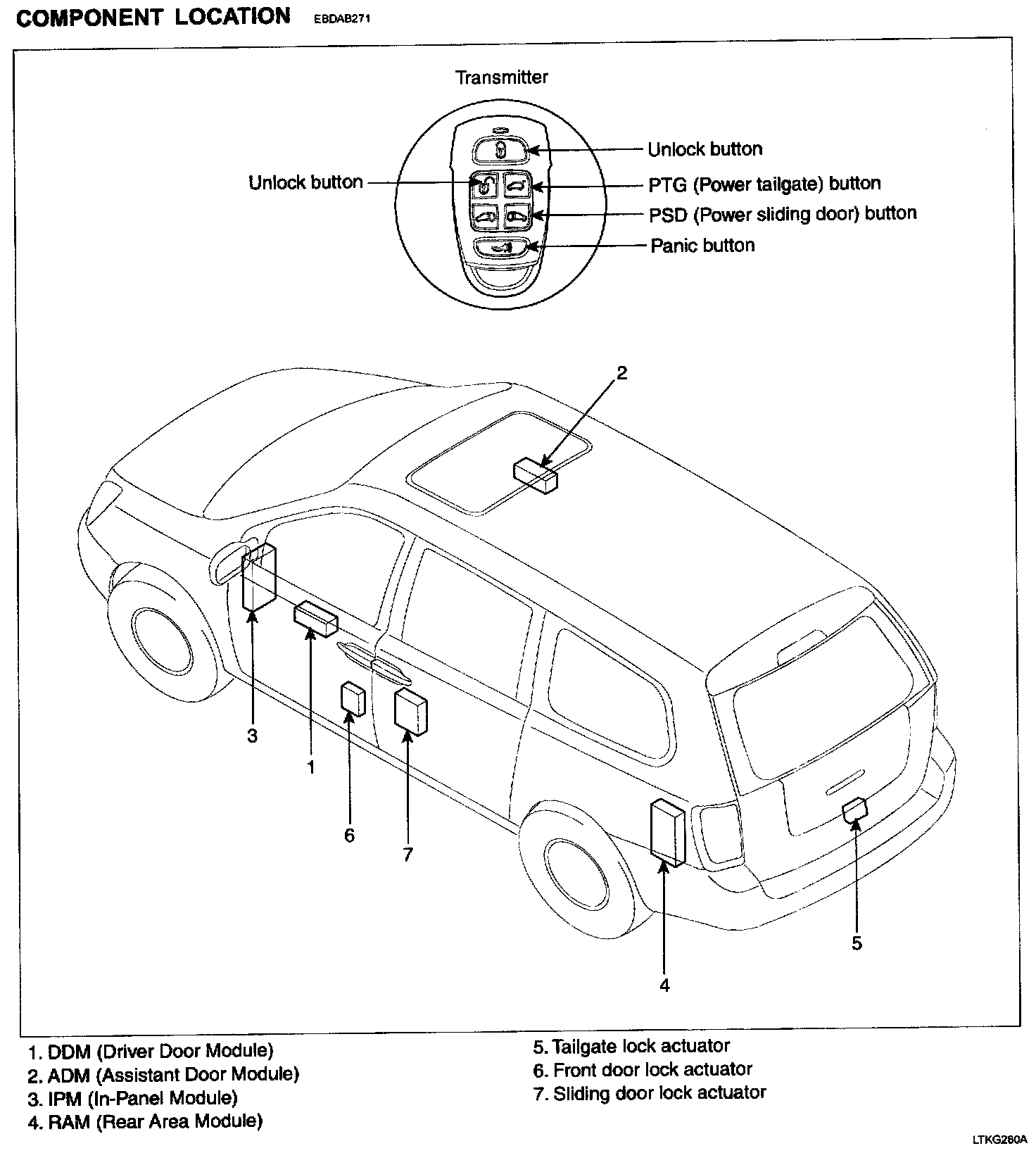

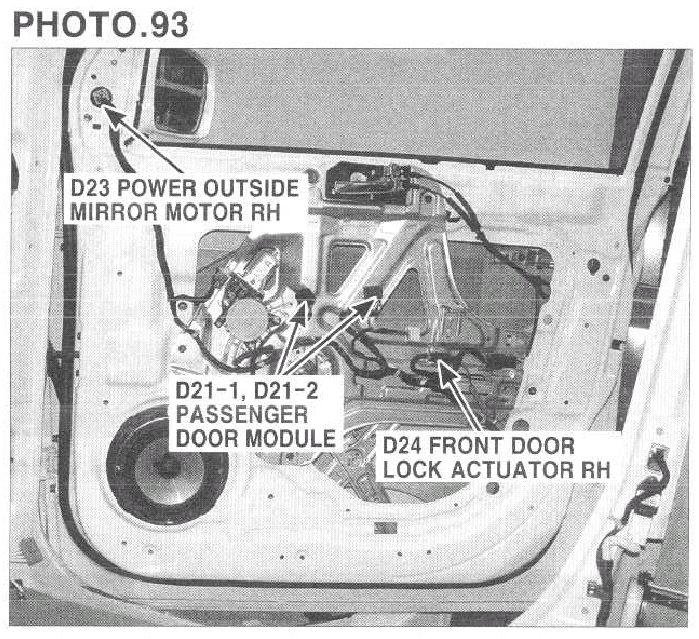

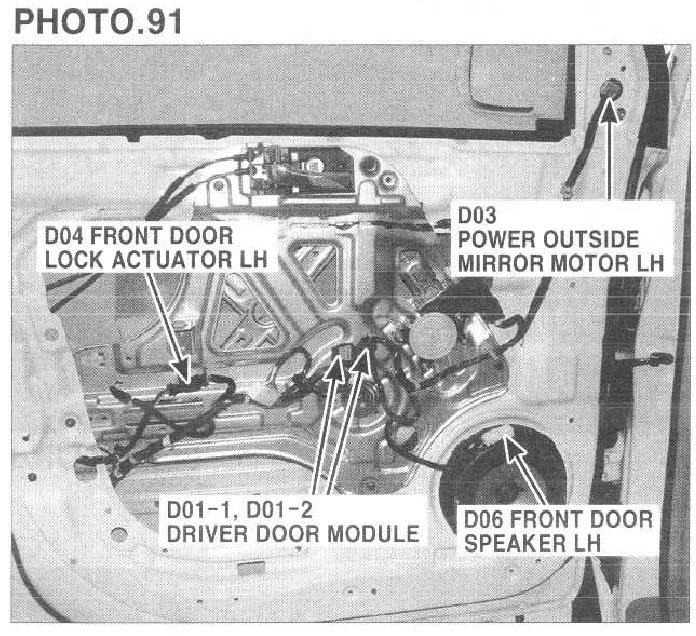

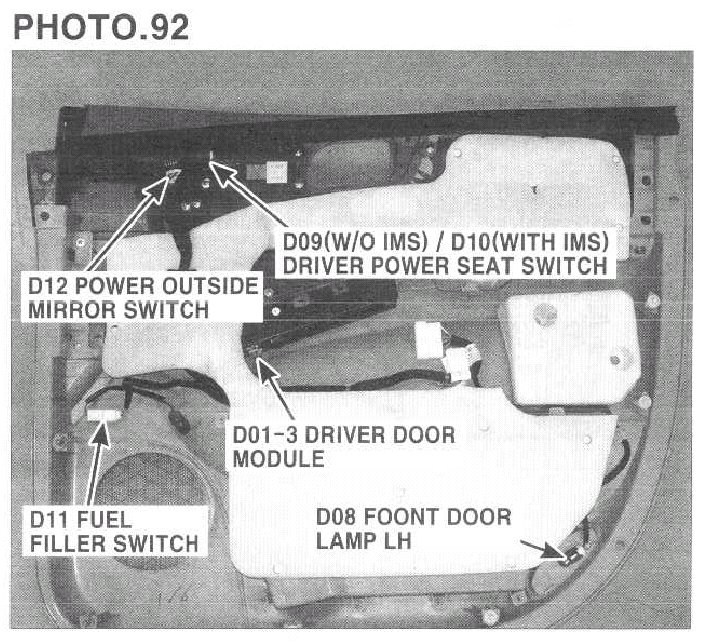

Power Door Locks Component Location:

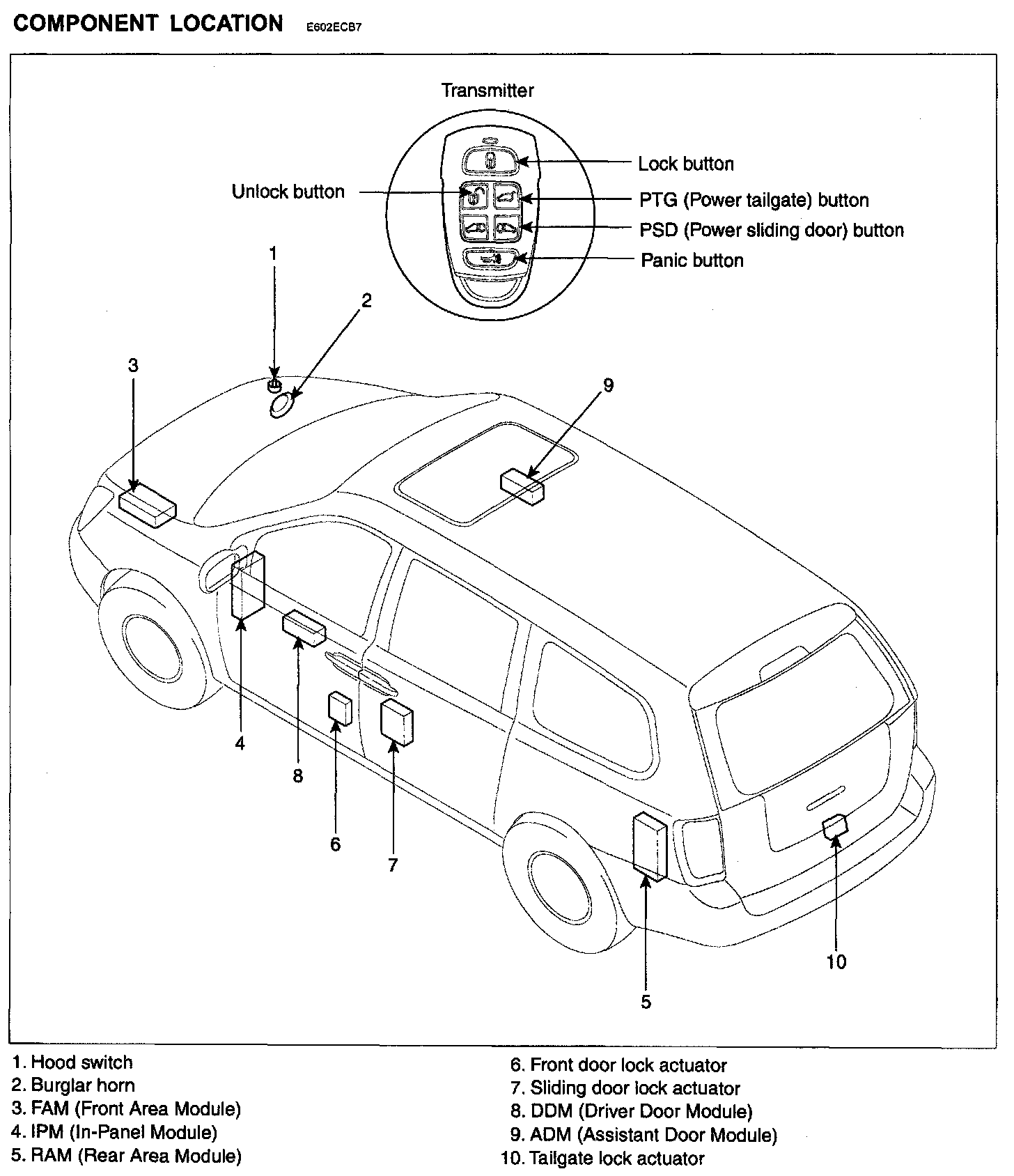

Keyless Entry And Burglar Alarm Component Location:
