Home >> Kia >> 2006 >> Rio L4-1.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations

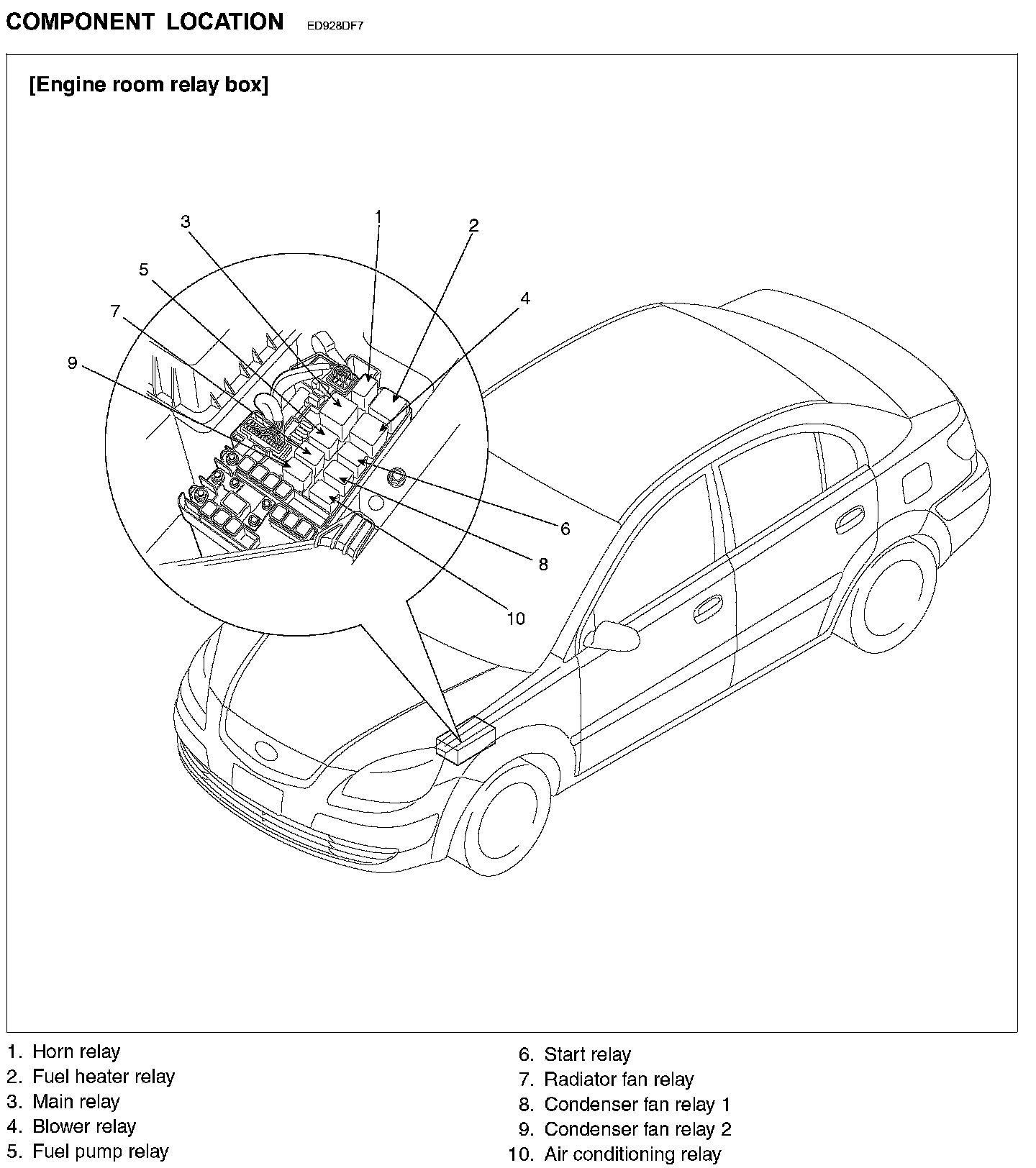

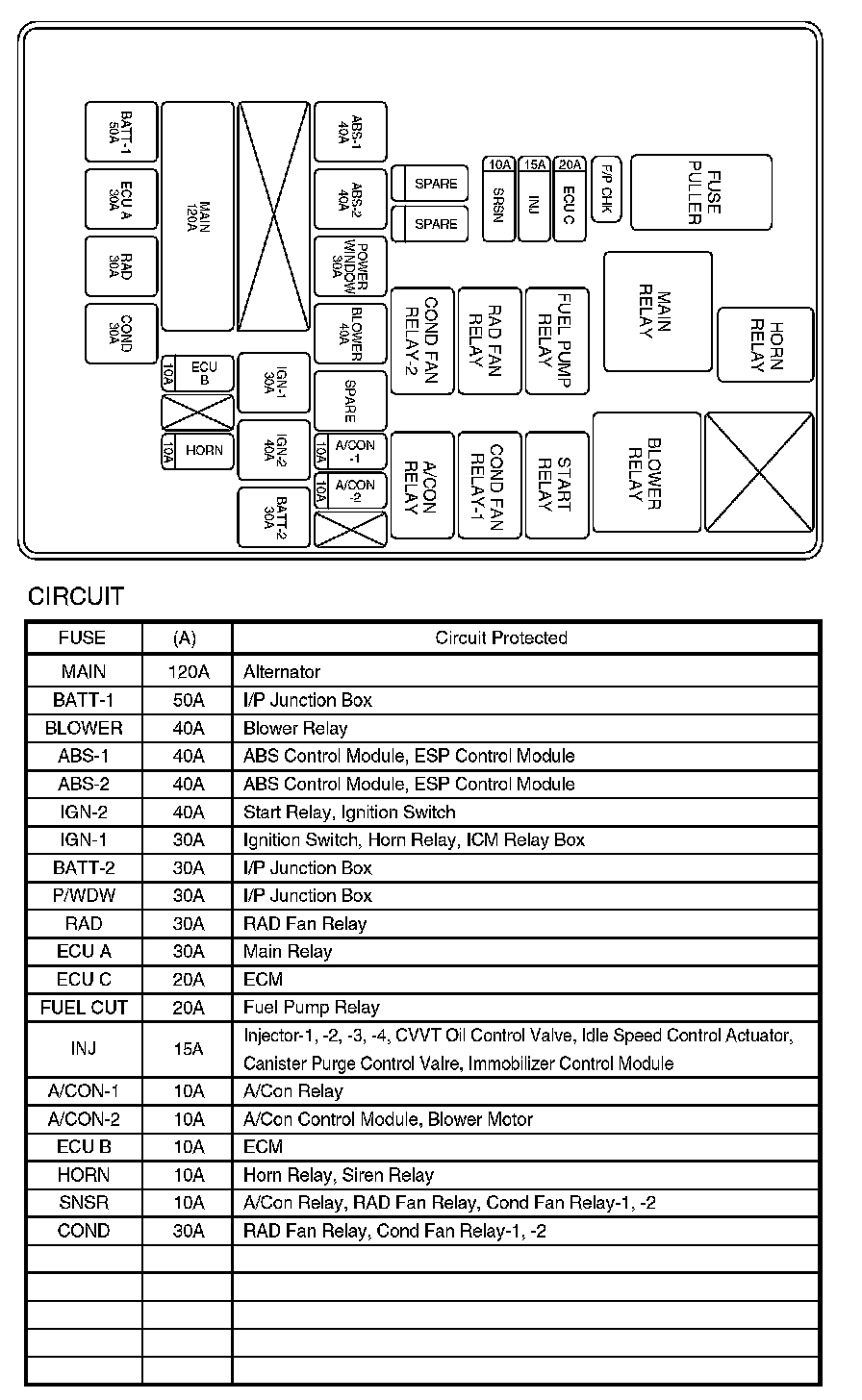

Engine Room Relay Box

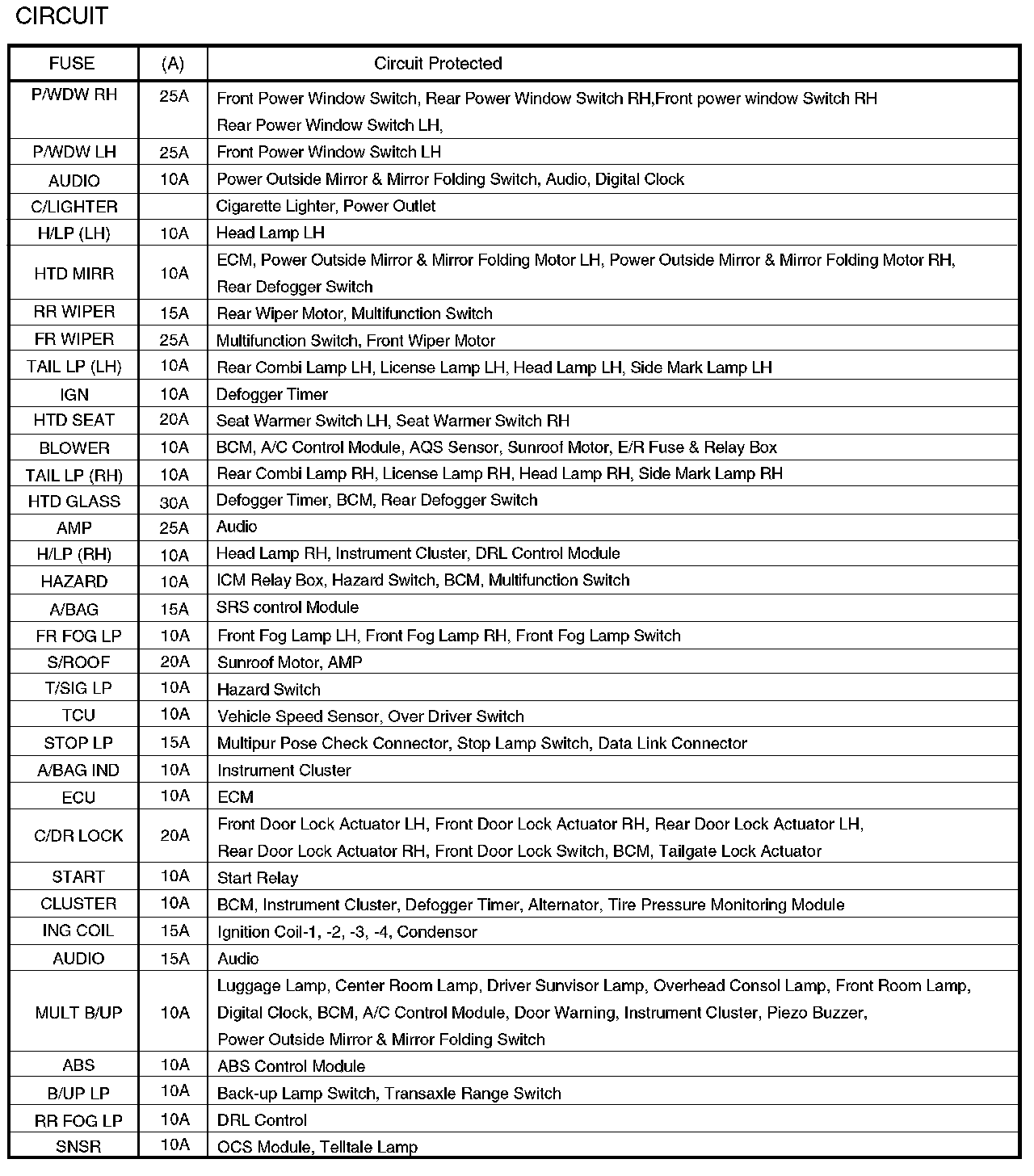

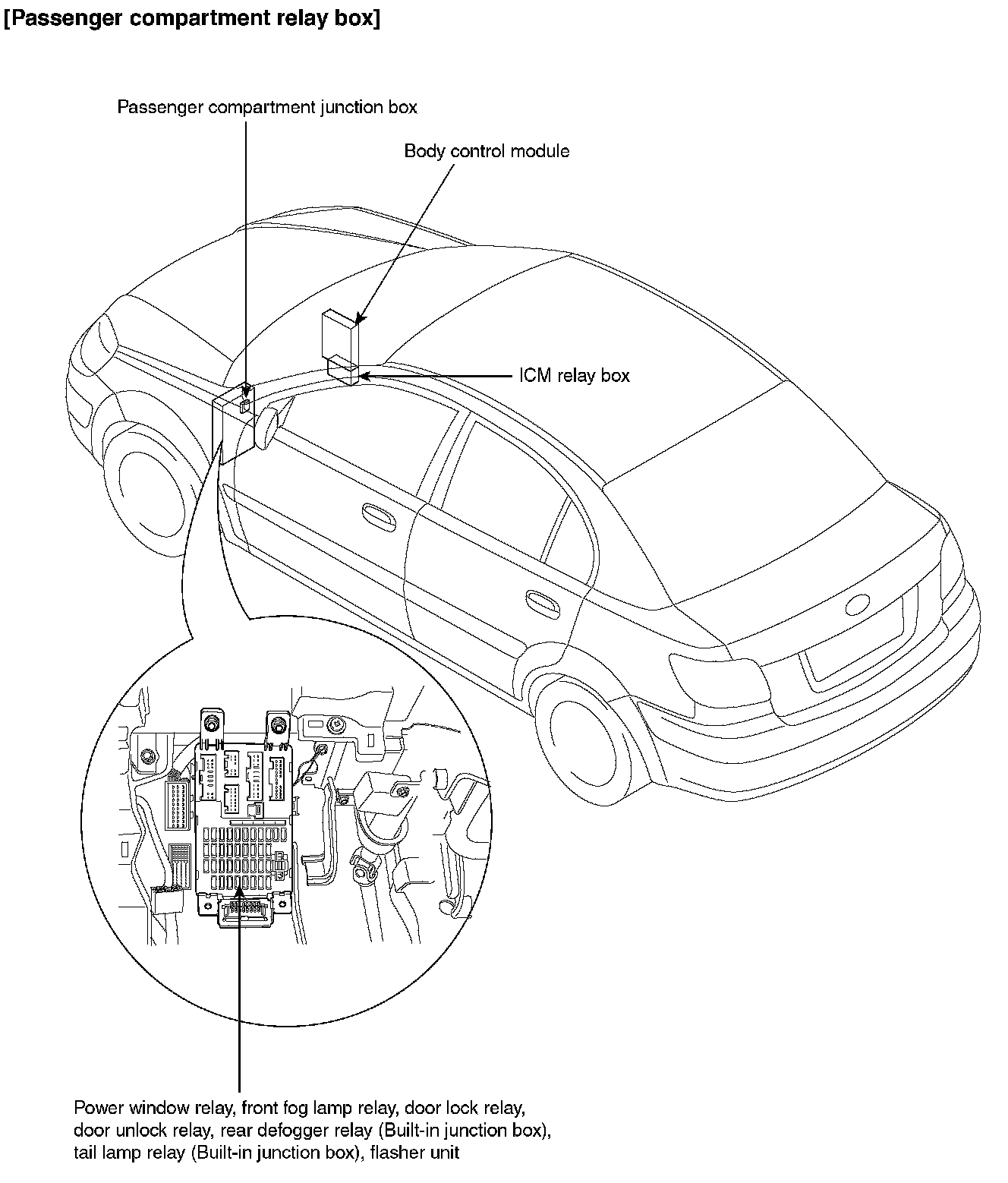

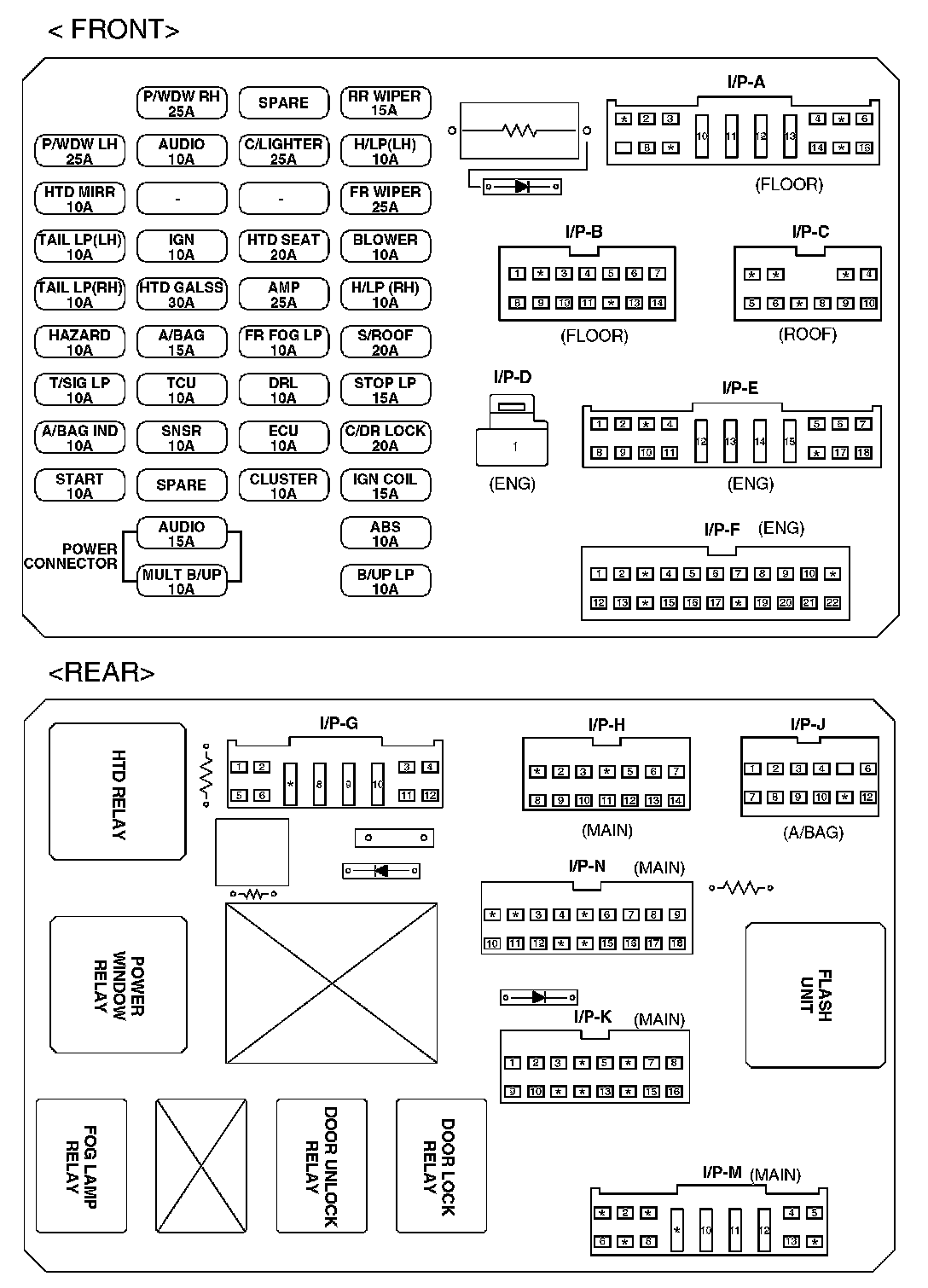

Passenger Compartment Relay Box
