Fuse: Locations

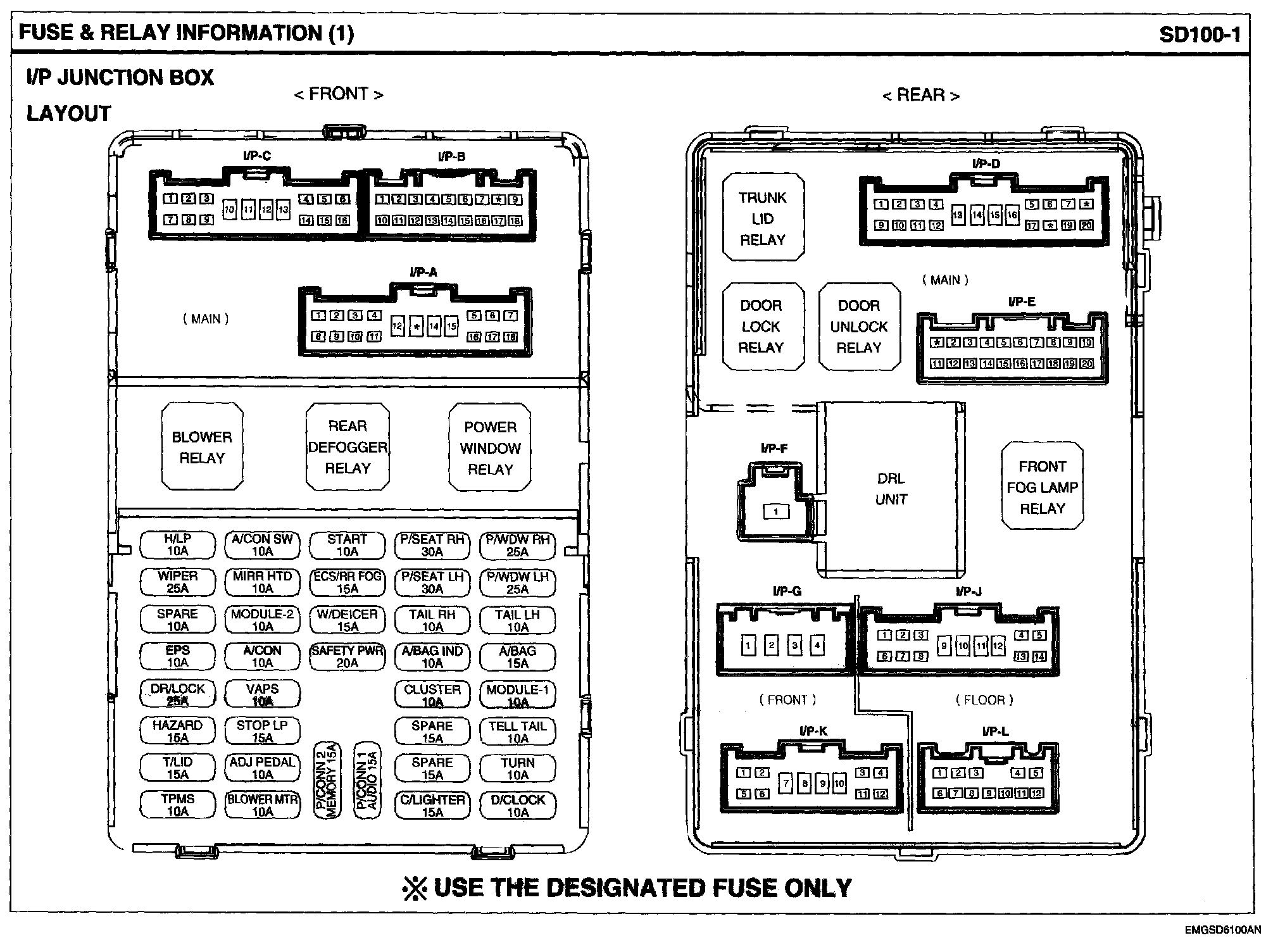

I/P Junction Box View:

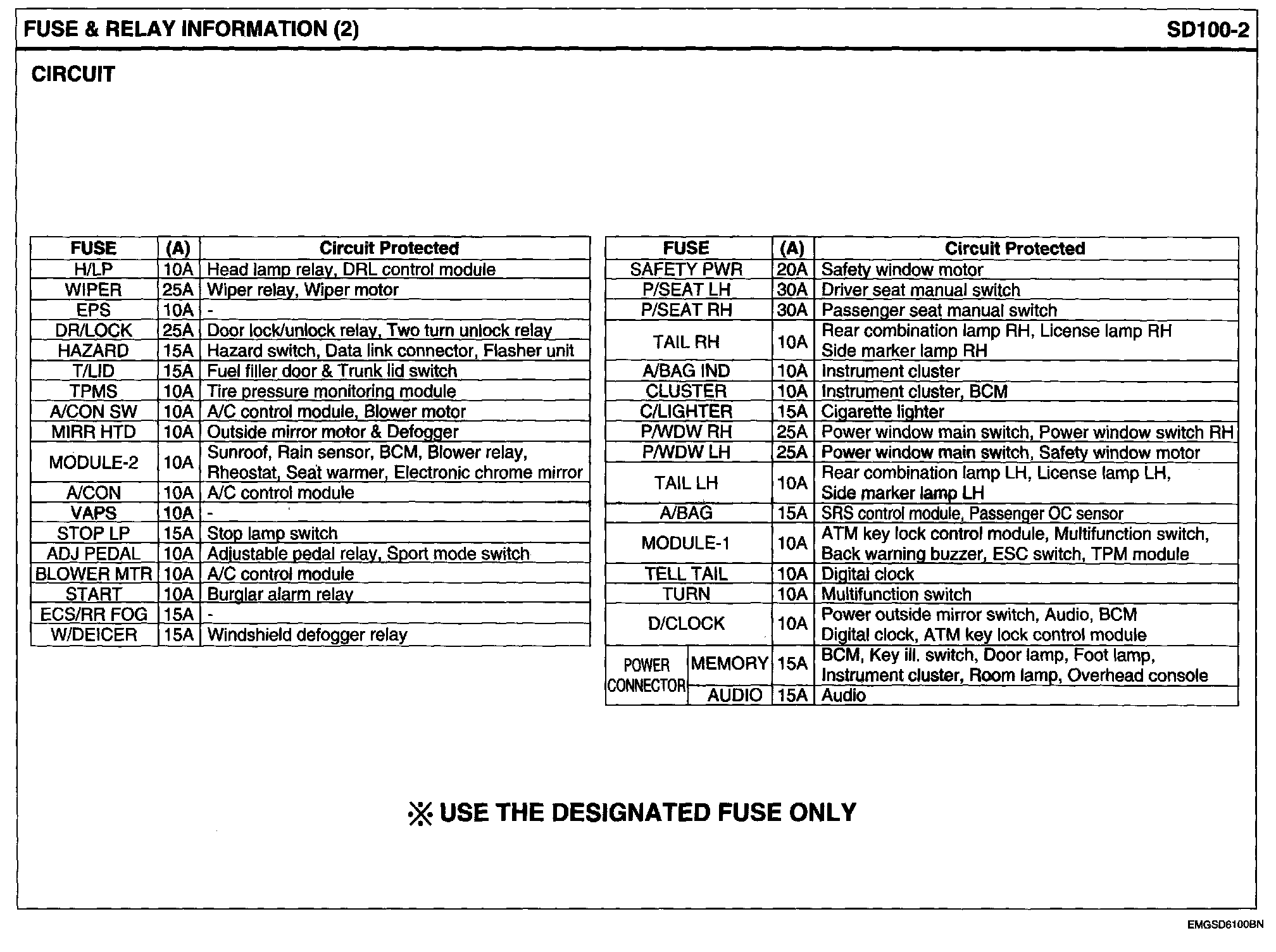

I/P Junction Box Circuit Details:

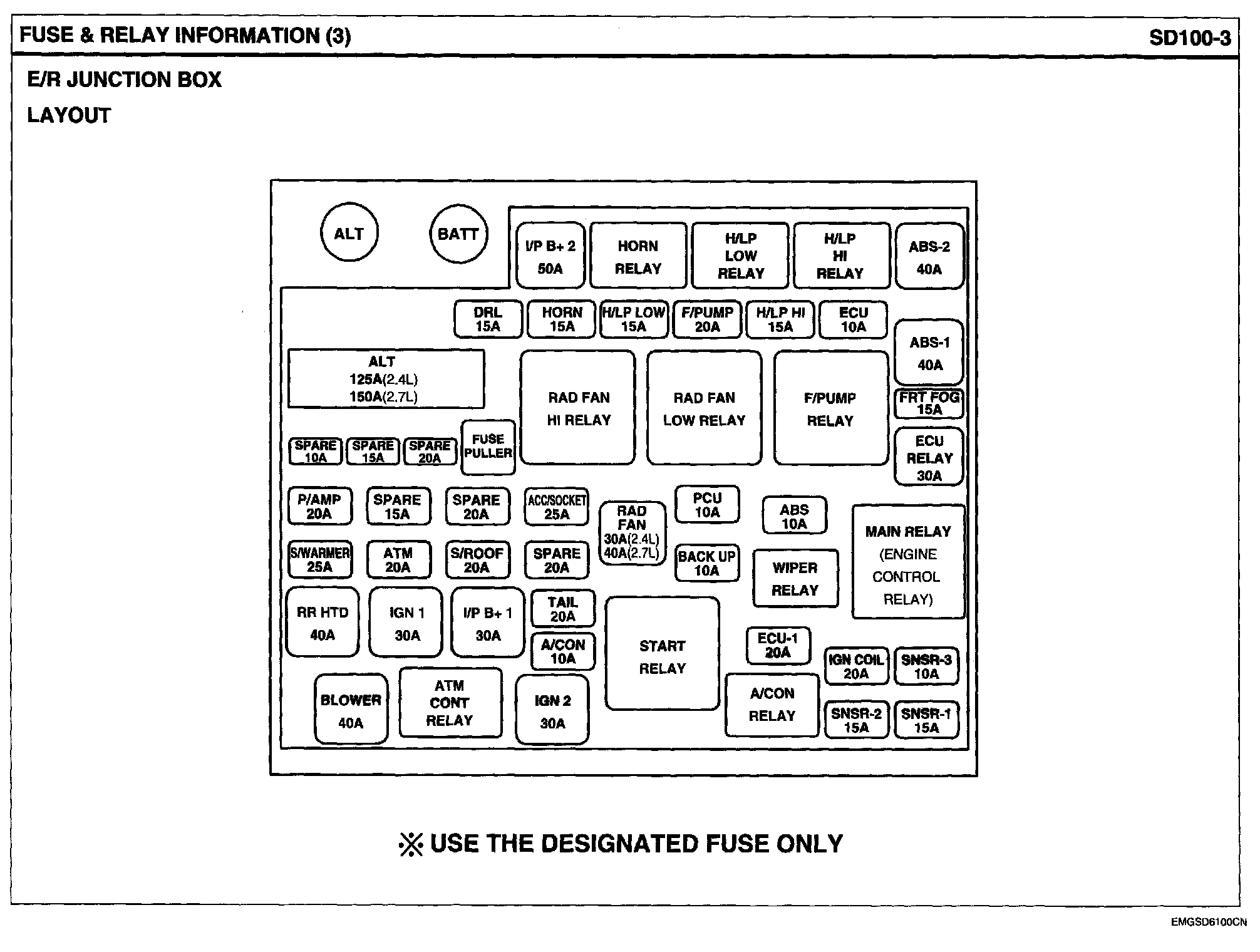

E/R Junction Box View:

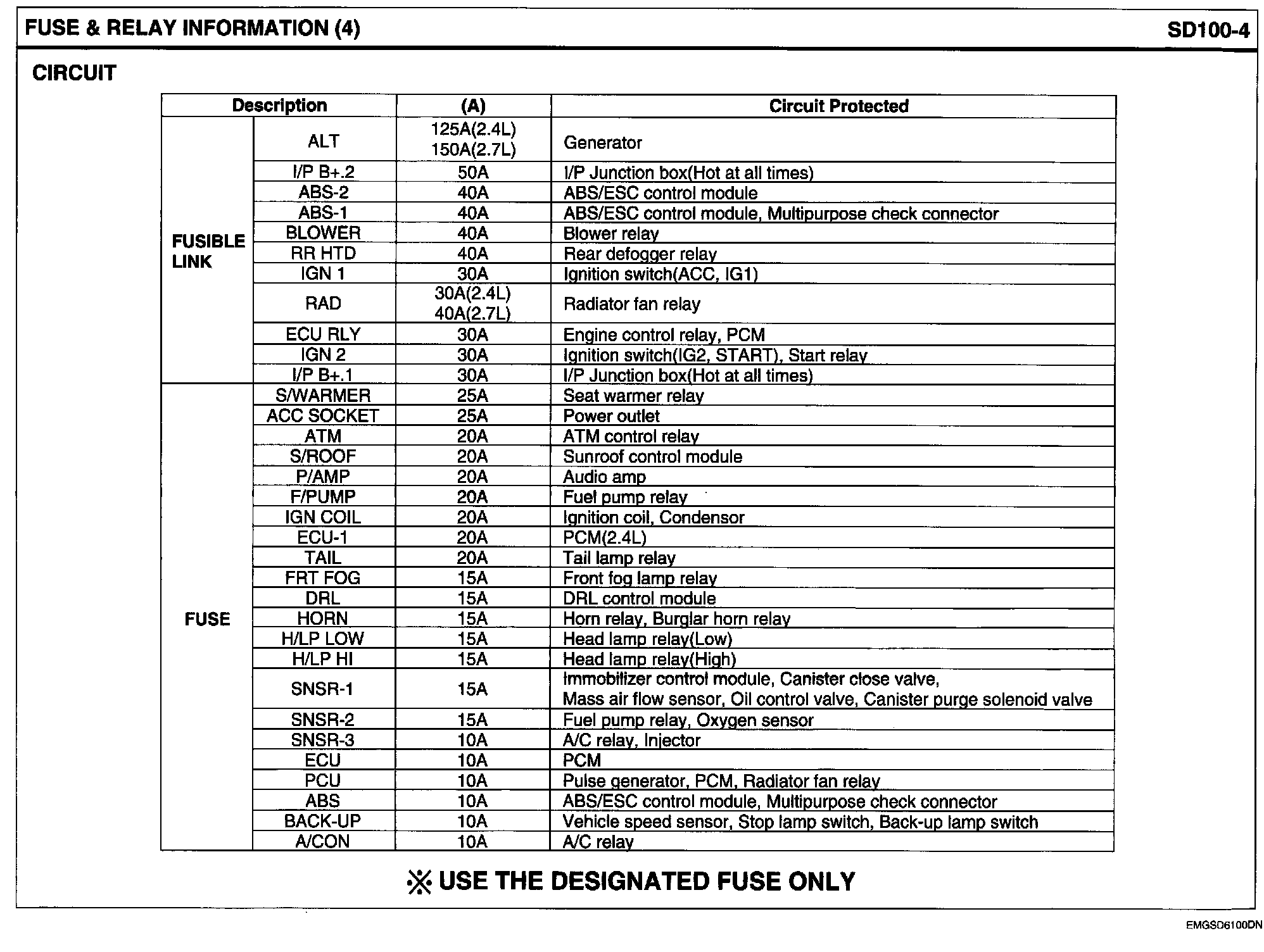

E/R Junction Box Circuit Details:

ICM Relay Box View:

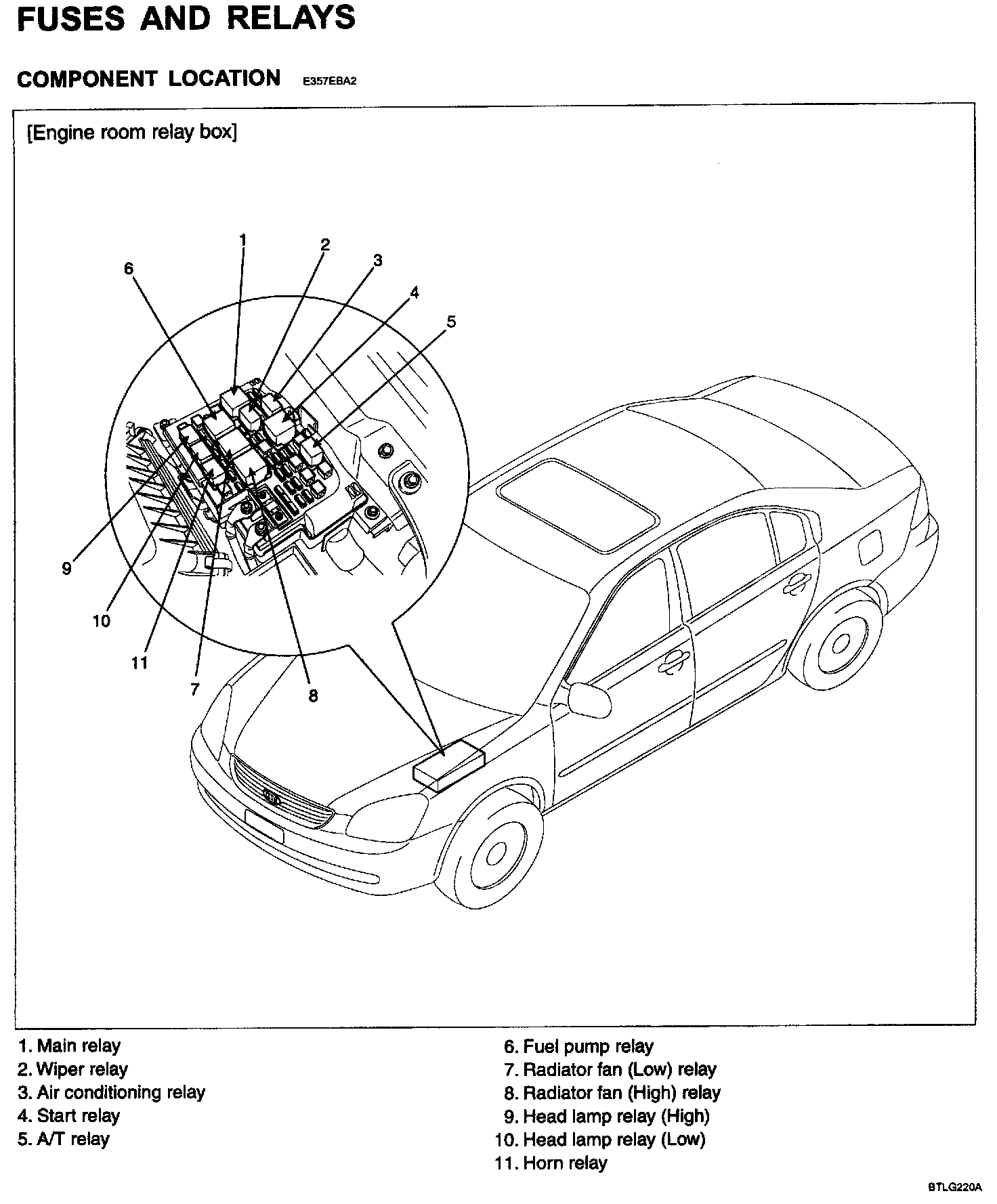

Fuses And Relays (Engine Room) - Component Location:

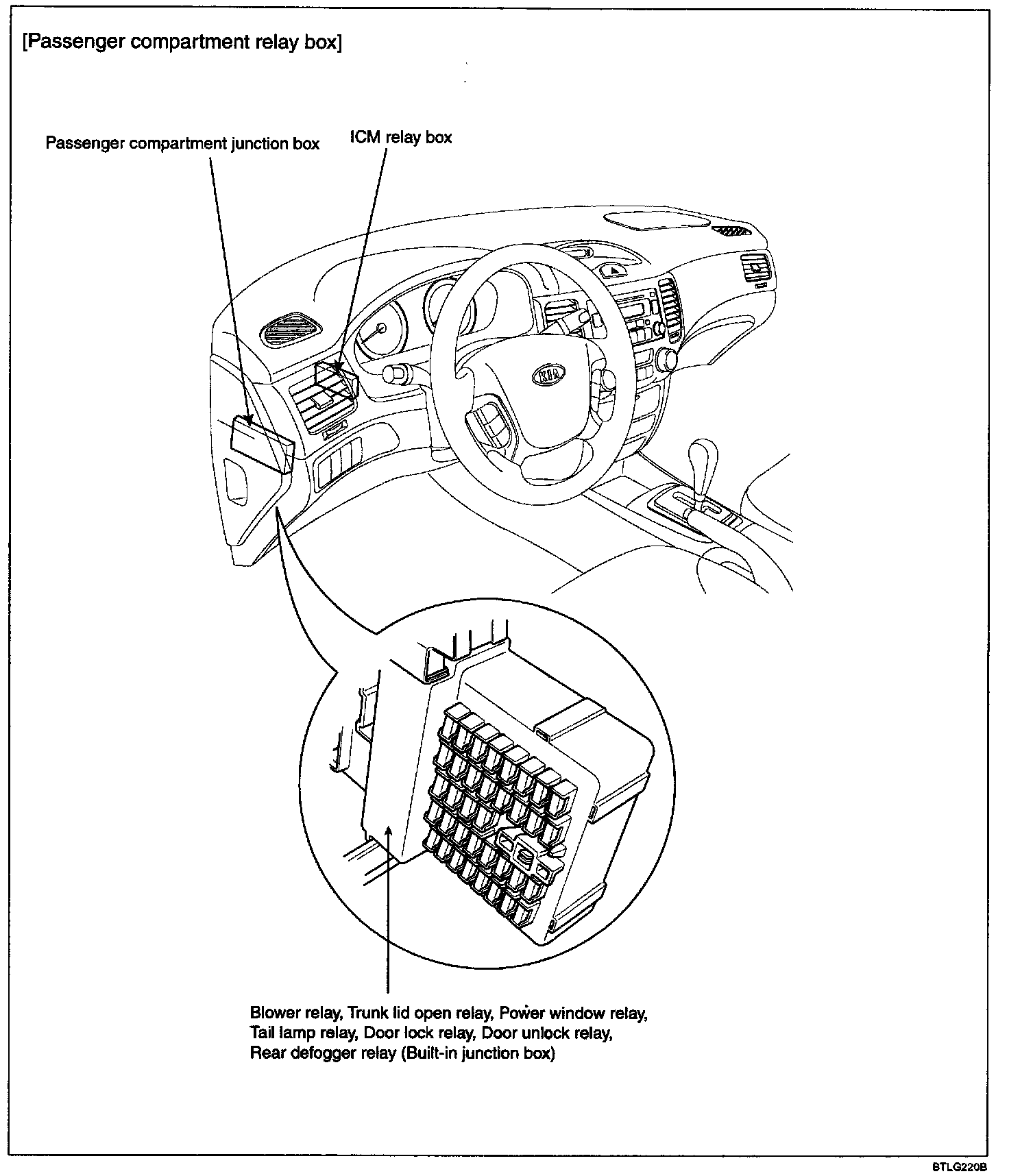

Fuses And Relays (Passenger Room) - Component Location:
