Optima V6-2.7L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Manual A/C
Manual A/C

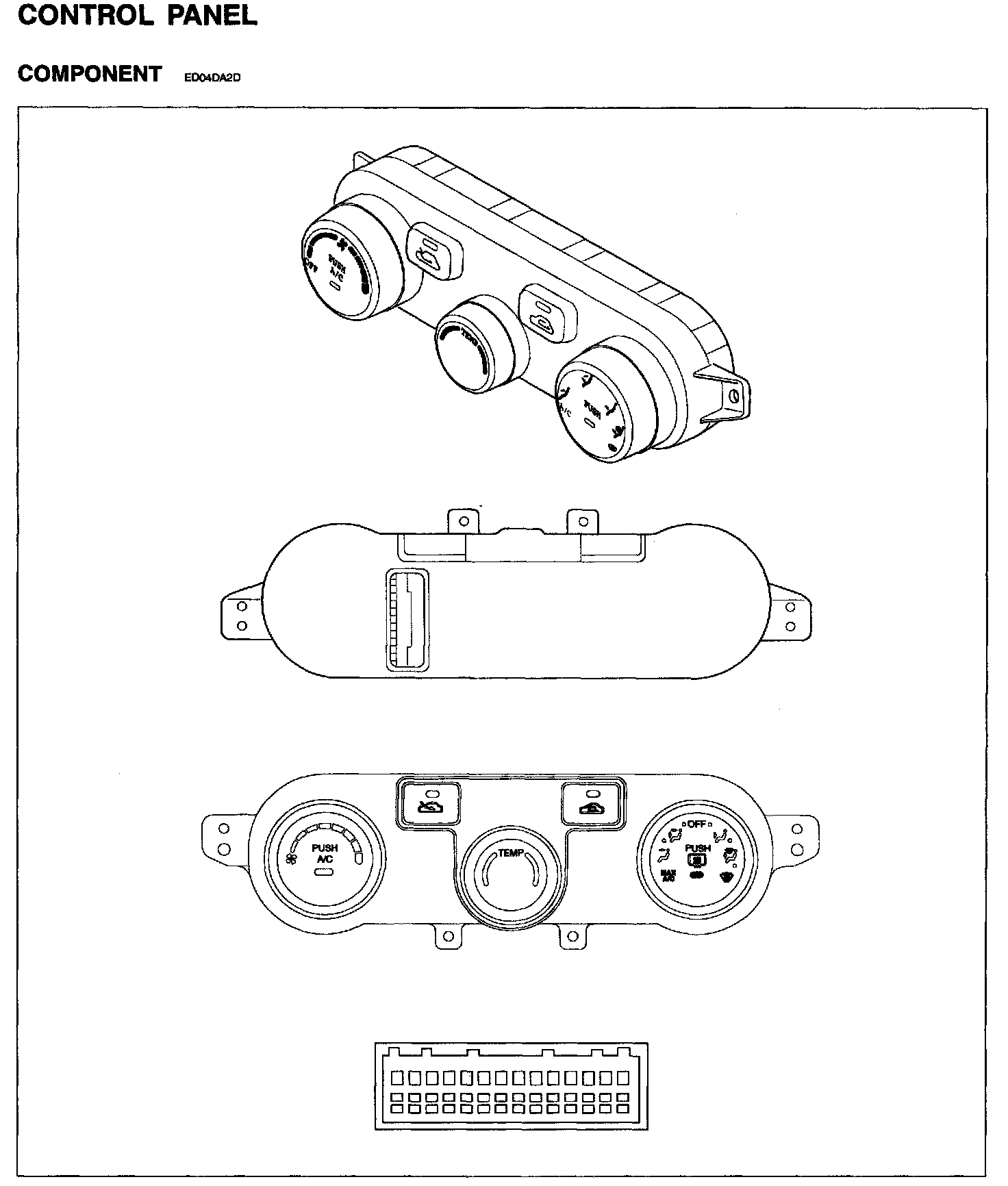

Control Panel (Manual) - Component:

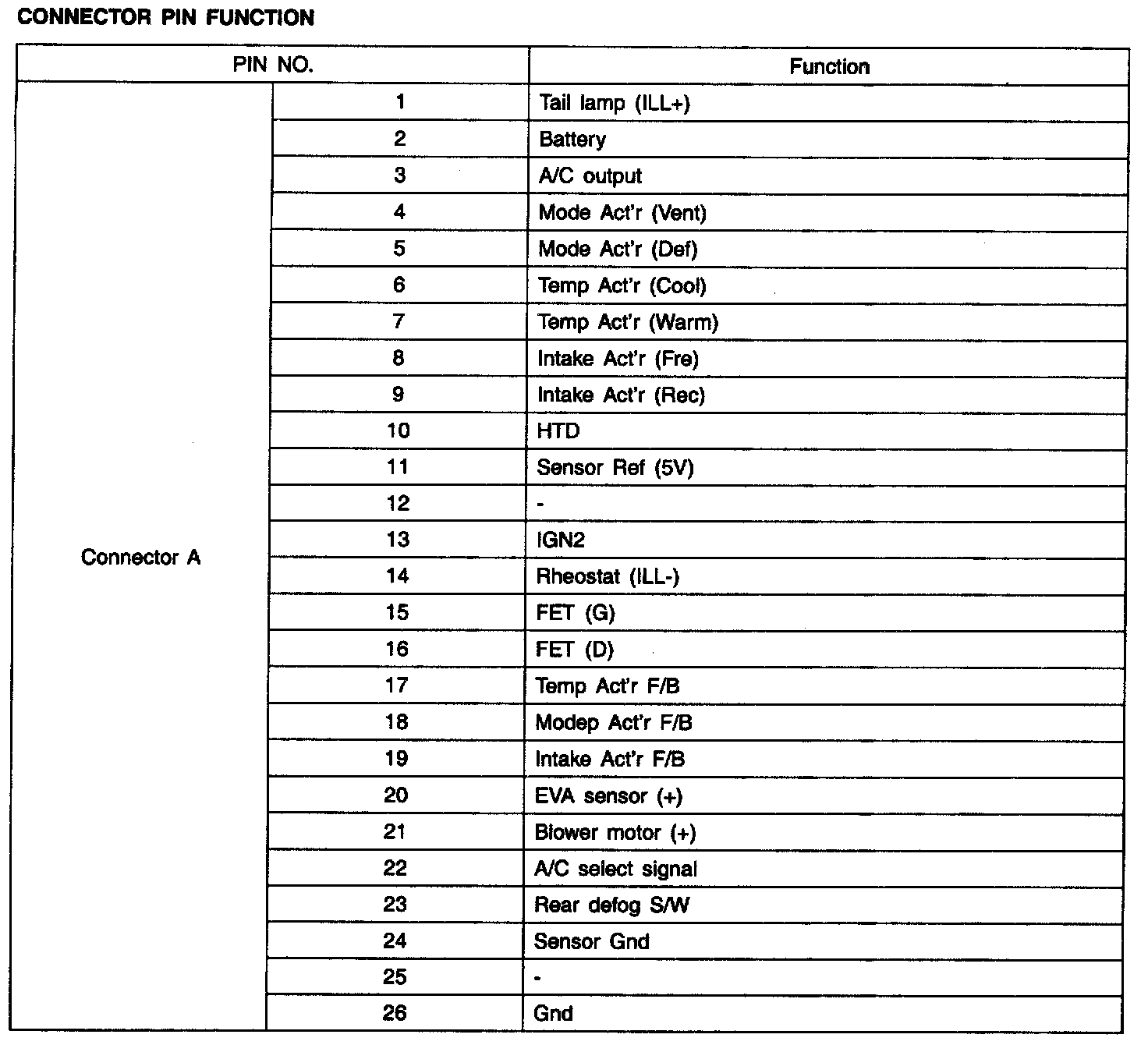

Connector Pin Function:
