Control Assembly, HVAC
>>
Automatic A/C
Automatic A/C

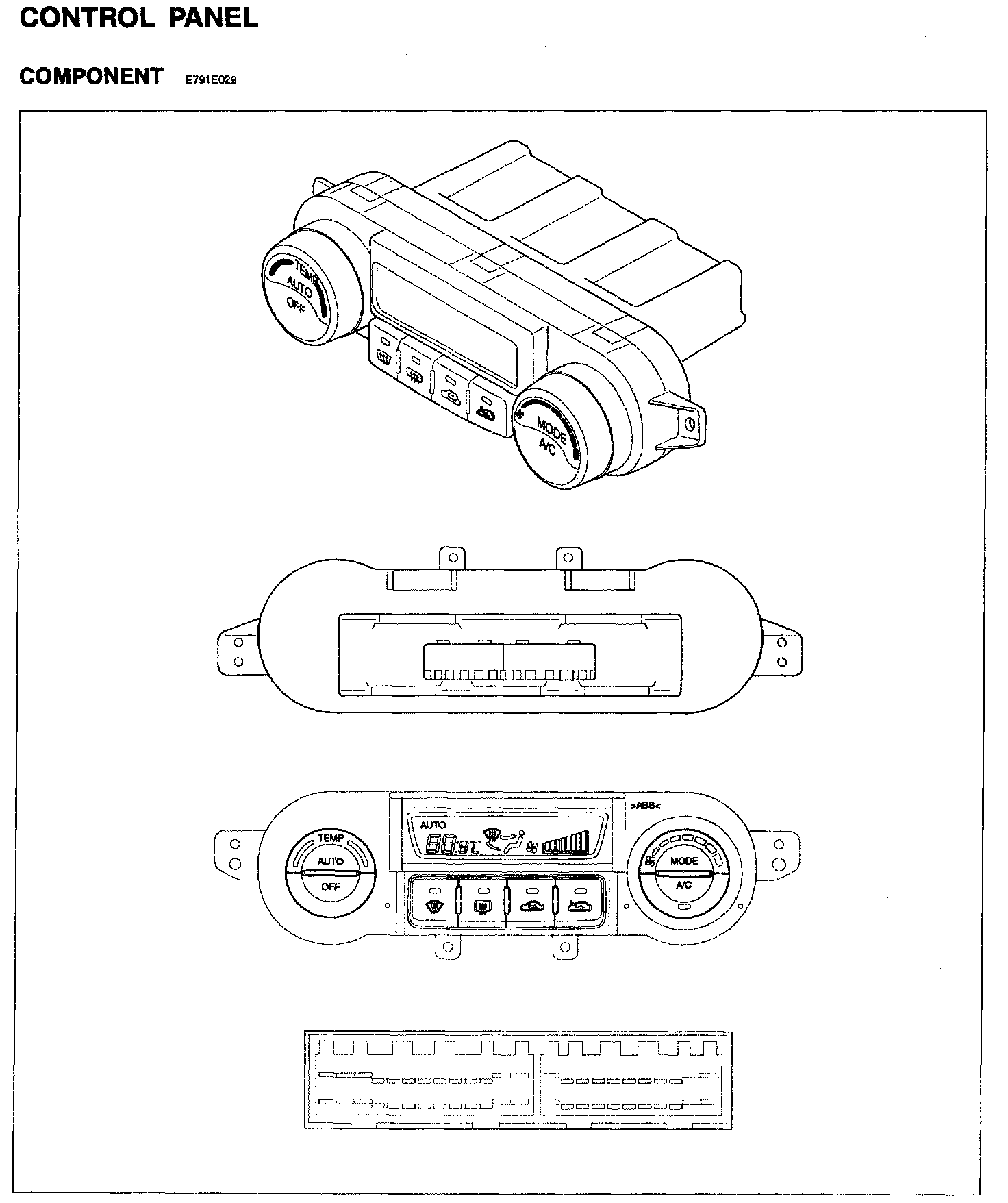

Control Panel (Automatic) - Component:

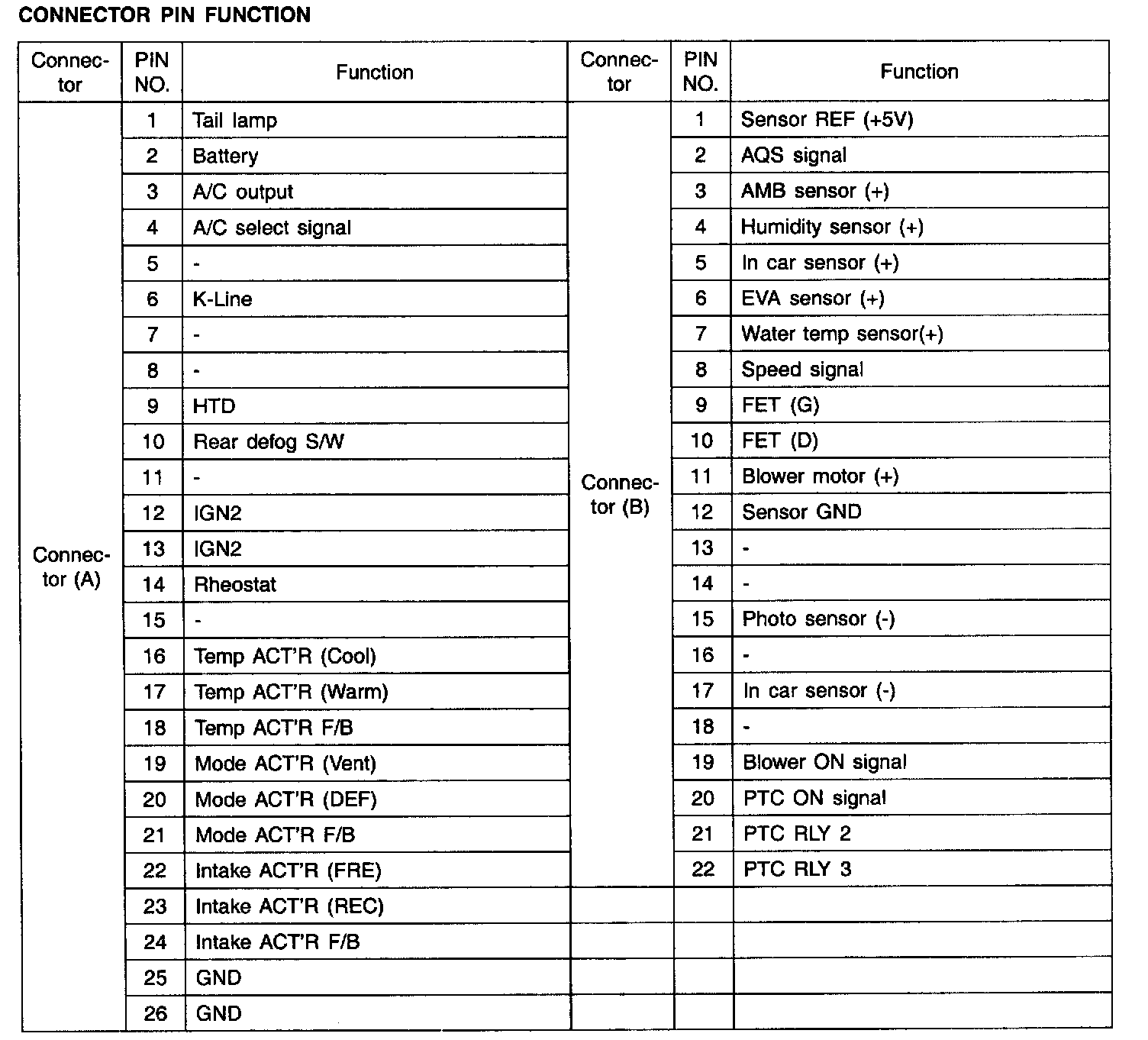

Connector Pin Function:
