Home >> Kia >> 2005 >> Spectra5 L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Diagrams

Evaporative Emissions System: Diagrams

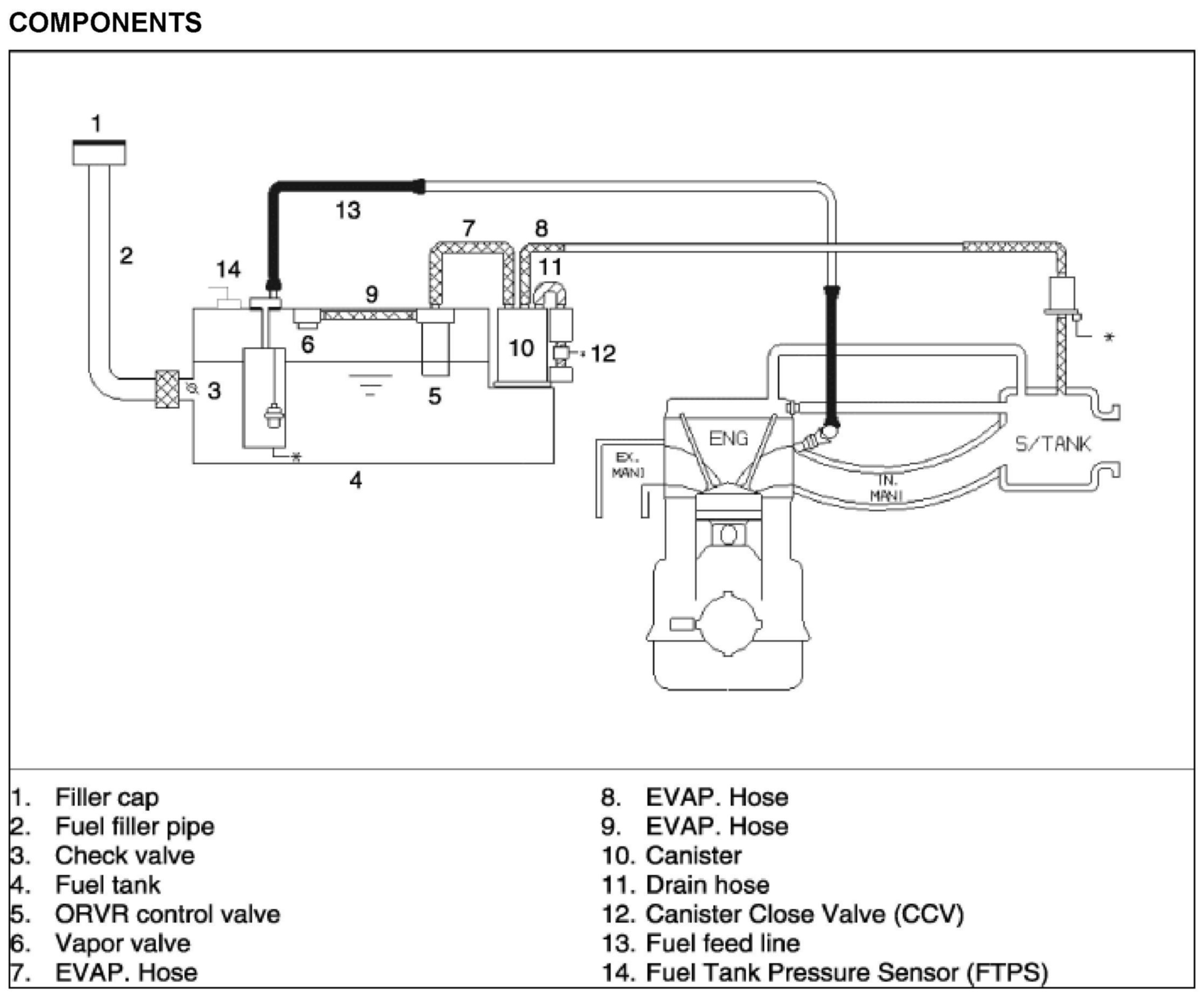

Components:
