Lighting Switch-Auto Light (Connector "1")

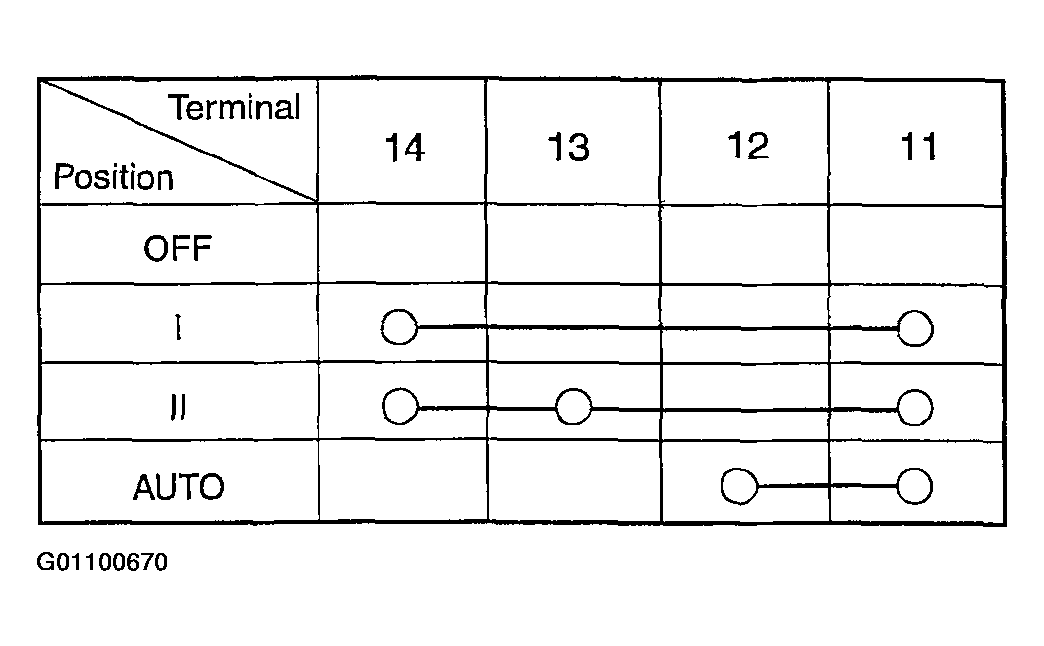

Fig 1: Checking Lighting Switch-Auto Light
G01100670Courtesy of KIA MOTORS AMERICA, INC.
