Automatic Transmission/Transaxle

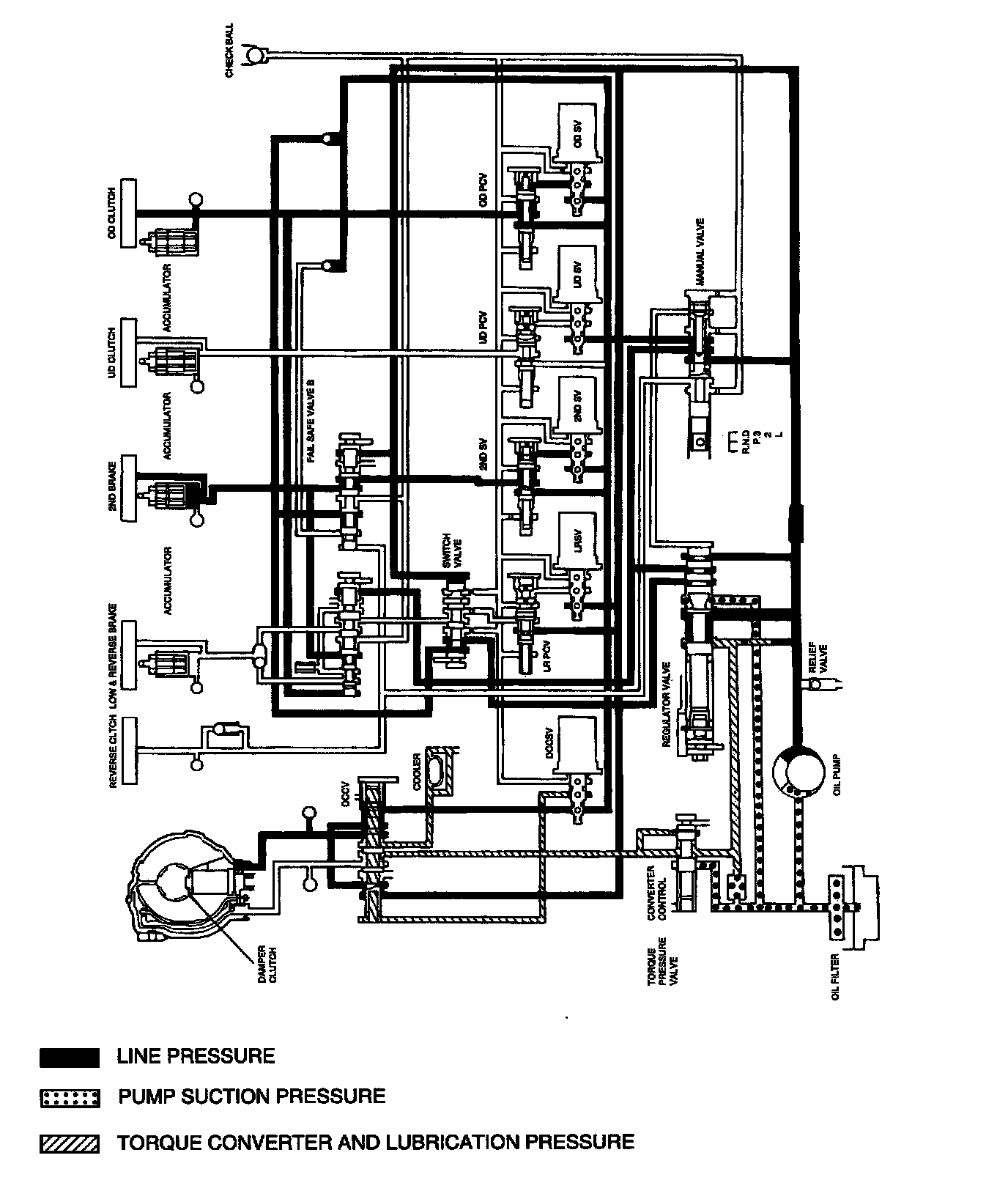

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT (Part 1):

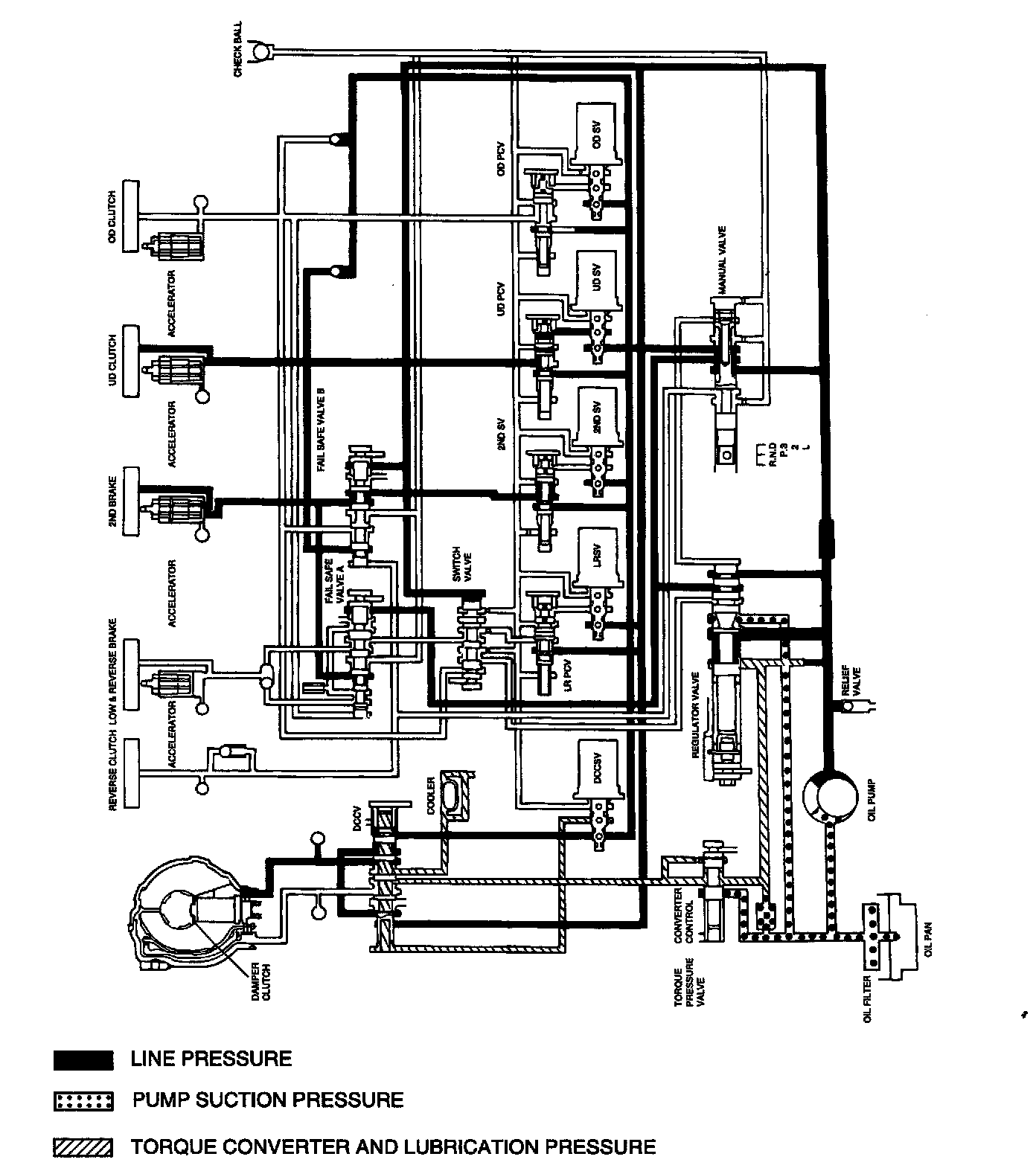

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT (Part 2):

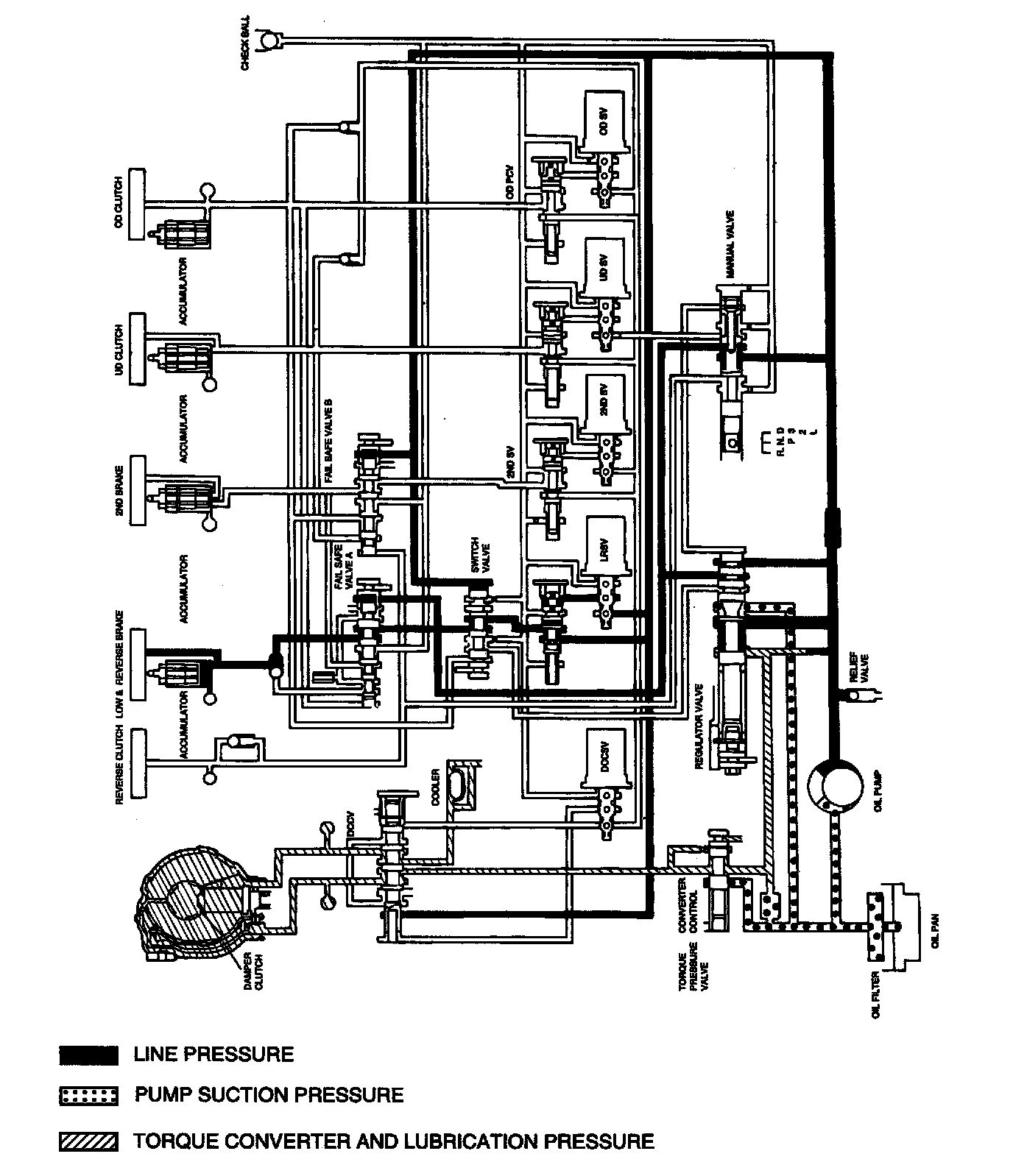

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT (Part 3):

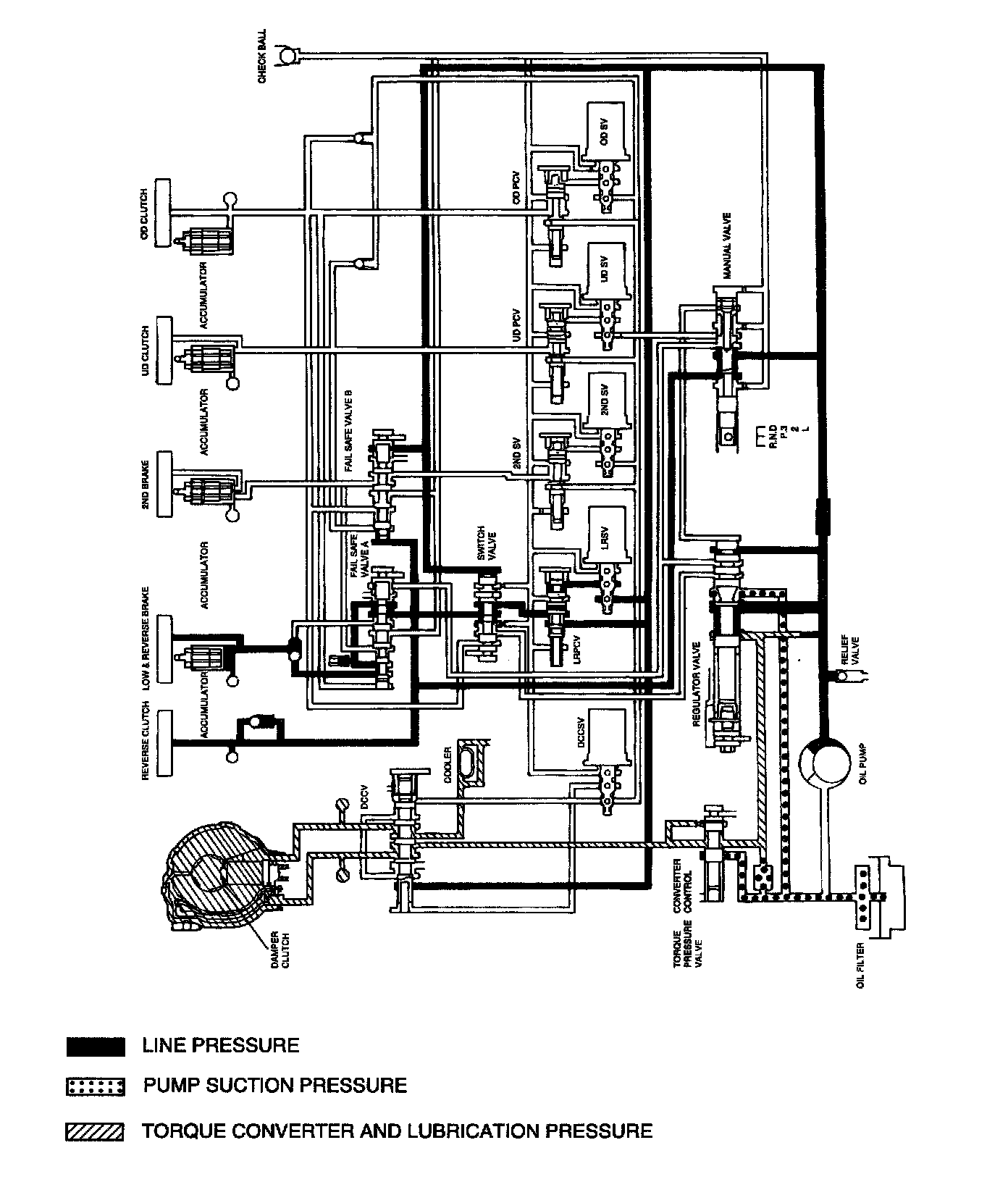

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT (Part 4):

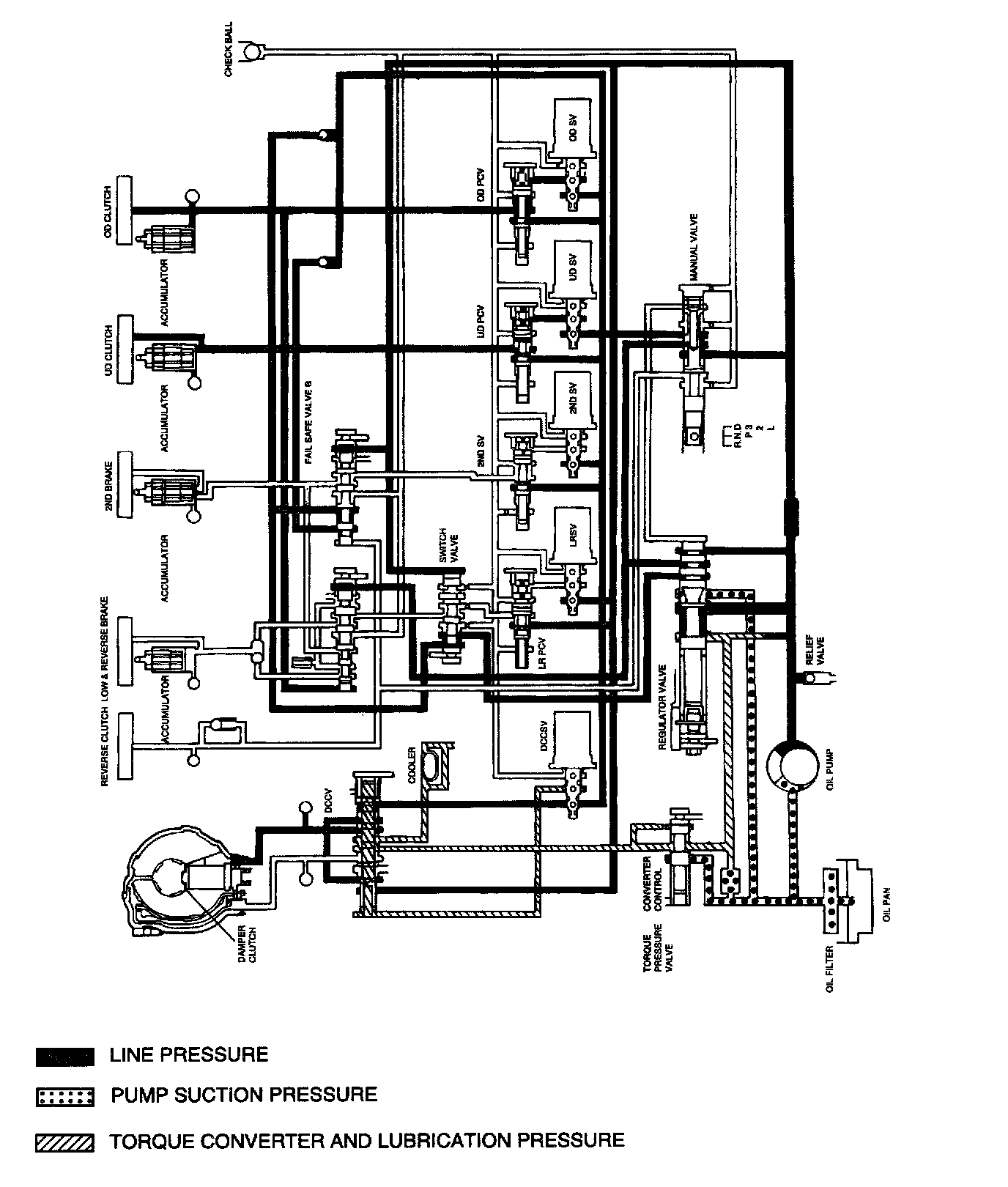

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT (Part 5):

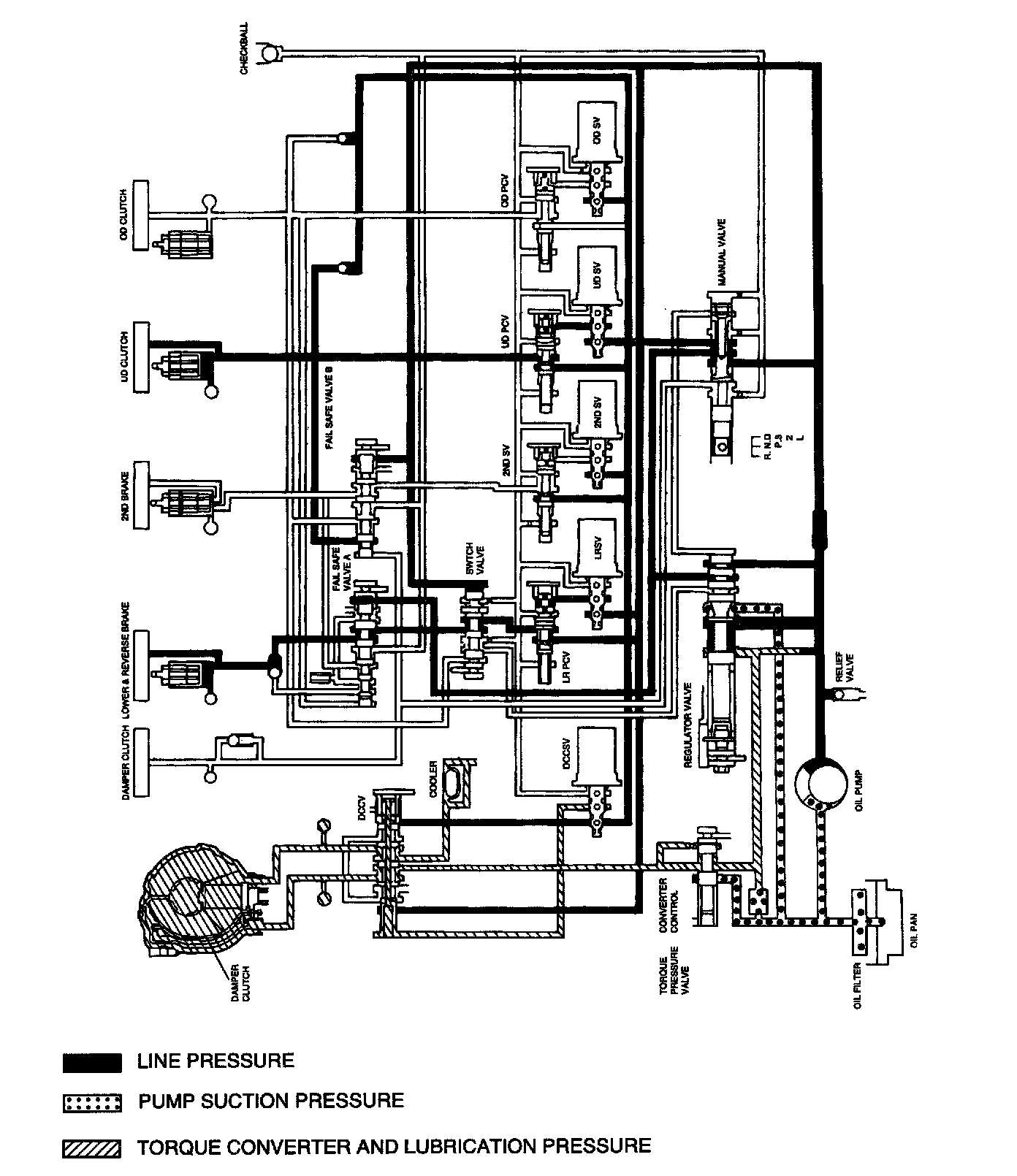

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT (Part 6):
