Home >> Kia >> 2004 >> Spectra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Lighting and Horns >> System Diagram

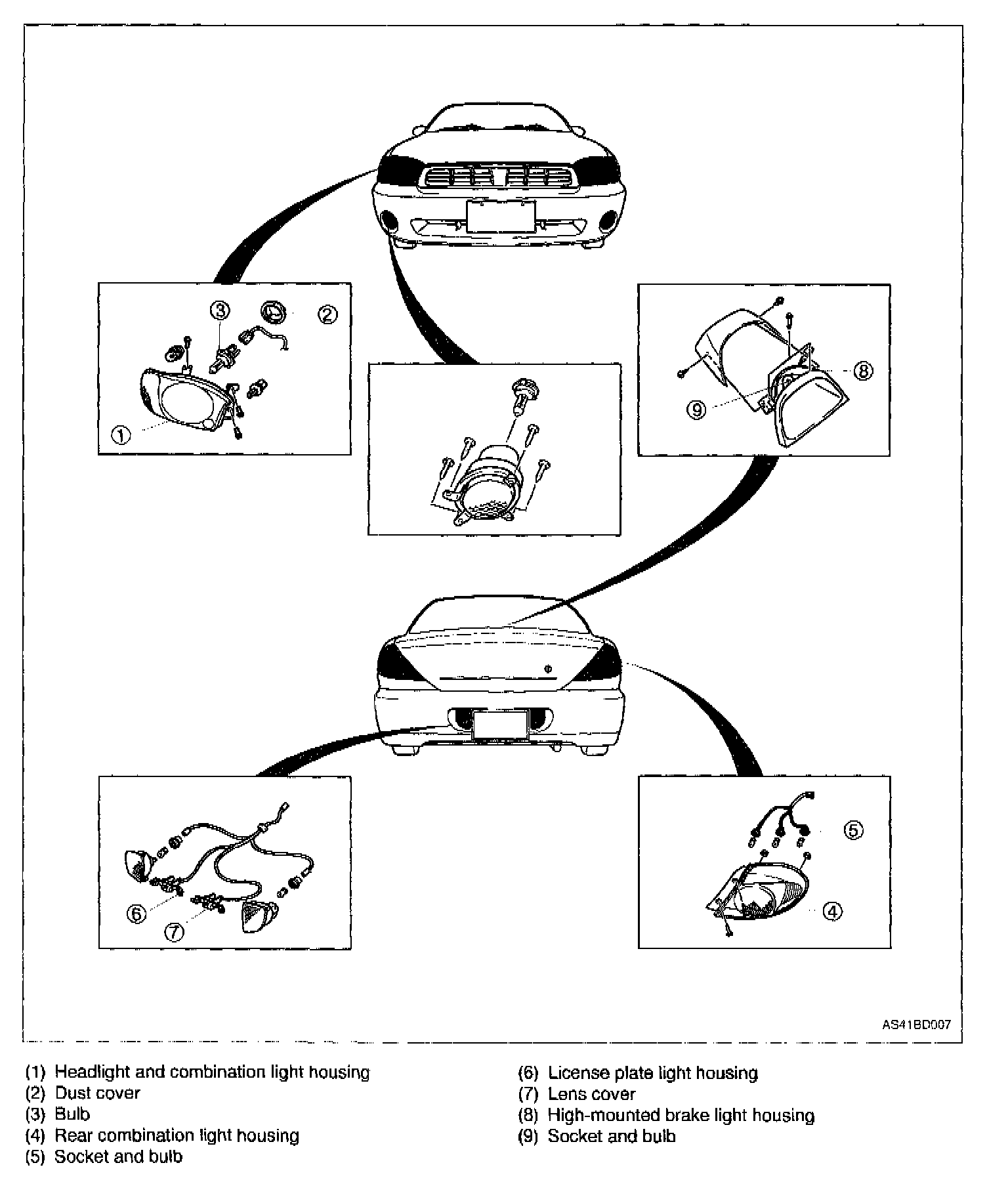

System Diagram

Exterior Lights - Description And Operation:

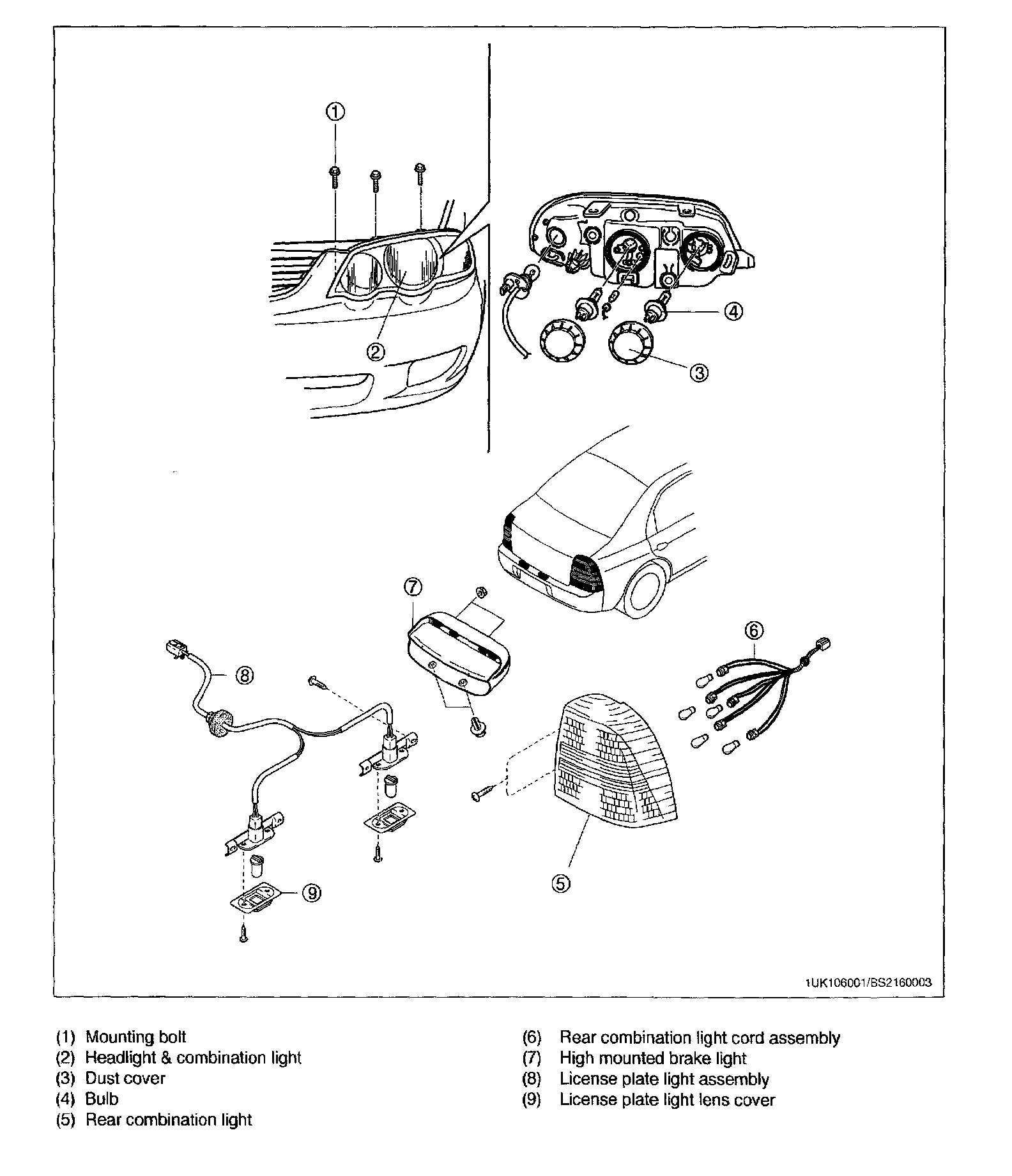

Exterior Lights:
