Home >> Kia >> 2004 >> Spectra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Power Window Switch

Power Window Switch

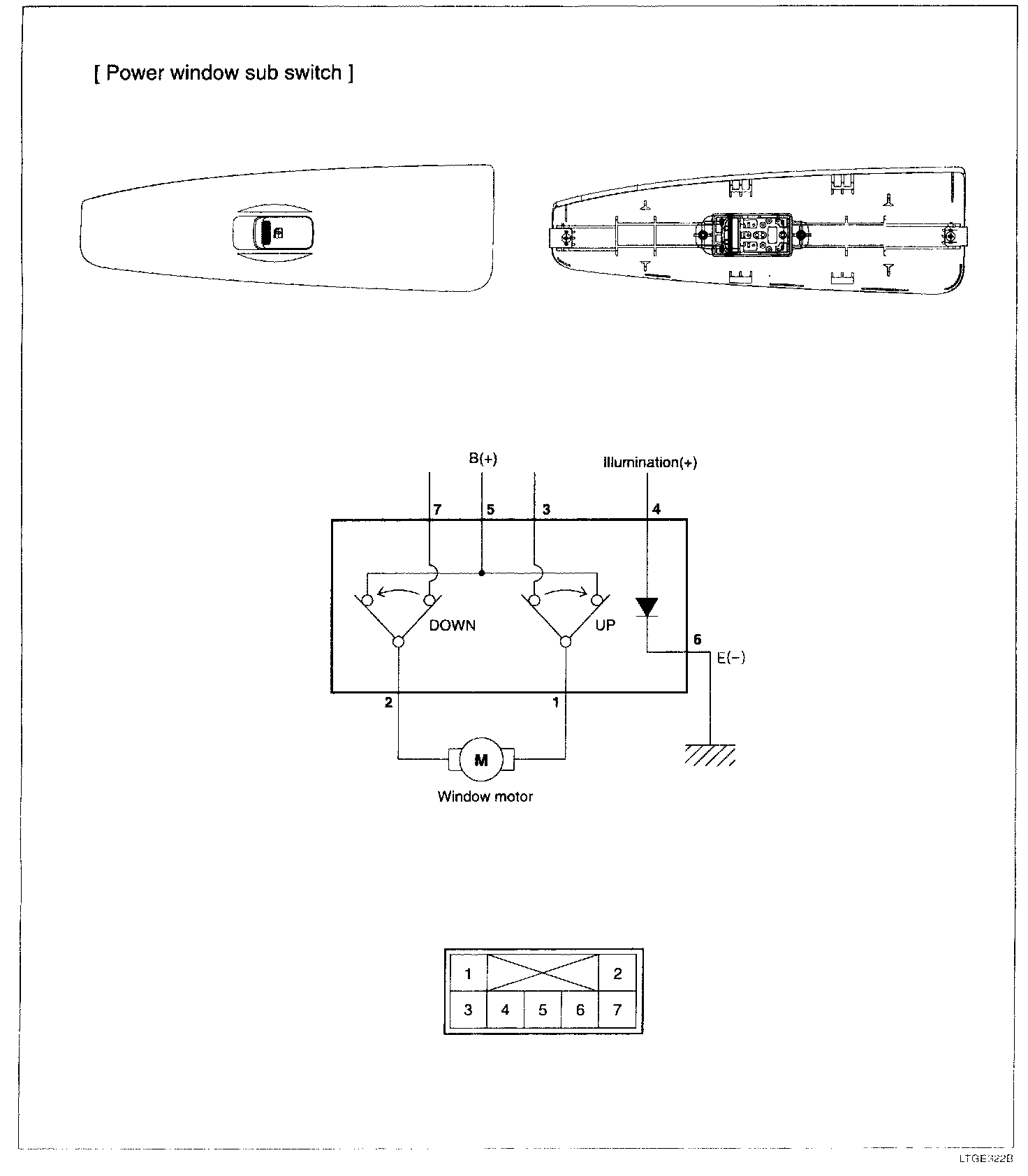

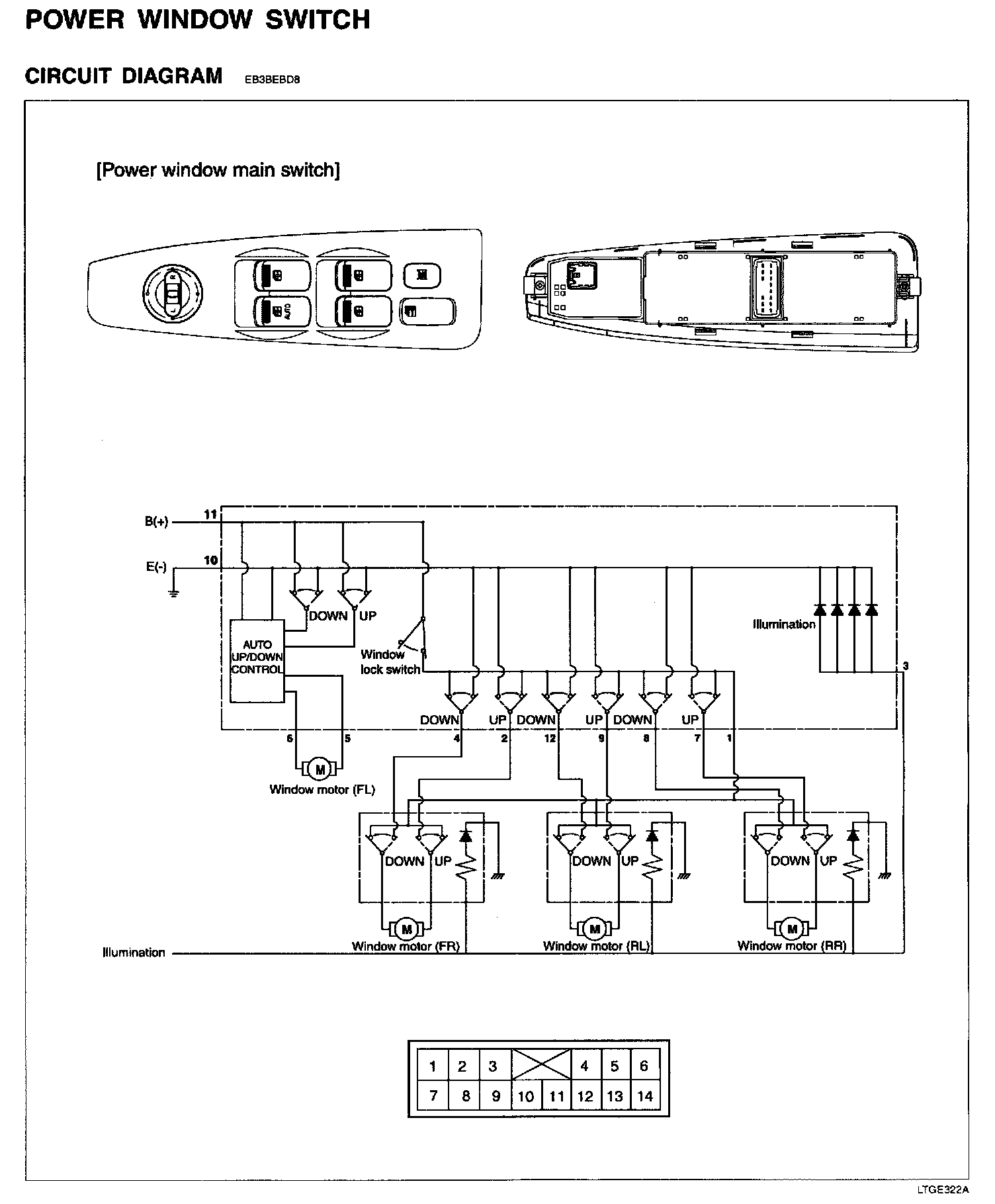

Power Window Switch - Circuit Diagram:
