I-1a

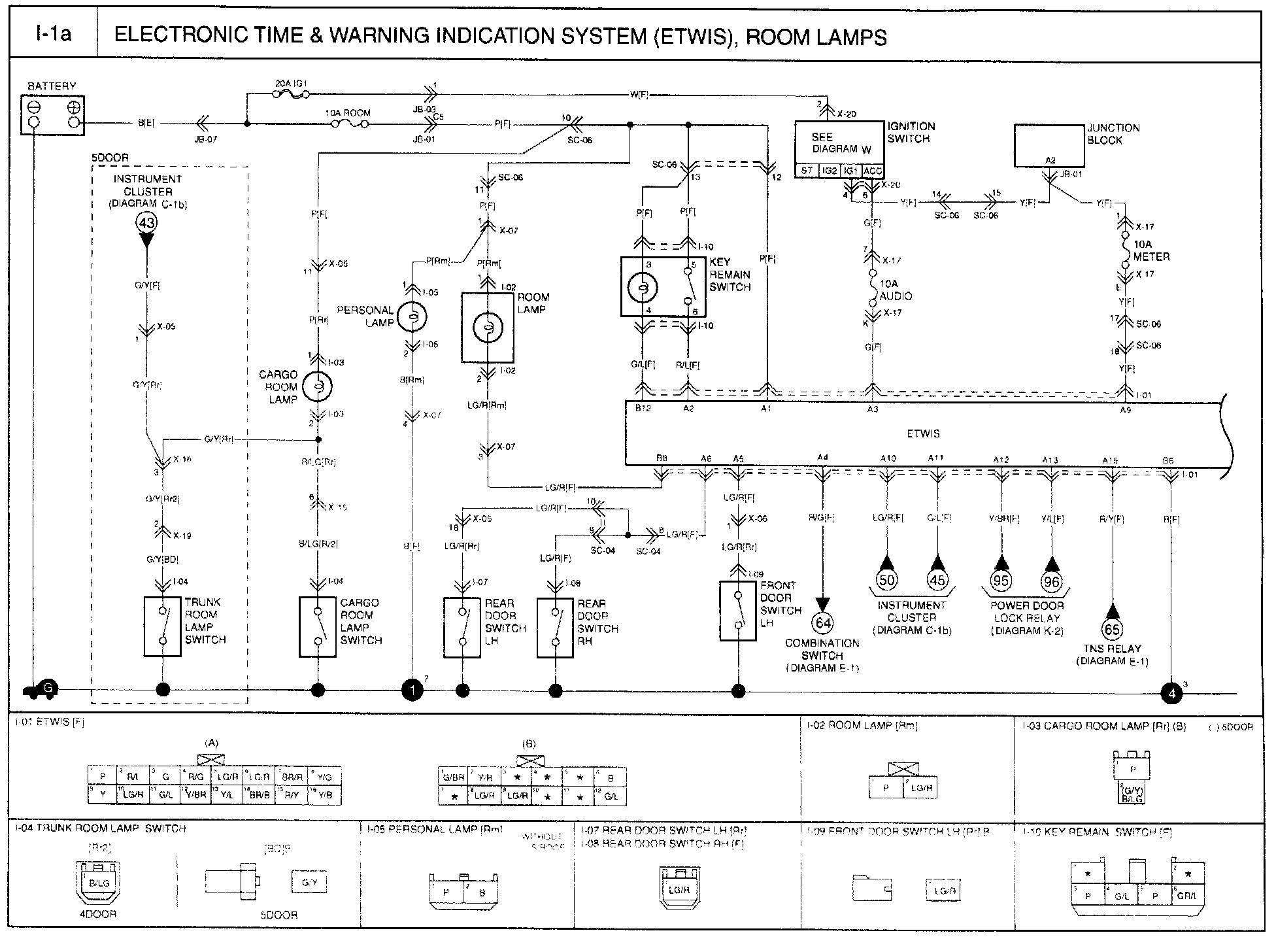

Diagram I-1a:

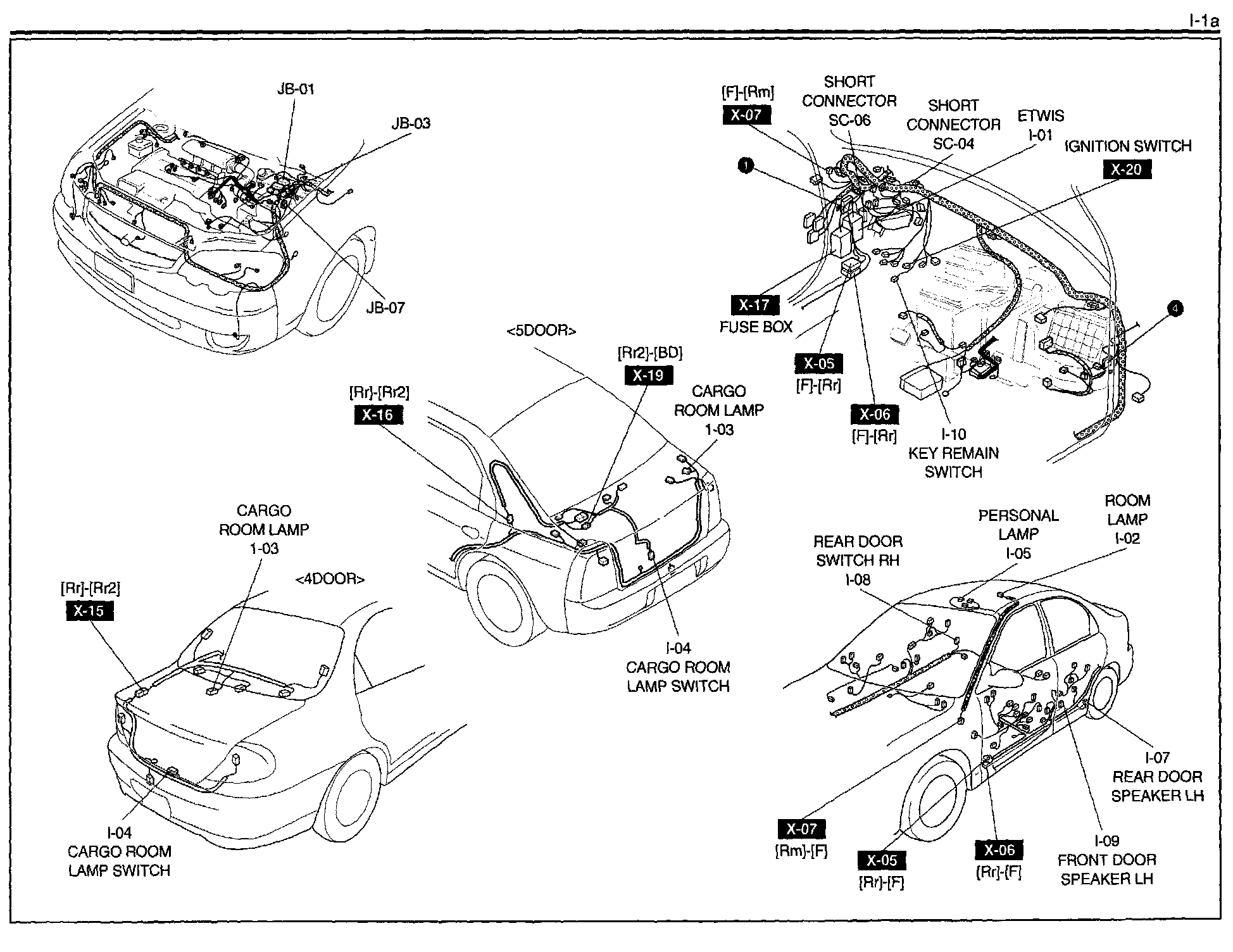

Routing View I-1a:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
