Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems
O - Anti-lock Brake System Connectors:

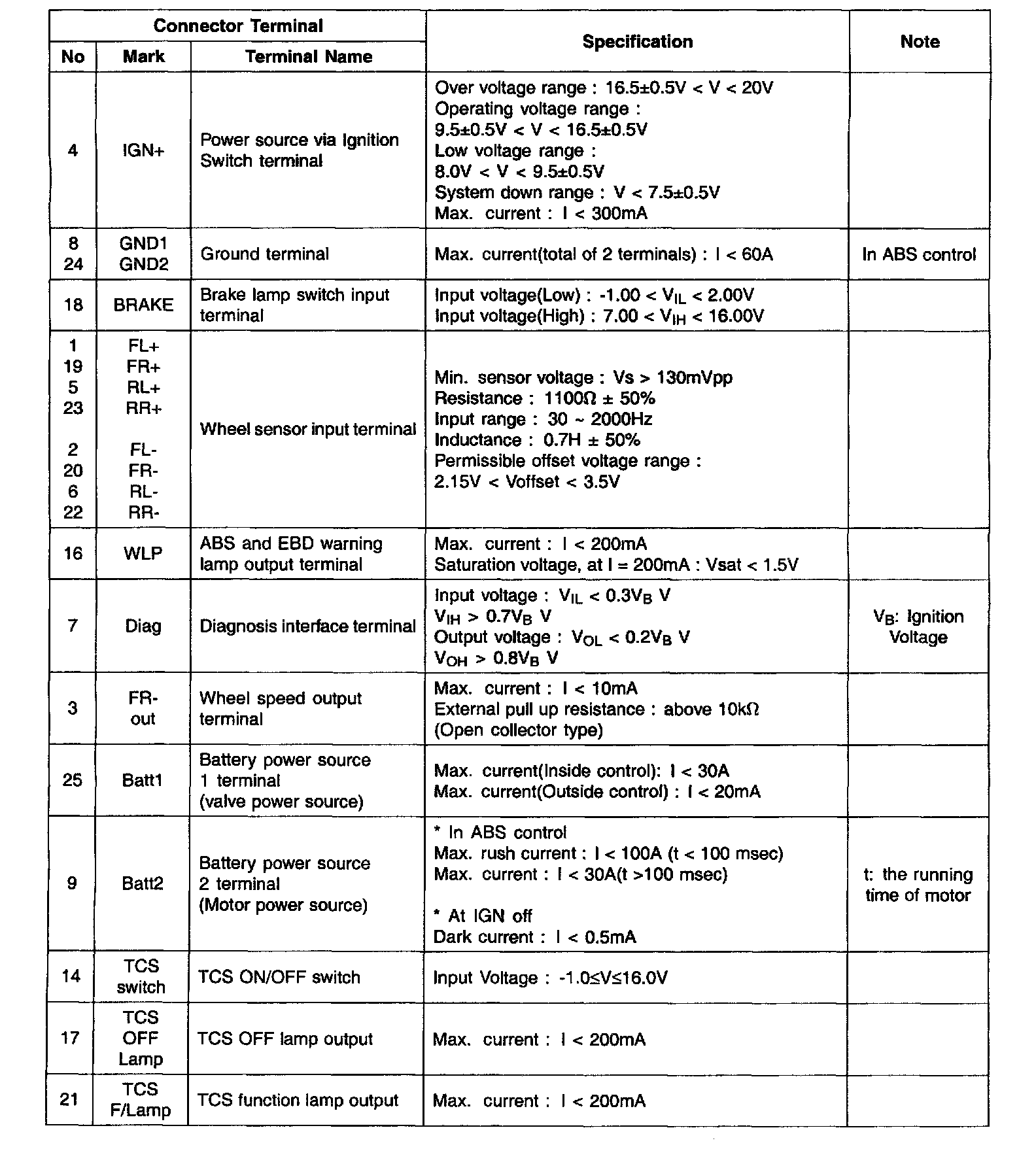

HECU INPUT/OUTPUT SPECIFICATION (ABS&TCS):
