Home >> Kia >> 2004 >> Sorento V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> ATT (Active Torque Transfer)

ATT (Active Torque Transfer)

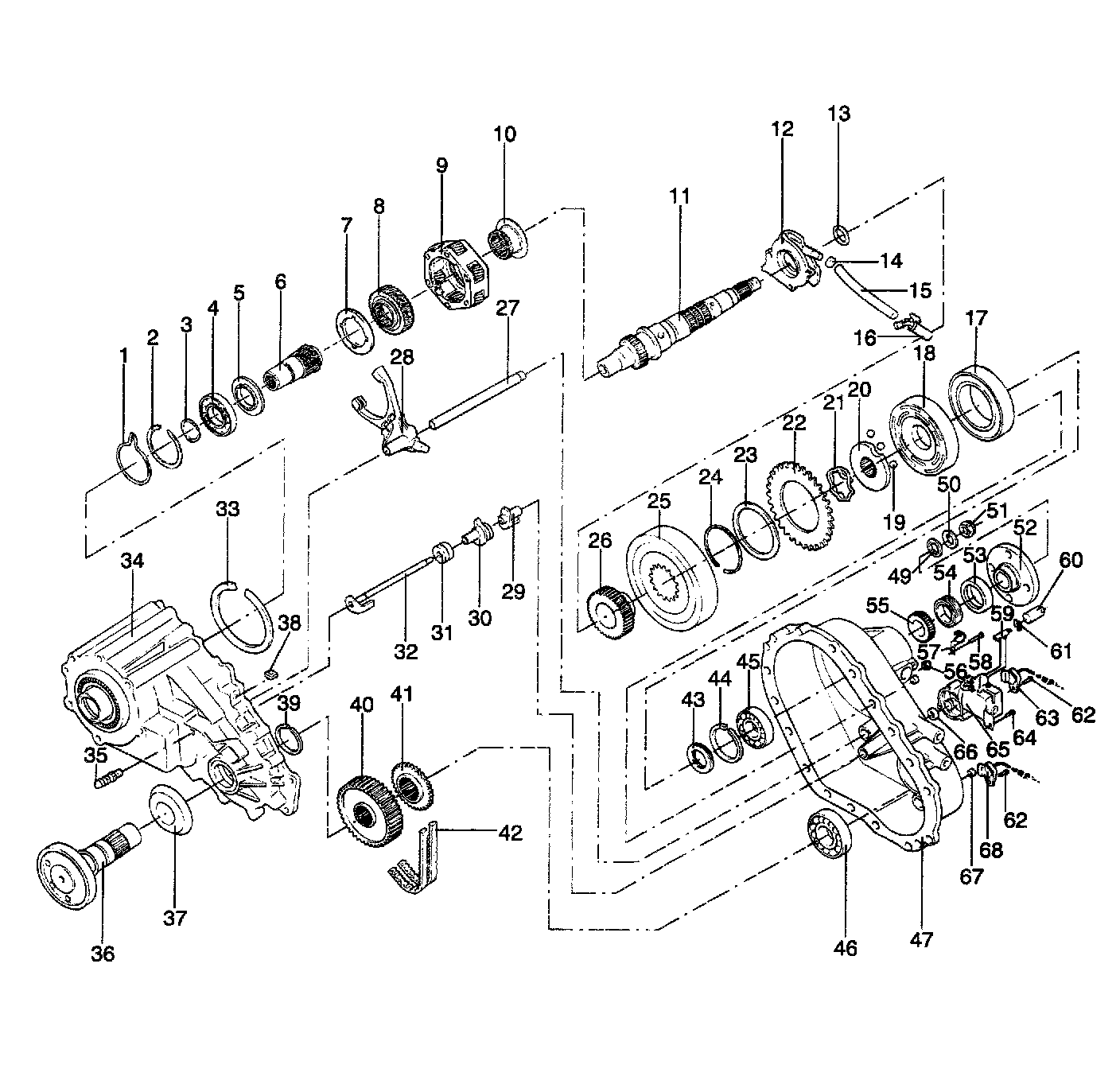

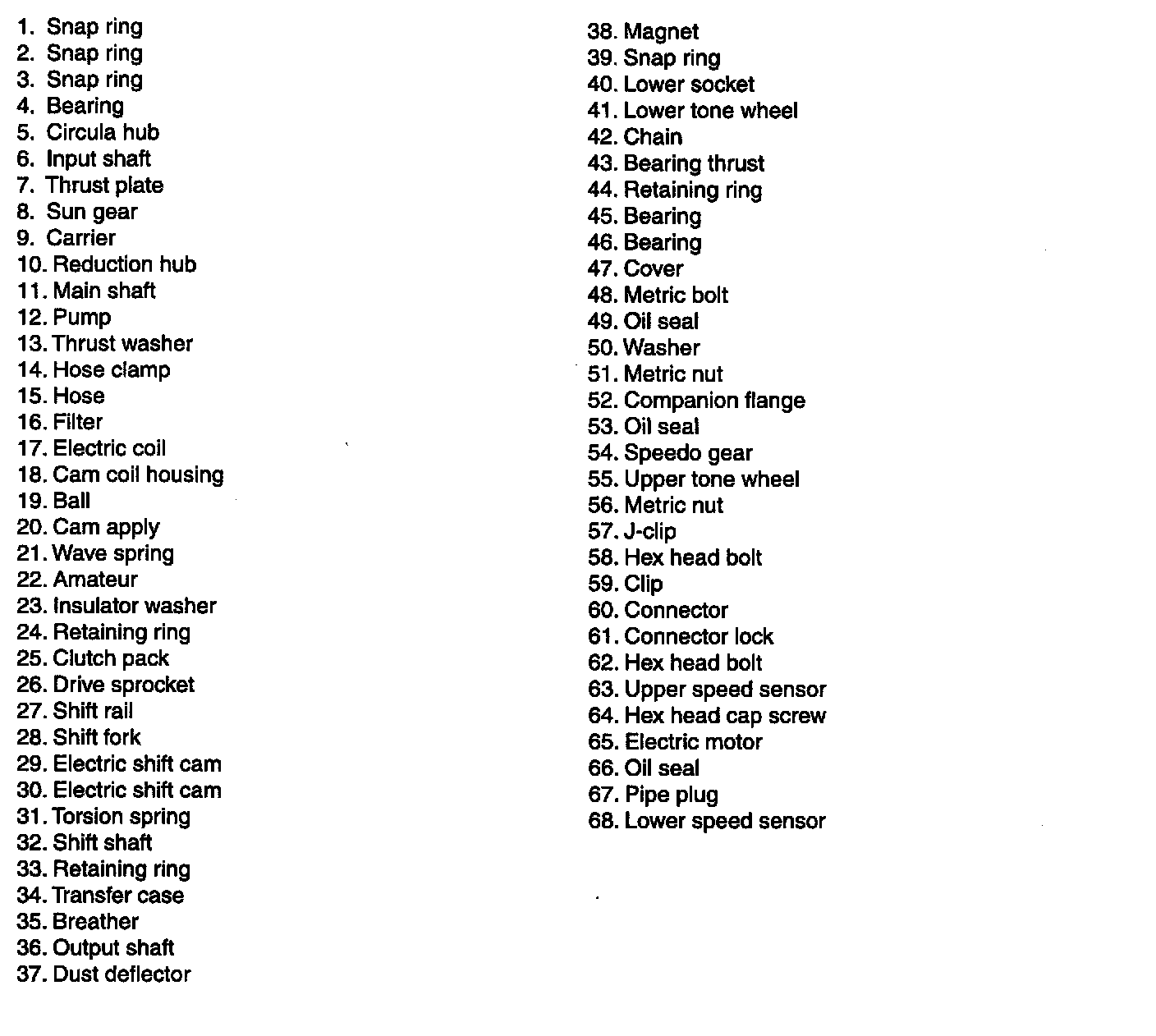

COMPONENTS (1)

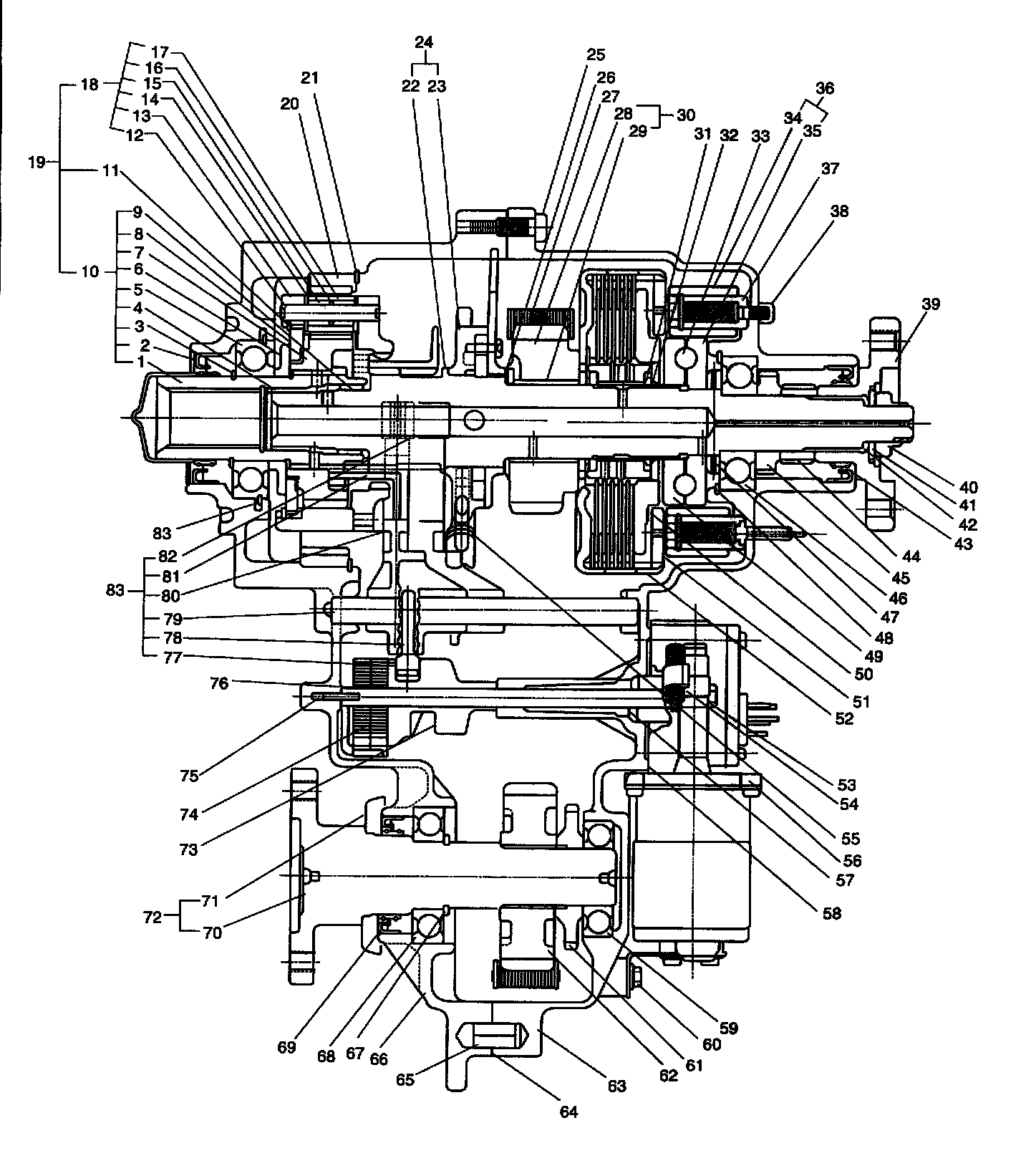

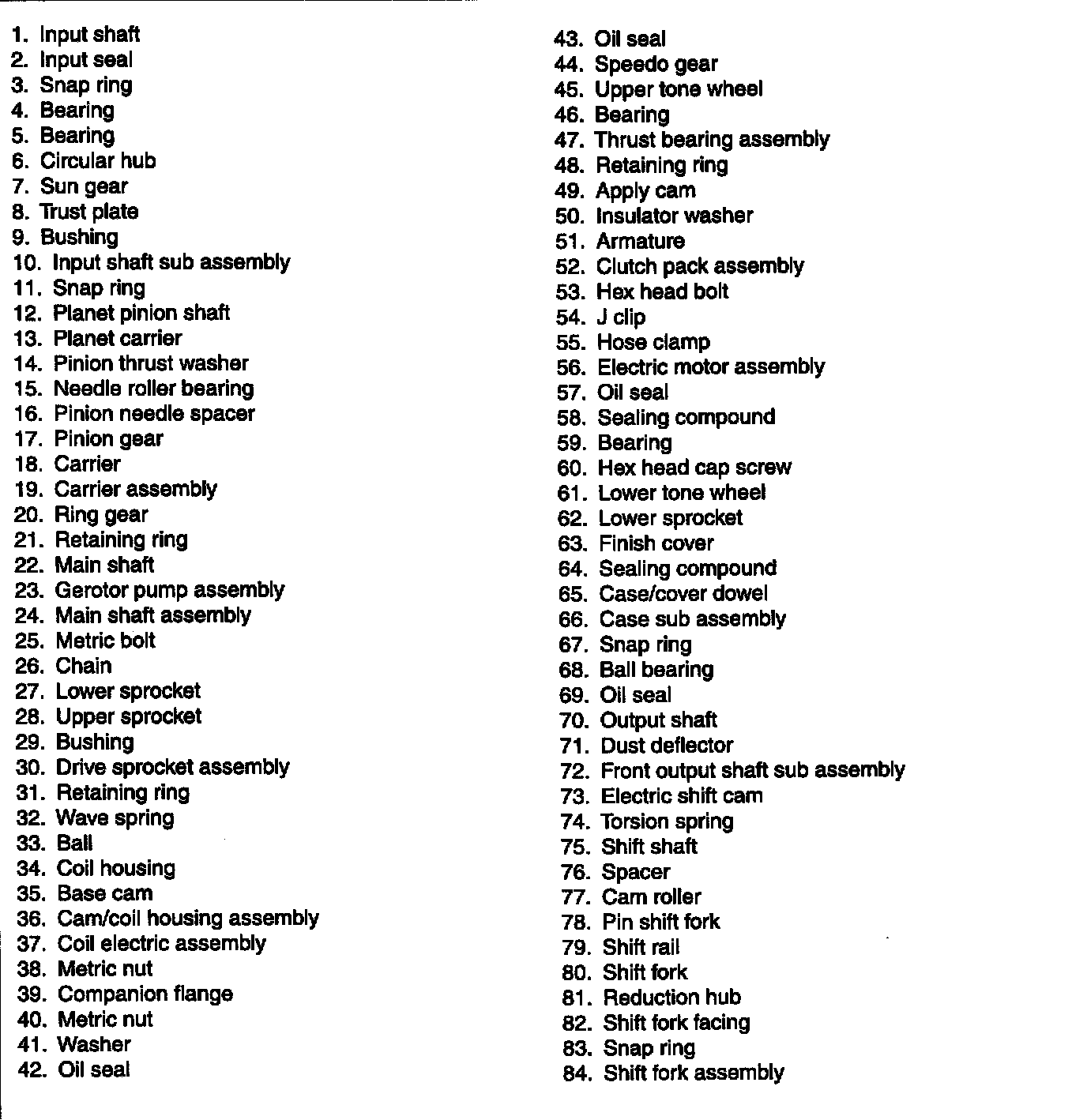

COMPONENTS (2)
