System Specifications

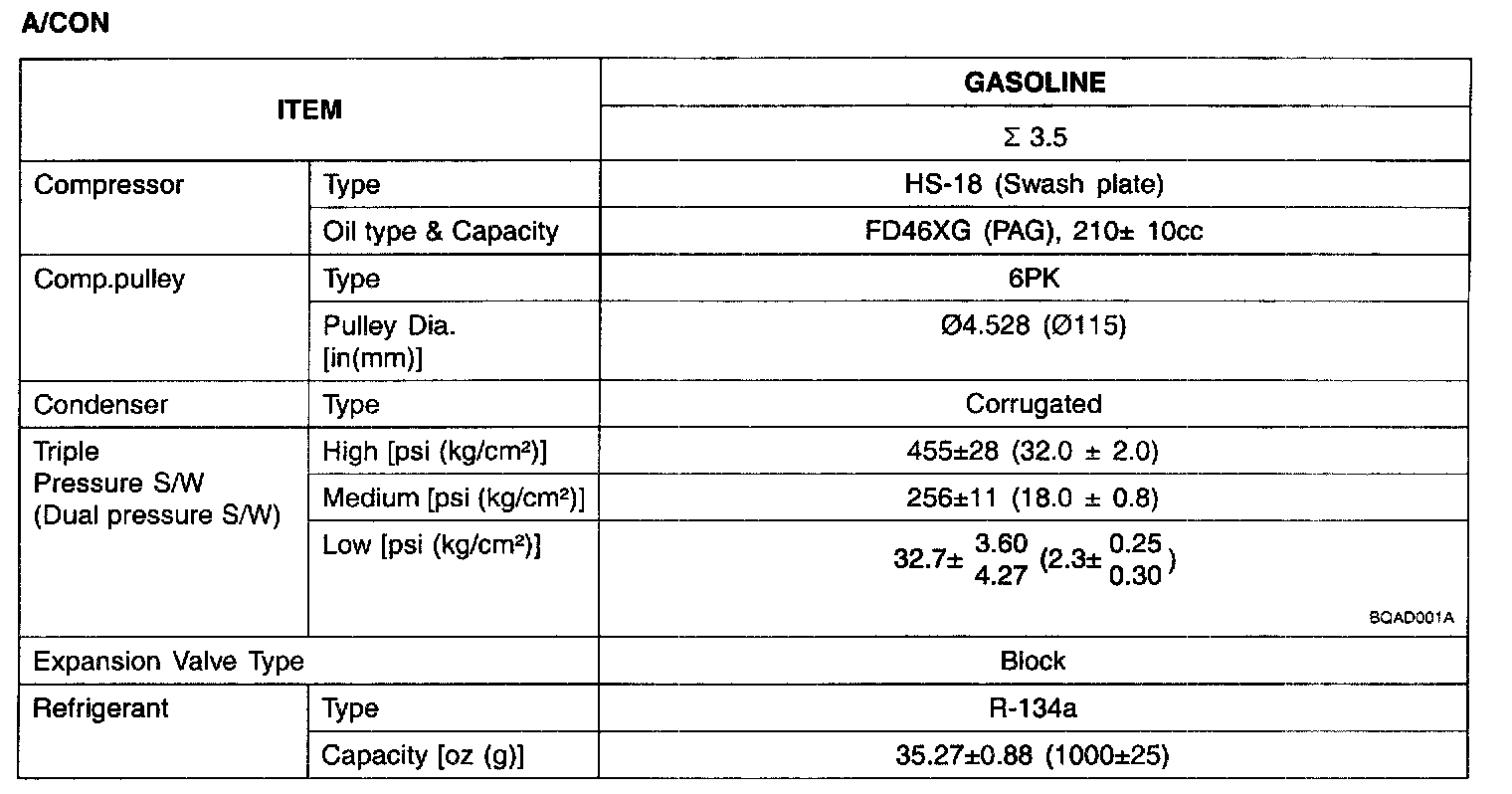

Specifications - A/CON:



Specifications - Blower And Evaporator Unit (Front):



Specifications - Blower And Evaporator Unit (Rear):



Specifications - Heater Unit:
